CFX3 Protective Covers Installation
• Damage to the product resulting from mechanical
influences and excess voltage
• Alterations to the product without express permission
from the manufacturer
• Use for purposes other than those described in the
operating manual
Dometic Corporation reserves the right to modify
appearances and specifications without notice.
3 Installation
This section describes how to attach a protective cover
to a CFX3 cooler.
I
The images used in this document are for reference
purposes only. Measurements may vary ±0.38 in.
(10 mm).
3.1 Preparing the Protective Cover
q
w
e
r

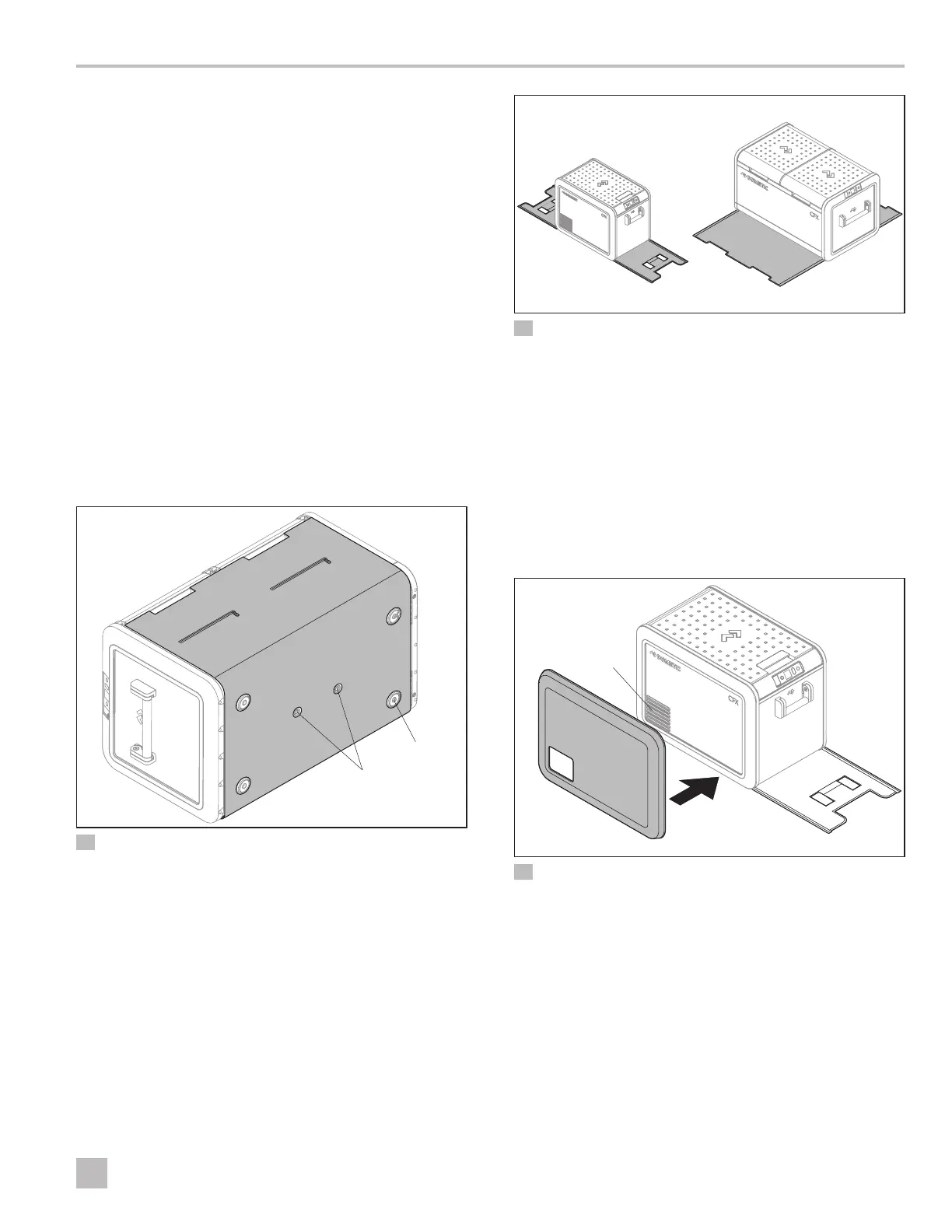

1 Aligning the Cover and Feet (CFX3 75 shown)
q
Protective Cover
e
Feet
w
Cooler
r
Drain Holes
1. Find a clean, flat place to prepare the protective
cover.
2. Making sure the lid of the cooler is secure, place the
cooler on its side.
3. Align the foot holes and drain holes on the
protective cover with the feet and drains on the
bottom of the cooler.
q
q
w w
2 Standing the Cooler Up (CFX3 45 and 75 shown)
q
Cooler
w
Protective Cover
4. Stand the cooler up, keeping the protective cover in
alignment with the holes underneath.
3.2 Attaching the Protective Cover
Use this section to find instructions for attaching the
protective cover to a specific CFX3 cooler model.
3.2.1 For CFX3 35 and CFX3 45 Coolers
q
w
e
3 Aligning the Molded Panel with the Cooler (CFX3 45 shown)
q
Molded Panel
e
Ventilation Holes
w
Cooler
1. Align the molded panel with the ventilation holes on
one side of the cooler.
2. Keeping the zipper clear, fit the molded panel to
the side of the cooler, starting at the bottom and
working up toward the top.
3. Repeat steps 1 and 2 for the other side.
