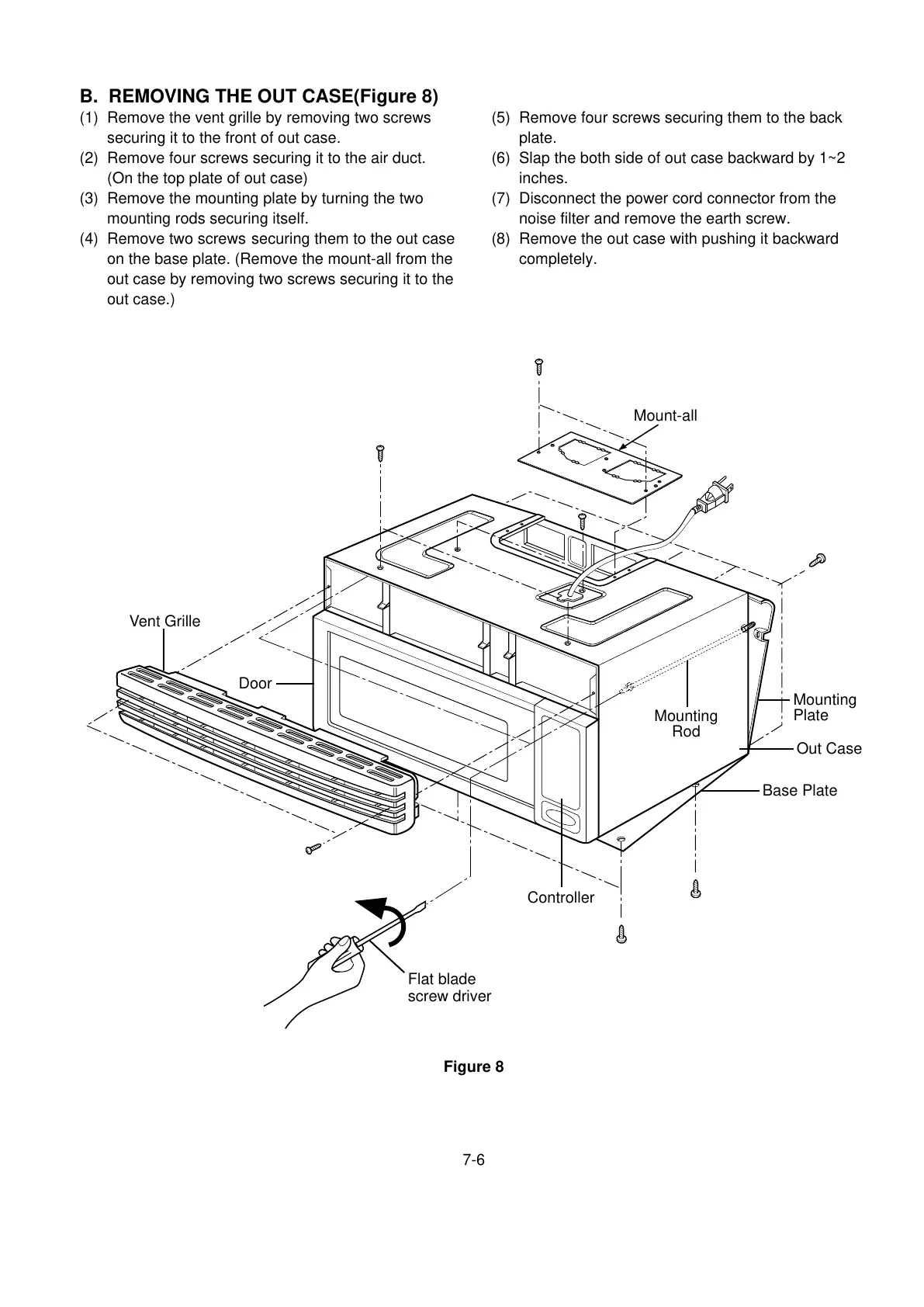

B. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the front of out case.
(2) Remove four screws securing it to the air duct.
(On the top plate of out case)
(3) Remove the mounting plate by turning the two
mounting rods securing itself.
(4) Remove two screws securing them to the out case
on the base plate. (Remove the mount-all from the
out case by removing two screws securing it to the
out case.)
(5) Remove four screws securing them to the back
plate.
(6) Slap the both side of out case backward by 1~2
inches.
(7) Disconnect the power cord connector from the
noise filter and remove the earth screw.
(8) Remove the out case with pushing it backward
completely.
