Dometic DOTR12CSIV - Removing the Turntable Motor

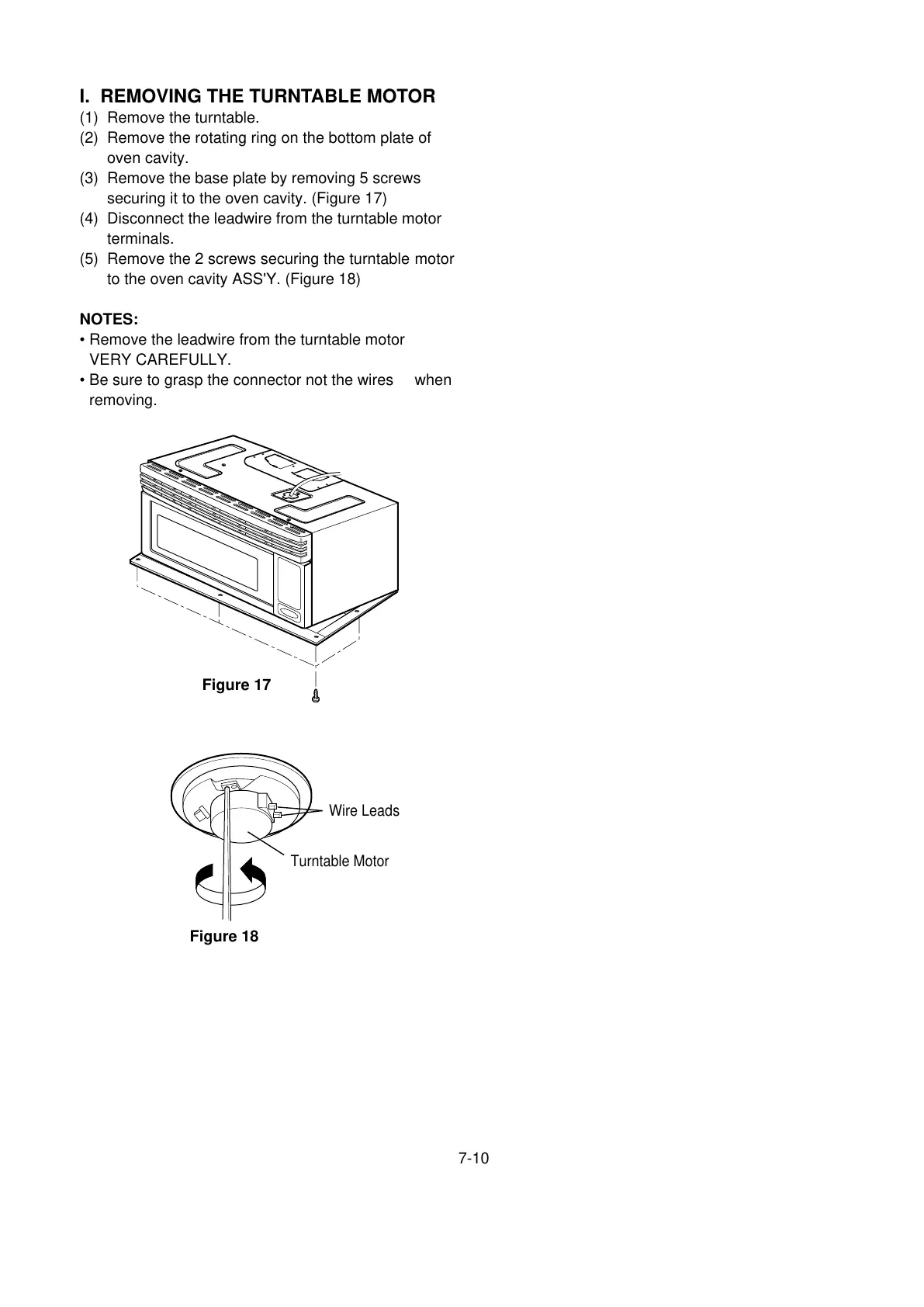

I. REMOVING THE TURNTABLE MOTOR
(1) Remove the turntable.
(2) Remove the rotating ring on the bottom plate of
oven cavity.
(3) Remove the base plate by removing 5 screws
securing it to the oven cavity. (Figure 17)
(4) Disconnect the leadwire from the turntable motor
terminals.
(5) Remove the 2 screws securing the turntable motor
to the oven cavity ASS'Y. (Figure 18)
NOTES:
• Remove the leadwire from the turntable motor
VERY CAREFULLY.
• Be sure to grasp the connector not the wires when
removing.
7-10
Wire Leads
Turntable Motor
Figure 18
Figure 17
