Installation DRS
12
Installing in an existing opening

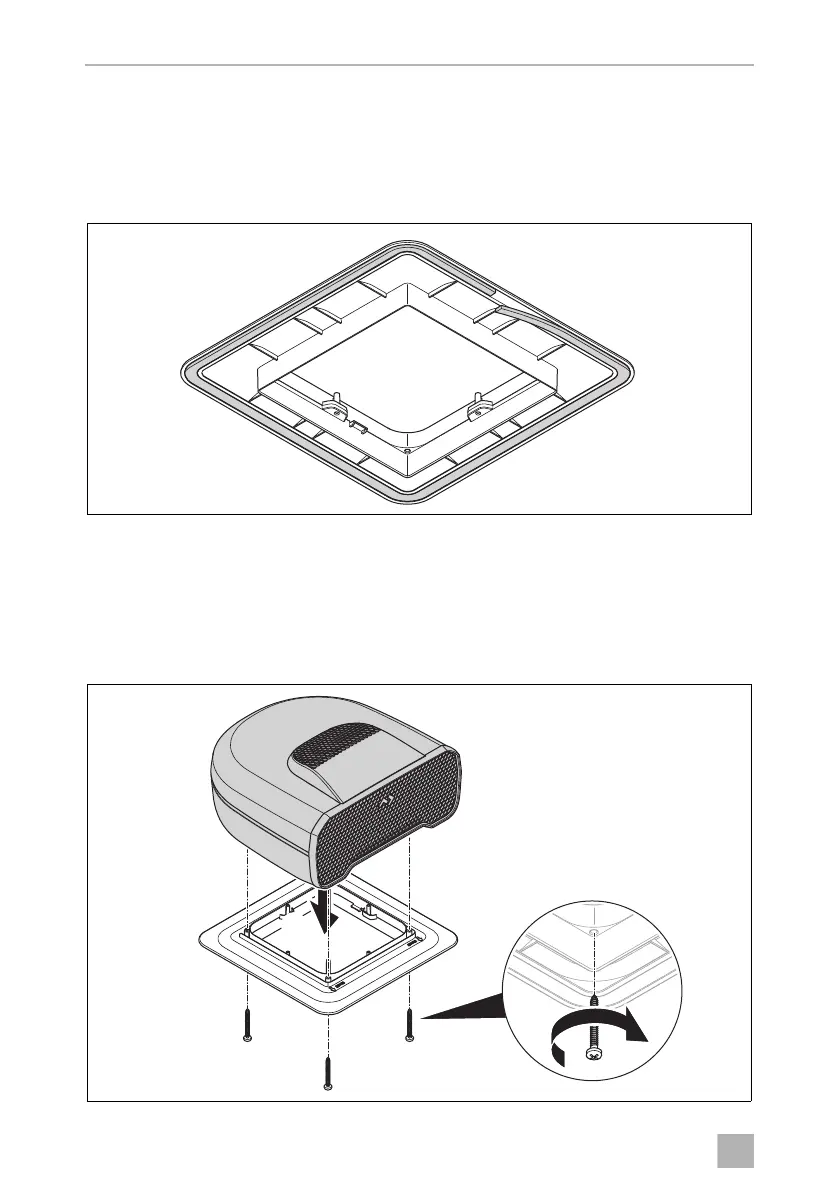

➤ Remove the backing paper of the self adhesive foam seal and fit onto the bottom
surface of the top roof flange. There is a slight recess on the outer perimeter for
the foam to be located. The foam seal will easily stretch to bend around the cor-
ners while staying flat:
➤ Ensure the arrows on the top surface are pointing to the front of the caravan.
➤ Position the top roof flange centrally within the opening and mark the two rear
corners on the roof.
➤ Remove the top roof flange and screw onto the DRS assembly in the four corners
using the 10G x 34 mm screws and tighten to a torque of 15 Nm:
DRS-IOM.book Seite 12 Freitag, 9. August 2019 9:48 09
