DRS Installation
13

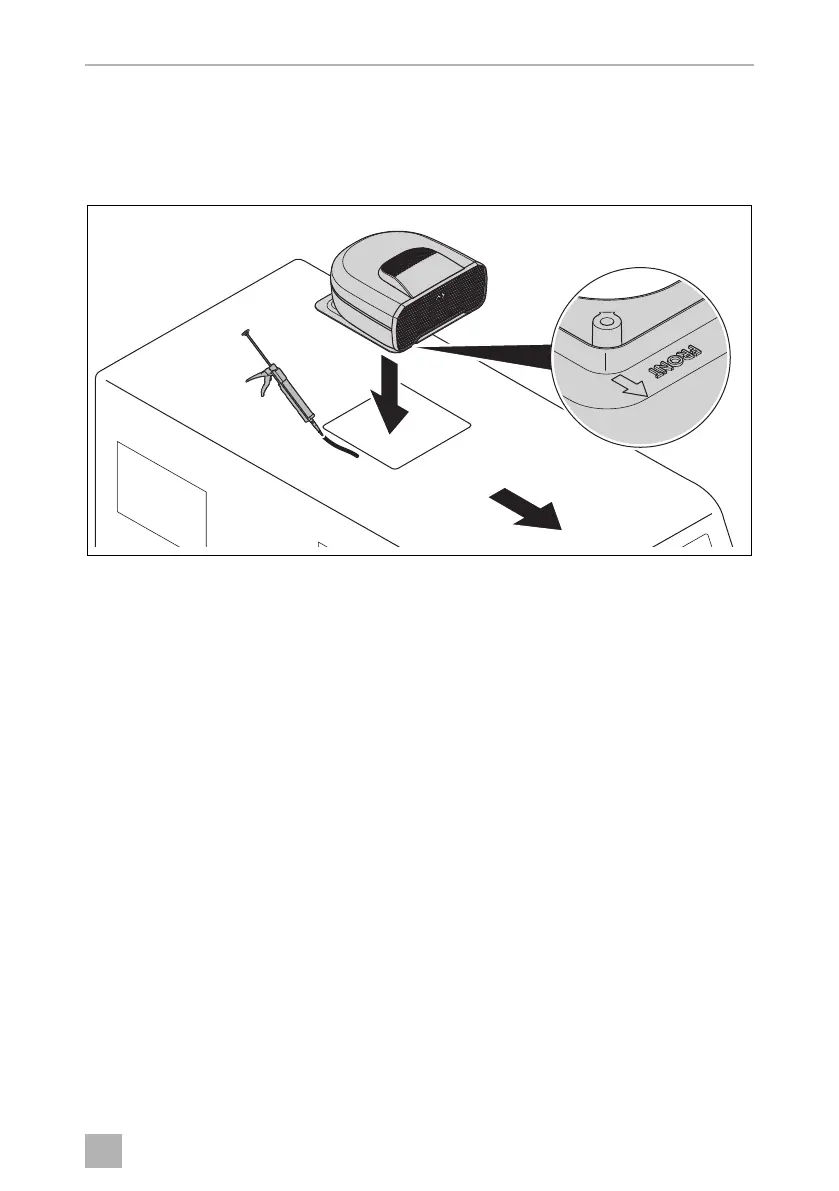

➤ Fit the top roof flange with the DRS assembly to the centre of the opening and
seal using silicone adhesive around the perimeter. It is permitted to apply silicone
over the seal as this will not affect the seal function and will improve sealing.
➤ Place the DRS assembly onto the top roof flange on the caravan roof:
➤ Before fitting the bottom roof flange, choose the most suitable orientation for the
hinged cover for easy access (hinges can face either the front or rear of the cara-
van).
➤ From inside the caravan, check the spacer length required by holding the bottom
roof flange in place and measuring the distance between the bottom roof flange
and top roof flange screw boss. Choose the combination of 10 mm and/or 5 mm
spacers so that the total length of the stacked spacers is 5 mm shorter than the
gap. This is to ensure the bottom roof flange and top roof flange deform suffi-
ciently to clamp on the roof.
