Decor Panel
Measurements
Thickness 0,4 mm
Changing the decor panel
4.10
4.10.1
4.10.2
H x W (mm)
HiPro 3000 492 x 294,5
HiPro 4000 524 x 311,5
HiPro 6000 533 x 376,5

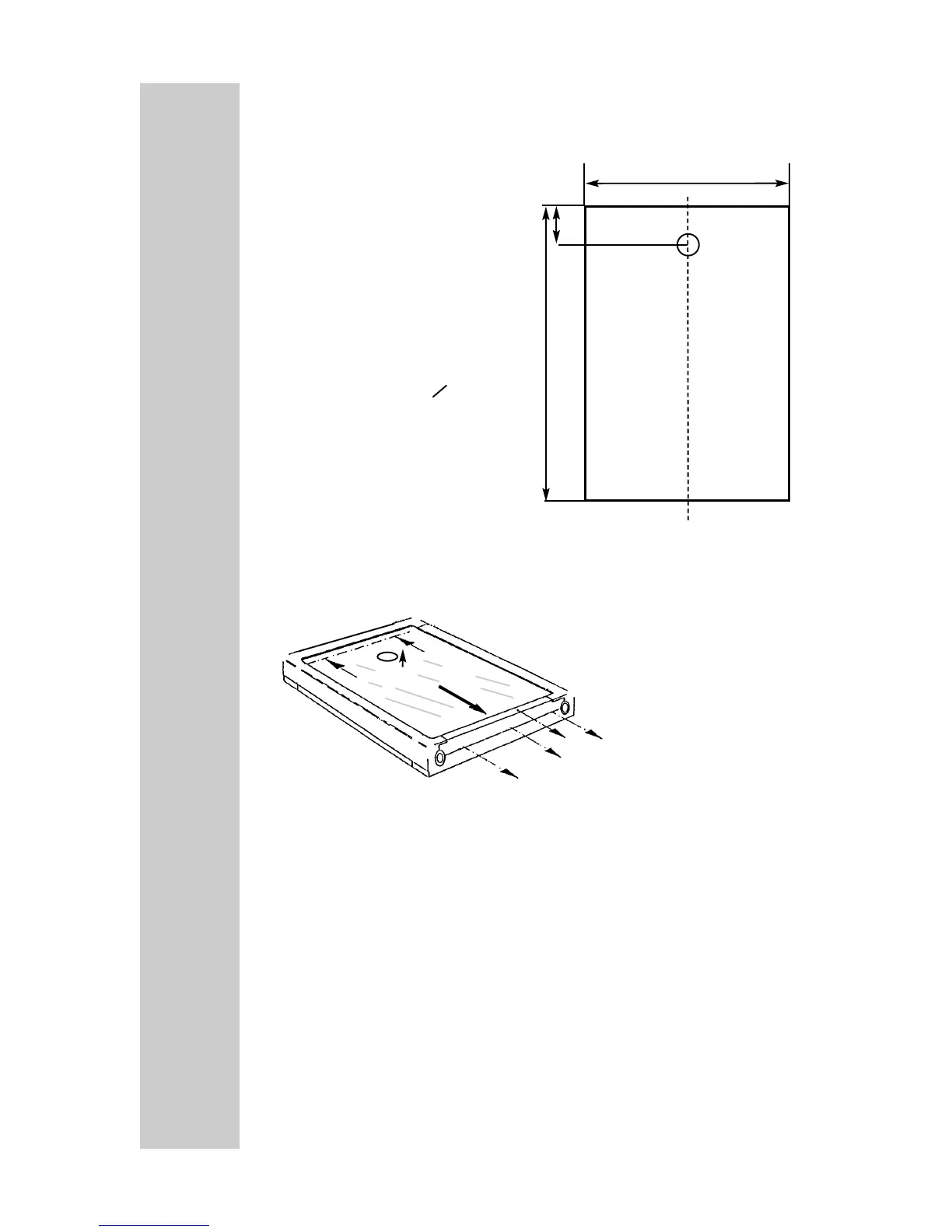

Hole for door lock (a)
diameter O 23,5 mm
distance from the edge (h) 62 mm
W
H
h
a
- Detach the lower door hinge and pull the door out (see also "4.9").
- Remove the holder for the lock (A) (mounted).
- Detach the lower frame section (B) (not screwed) and remove.
- Slightly bend the decorative panel (C) and pull it out of the door frame.
- Push in a new decorative panel with the upper edge running exactly
parallel to the upper part of the frame.
- Place the frame section (B) on and press firmly (clip in)
- Place the door onto the lower hinge, insert the hinge pin into the top of the
door, push the door with the hinge into the hinge receptacle at the bottom
and allow the hinge to notch. Insert the hinge pin in the door, push in
the door and let the hinge click in.
A
C
B
Remark (devices without doorlock):
- Additional installation of a door lock is possible (available from Dometic)
- In the door the position for the opening is prepared.
- Drill the hole in accordance to the drawing above.
