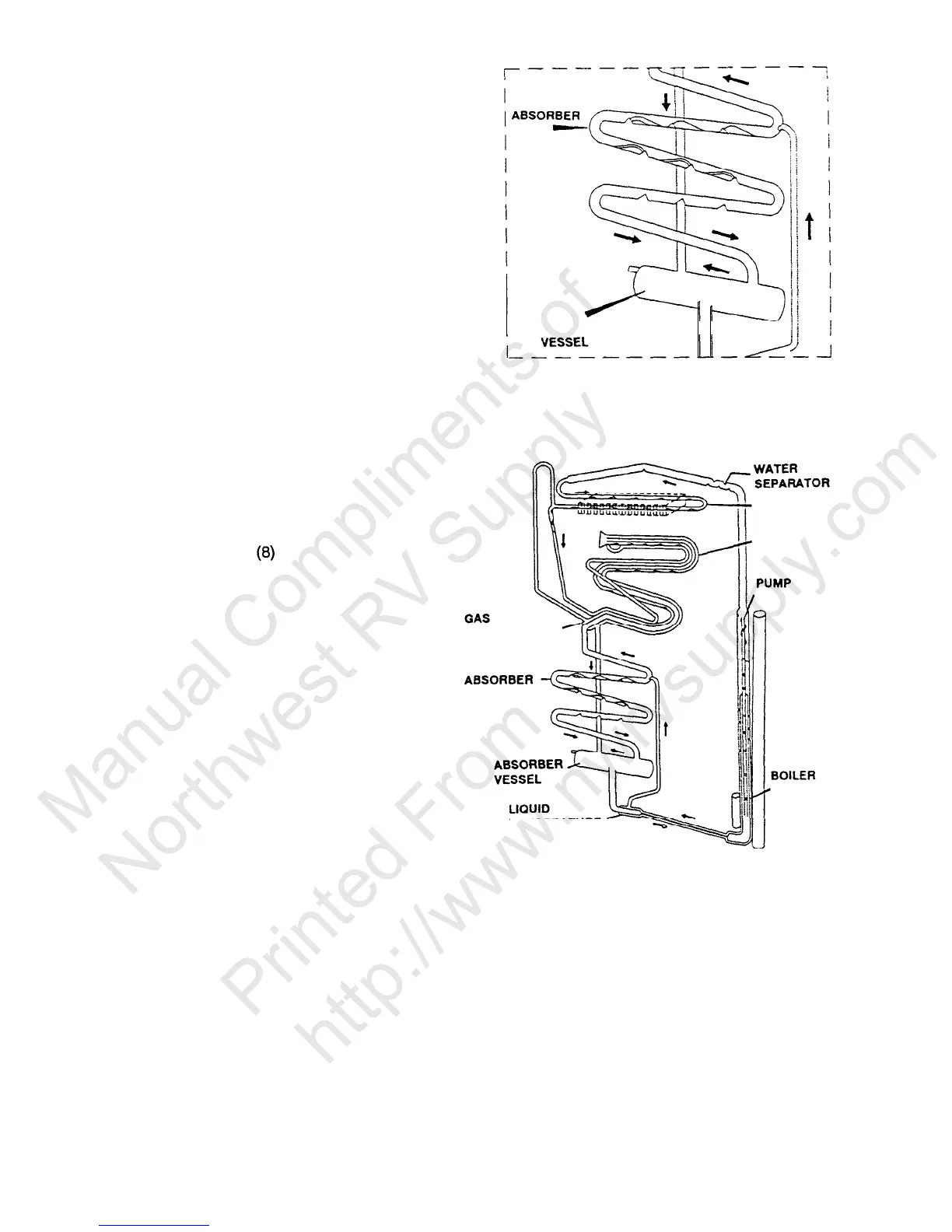

Absorber
ABSORBER
THE ABSORPTION
SYSTEM
CONDENSER
EVAPORATOR
Because the self-contained cooling unit
does not utilize an electric compressor
or pump, the cooling coils can be oper-
ated from a variety of heat sources. LP
gas, 120 volts AC and 12 volts DC
heating elements are the most com-
monly used heat sources for recreation-
al vehicle applications.
TEMPERATURE
EXCHANGER
TEMPERATURE
EXCHANGER
_
(9)
Before this cooling system can properly
extract heat from the cabinet of the
refrigerator, three requirements for prop-
er refrigerator operation must be met.
These are precise heat, specified ven-
tilation and proper leveling.
THREE REQUIREMENTS
FOR PROPER OPERATION
1. Level
2. Air Flow (Ventilation)
3. Heat
