PROCEDURE FOR
CHANGING COOLING UNIT
The following categories have been established
predicated on similarity of design and procedure
for replacement of cooling units. Most
Dometic
refrigerators are covered in one (1) of these
categories.
SPECIAL NOTE: After the cooling unit has been
installed, the initial
start-up
time can be
shortened by tilting the refrigerator from side
to side and then from front to back before the
refrigerator is turned on.

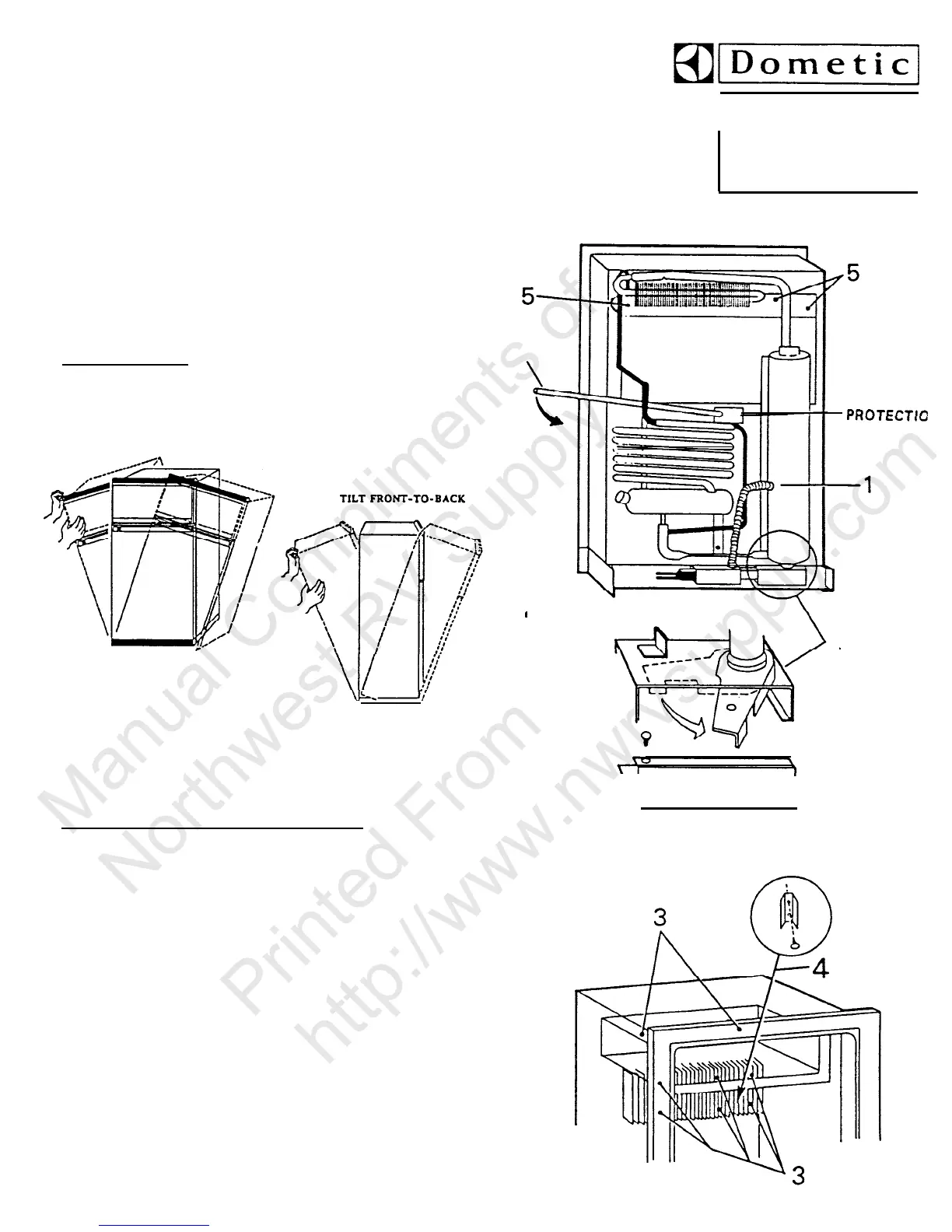

TILT SIDE-TO-SIDE
Run the refrigerator on a bench for 12 hours
after the cooling unit has been installed (all
food should be removed for testing).
Refrigerator
Bulletin
R55/7A
April 1987
6
WOOD BLOCK
FIG. Al
2
FIG. A2
\I
FC140
Cooling
Unit cannot be replaced
A. Category
#l
RM46
RM46 1
RM663
RM2500
RM360
RM660
RM2300 RM3500
RM460
RM661
RM2400
REMOVAL OF COOLING UNIT
1.
2.
3.
4.
5.
6.
Remove heater(s) from boiler case (FIG. Al).
Disconnect burner from chimney (FIG. A2).
Remove evaporator screws inside refrigerator
and remove cooling flange (FIG. A3).
Remove screws holding clamp for capillary
tube.
Pull capillary gently out of plug (FIG.
A3).
Remove screws
Al).
Apply leverage
Al).
holding unit from rear (FIG.
as shown and pull out (FIG.
FIG. A3
D-9-4
