(Bulletin
R55/7A
continued)
INSTALL REPLACEMENT COOLING UNIT:
1.
2.
3.
4.
5.
6.
7.
Trim the Styrofoam portion of the cooling
unit if
it does not go freely into the
refrigerator.

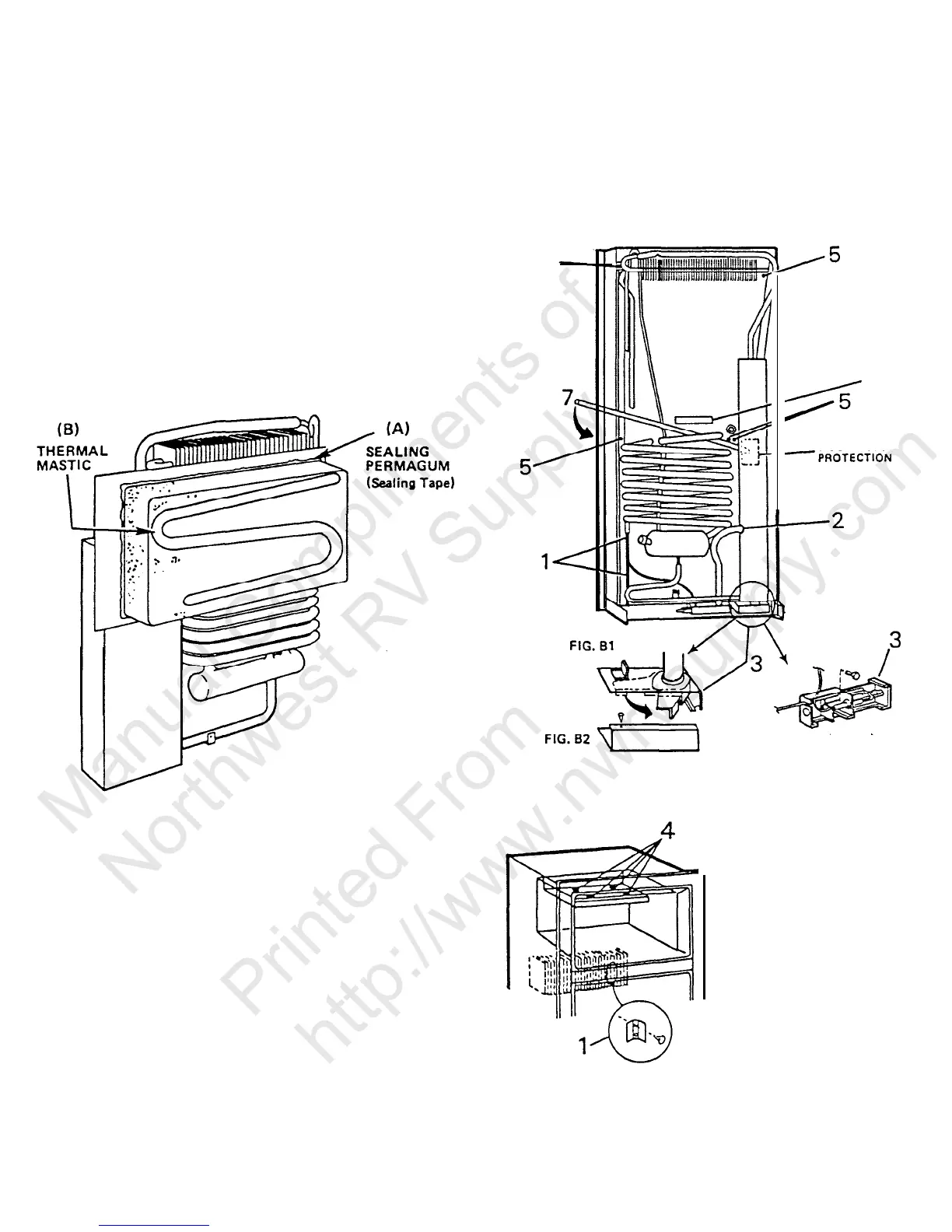

Apply sealing permagum (sealing tape) on
mounting plate (A; FIG. A4).
Apply thermal mastic on the evaporator coil
(B; FIG. A4).
Tighten screws securely to obtain proper
contact between the evaporator coil and
evaporator flange; otherwise improper cabinet
performance may result.
Install the heating element completely back
into the pocket and plug in.
Reconnect burner assembly to chimney.
Reinstall capillary tube into proper position
(FIG. A3).
FIG.
A4
B.
Category
#2
RM100
RM763
RM1303
RM760
RM1300
RM2600
RM3600
RM76
1
RM1301
RM2800
RM3800
REMOVAL OF COOLING UNIT:
1.
2.
3.
Remove screw holding clamp for capillary
tube.
Pull capillary tube out gently and
place aside (FIG.
Bl).
a.
RM3600, RM3800 (FIG. B4)
Remove heater(s) from boiler case (FIG.
Bl).
Disconnect burner from chimney (FIG. B2
and B3).
a.
RM2600,
RM2800,
RM3600,
RM3800
(FIG. B3).
D-9-5
4.
Remove
evaporator screws (FIG.
B4).
5.
Remove screws holding unit from rear (FIG.
Bl).
6. Cut tape holding plate (FIG.
B1).
7. Apply leverage as shown and pull unit out
(FIG. B
).
5
6
WOOD
BLOCK
FIG.
B3
FIG. 84
INSTALL REPLACEMENT COOLING UNIT:
1. Trim the Styrofoam portion of the cooling
unit if
it does not go freely into the
refrigerator.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com
