MANUAL REFRIGERATOR

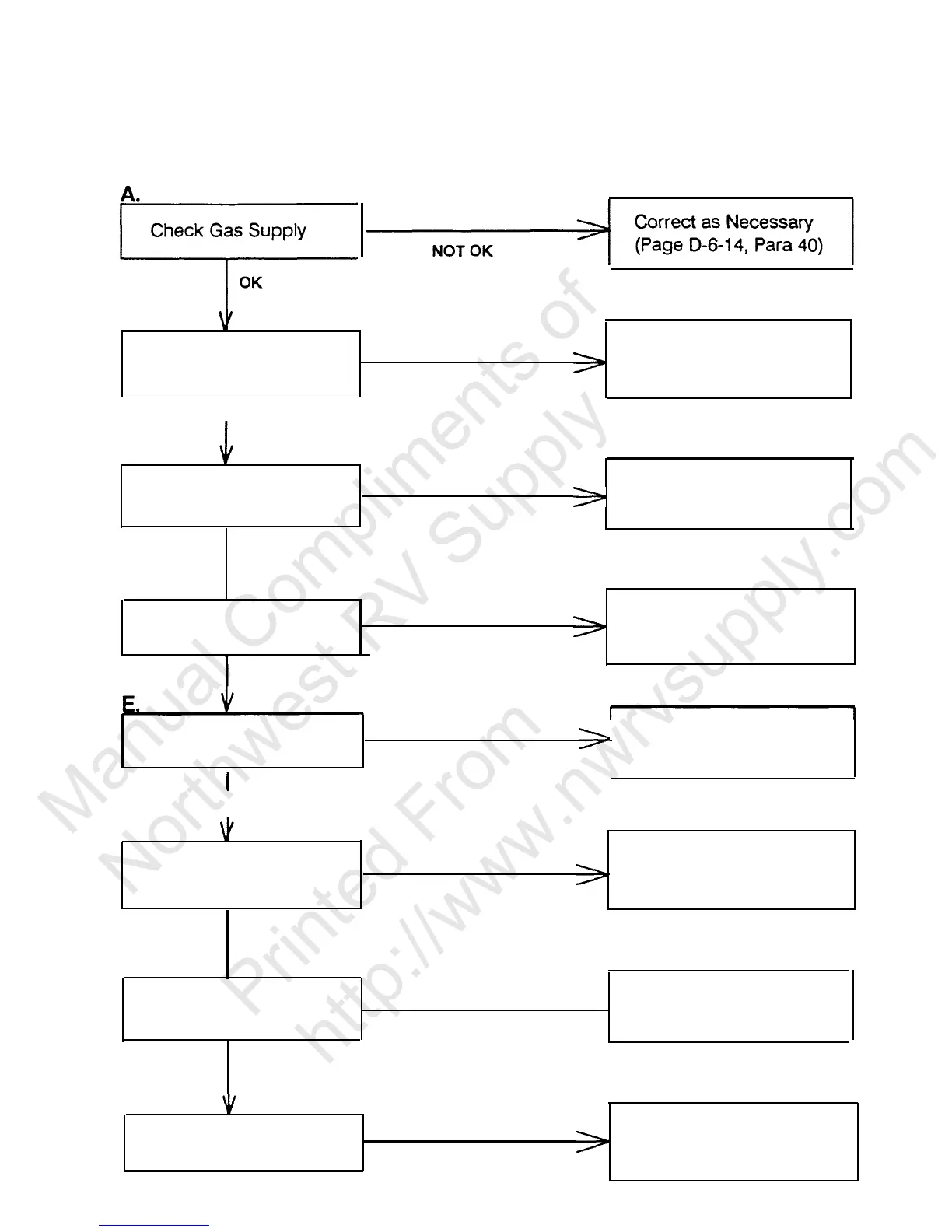

DIAGNOSTIC FLOW CHART
NO GAS OPERATION
-
Models Equipped with Piezo igniter
.
Check Gas Supply
OK
B.
Check Switch
I
NOT OK
Correct as Necessary
(Page D-6-20,
Para
66)
OK
.C.
Check Thermostat
OK
D.
V
Check Gas Pressure
OK
NOT OK
NOT OK
Correct as Necessary
Continuity Check
Correct as Necessary
(Page D-6-13,
Para.
37)
Check Flue
&
Burner
NOT OK
Correct as Necessary
No Obstructions
OK
F.
Check Piezo Resistance
I
NOT OK
Correct as Necessary
(Page D-6-l 8,
Para.
58)
OK
G.
V
Check Piezo Electrode
I
r
Replace Electrod
(Page D-6-18, 58)
NOT OK
OK
Check Spark Gap
Correct as Necessary
of Electrode to Burner
NOT OK
(Page D-6-19,
Para.
62)
D-4-3
