General Information MasterFlush 7600 Series Toilet
2.1 Model Identification
The toilet model identification label is located on the
toilet base under the water valve. Have this information
ready before contacting Dometic for service.
Loreasm
Loreasam
Model :
Item :
123456789
PNC :
123456789
Serial :
123456789
SO 1234

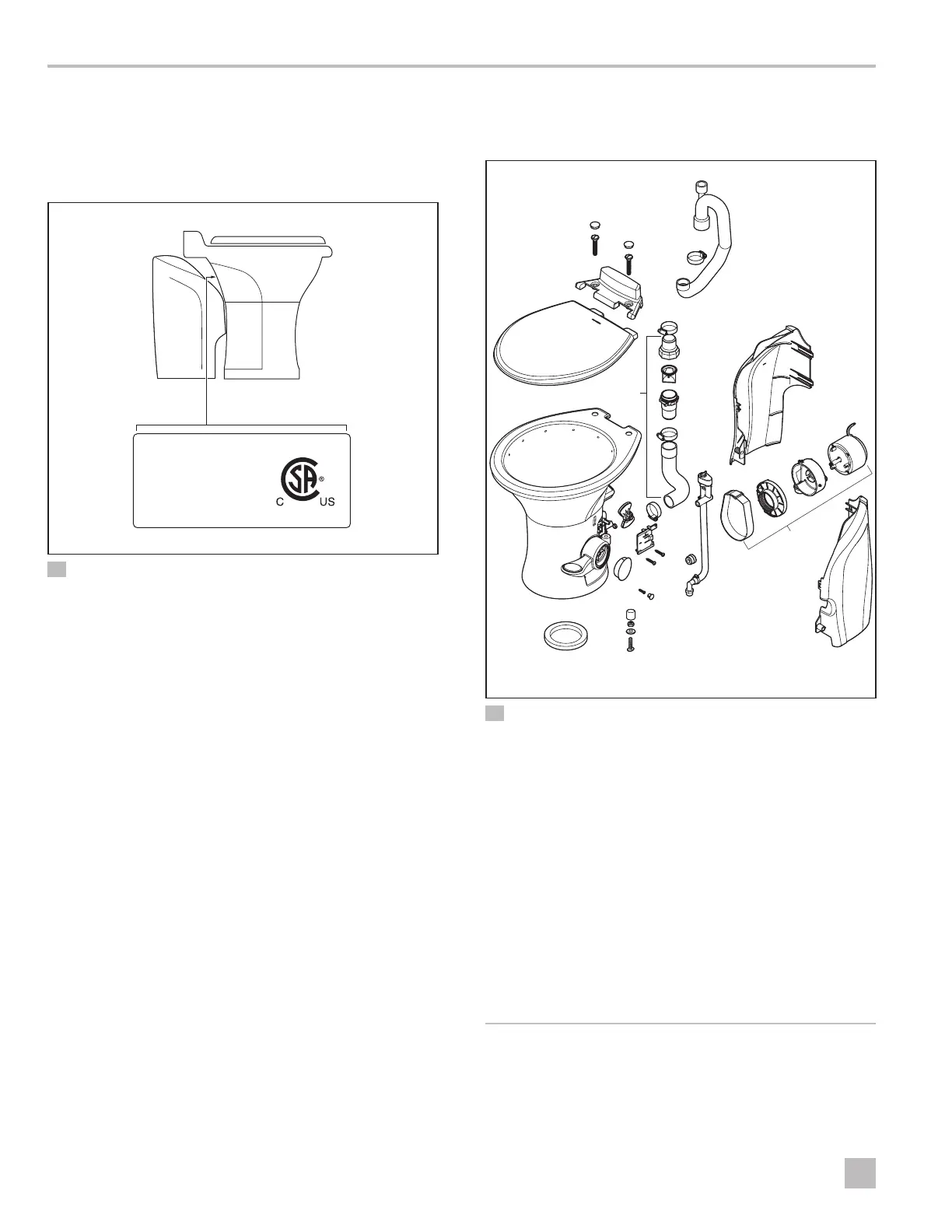

1 Model Identification Example
2.2 Component Locations
This section identifies the toilet components.
e
w
o
r
t
u
a
g
f
f
d
s
y
i
q
2 Component Locations
q
Anti-Siphon Valve/
Upper Discharge Tube
o
Vacuum Breaker/
Bowl Supply Hose
w
Vacuum Breaker Cover
a
Water Valve
e
Toilet Seat
s
Floor Flange
Mounting Option
Hardware Kit
1
r
Toilet Bowl
t
Toilet Base
y
Floor Flange Seal
d
Control Module
u
Flush Pedal Assembly
f
Pump/Base Cover
i
Discharge Pipe/
Trap Assembly
g
Macerator
Pump/Mounting
Assembly
1
Not shown: Remote Mounting Option Hardware Kit.

Dometic MasterFlush 7600 Series Specifications

General

Brand	Dometic
Model	MasterFlush 7600 Series
Category	Toilets
Language	English
