EN

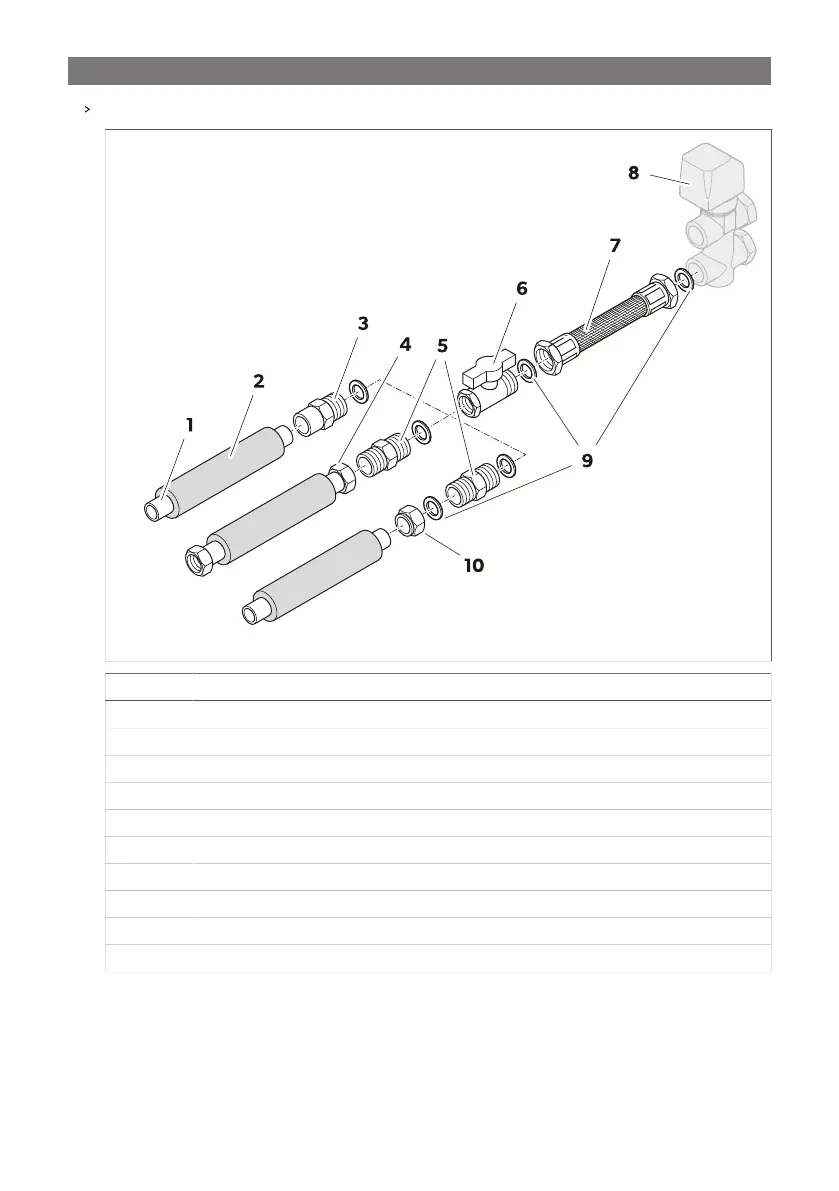

Assemble the copper pipe as shown.
No. Component
1 Copper pipe
2 Insulation
3 Screw connection
4 Multilayer pipes
5 Screw connection
6 Ball valve
7 Flexible connection pipe
8 3-way water valve
9 Gasket
10 Nut
Connecting the pipes
1. Connect the pipes to the fan coils as shown.
18
