NOTE Contact a Dometic service center to receive detailed information about the required pipe diame-
ters, see the backpage of this manual.

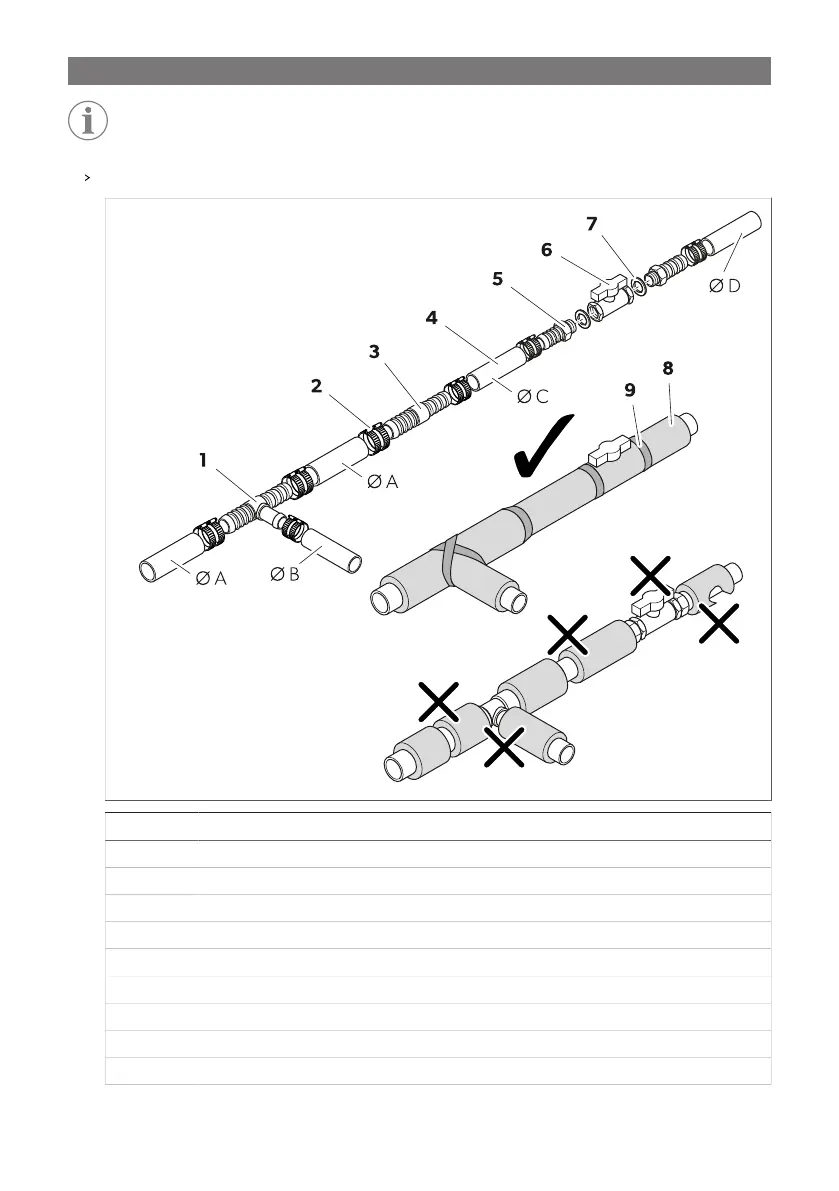

Assemble the plastic pipes as shown.

No. Component
1 Brass tee
2 Hose clamp
3 Pipe coupling
4 Plastic pipe
5 Hose adapter
6 Ball valve
7 Gasket
8 Insulation
9 Drip tape
