General Information Value Air Distribution Box (ADB), Mechanical

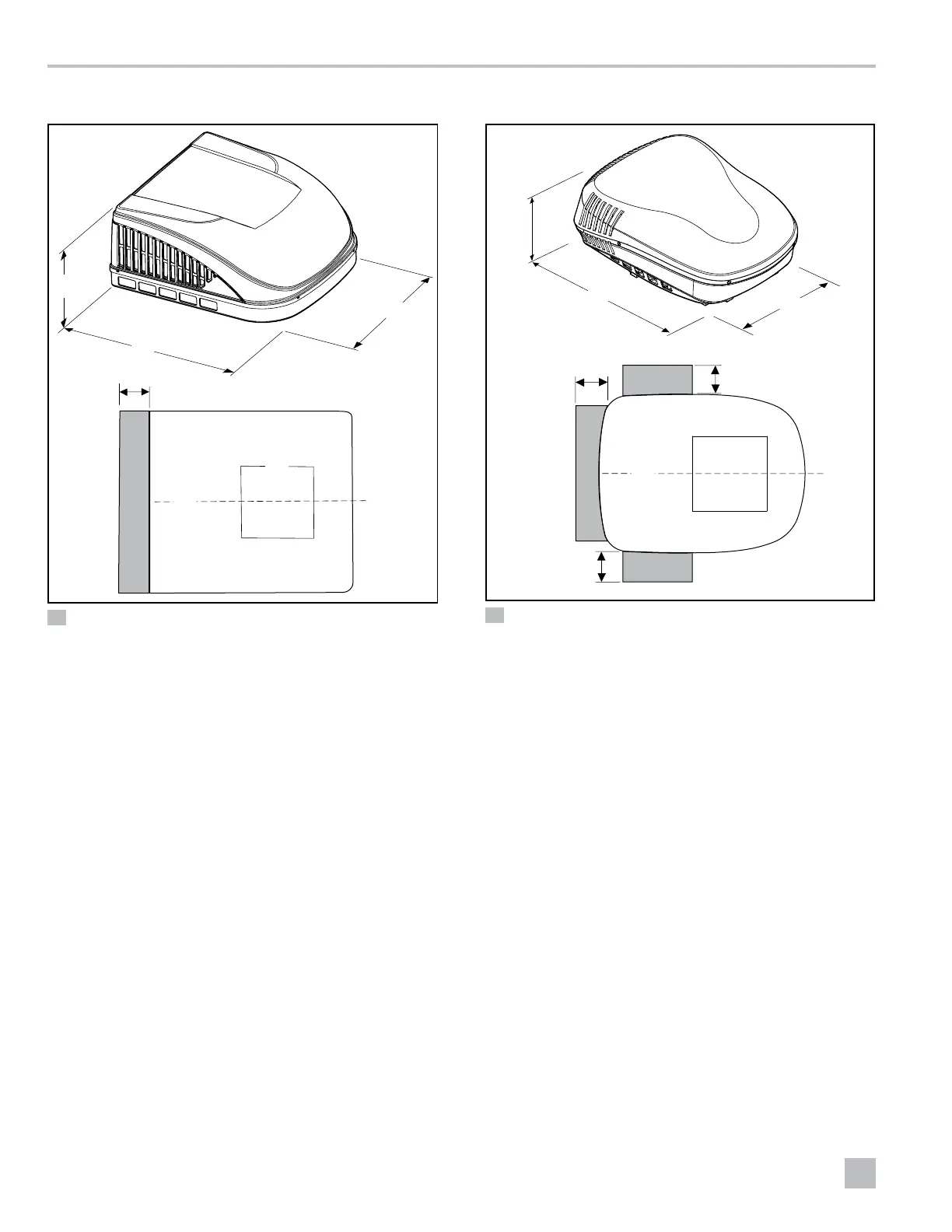

3.4.3 Brisk II
q
r
i
u
t
y
w
e
4 Brisk II (B57915,B59516)
q
13.7 in. (349 mm)
y
Front of Unit
w
29.6 in. (751 mm)
u
18 in. (457 mm)
Clearance
e
27.6 in.(701 mm)
r
Center Line of Unit
i
Air Flow Clearance
Area (Shaded)
t
Roof Opening
3.4.4 Blizzard NXT
q
r
i
u
o
u
t
y
w
e
5 Blizzard NXT (H540315, H540316)
q
13.9 in. (353 mm)
u
4.0 in. (102 mm)
Clearance
w
40.0 in. (1016 mm)
e
30.0 in. (762 mm)
i
18.0 in. (457 mm)
Clearance
r
Center Line of Unit
t
Roof Opening
o
Air Flow Clearance
Area (Shaded)
y
Front of Unit

Dometic Penguin II Specifications

General

Hertz	60 Hz
Installation Type	Rooftop
Cooling Capacity	13, 500 BTU/h
Control Type	Digital
Power Source	115V AC
