General Information Value Air Distribution Box (ADB), Mechanical
3.4.7 Penguin II
q
r
o
u
i
u
t
y
w
e

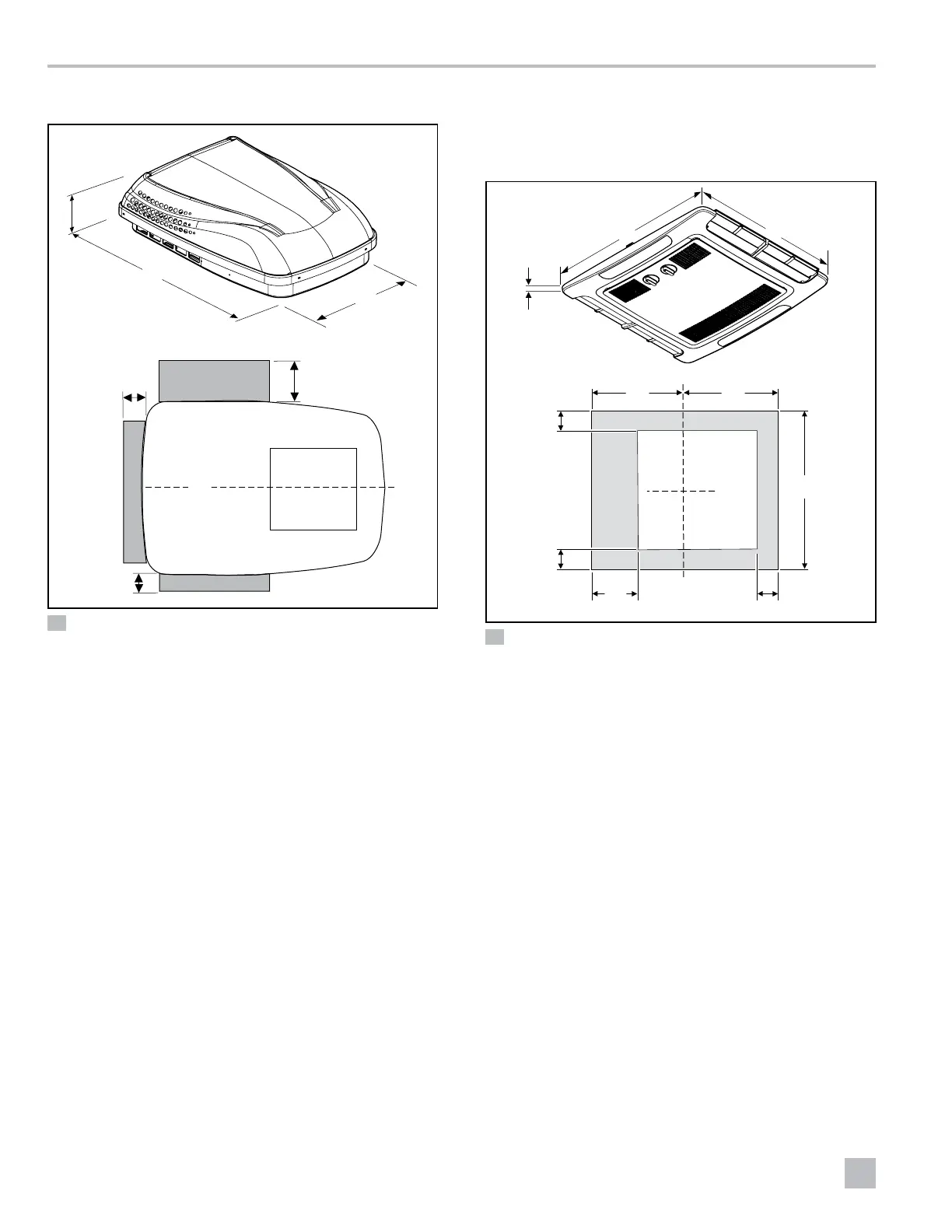

8 Penguin II (640312C, 640315C, 640316C)
q
10.4 in. (264 mm)
u
4.0 in. (102 mm)
Clearance
w
40.5 in. (1029 mm)
e
29.0 in. (737 mm)
i
12.0 in. (305 mm)
Clearance
r
Center Line of Unit
t
Roof Opening
o
Air Flow Clearance
Area (Shaded)
y
Front of Unit
3.5 ADB Component Dimensions
This section provides the internal dimensions of the ADB
component.
q
t
y
w
r
e
r
u
i
i
o
a
u
9 Dimension Measurements
q
Front of Unit
y
Center Line of Unit
w
2.3 in. (59 mm)
u
11.6 in. (295 mm)
e
23.0 in. (583 mm)
i
3.4 in. (86 mm)
r
20.4 in. (518 mm)
o
6.0 in. (152 mm)
t
Roof Opening
a
3.0 in. (76 mm)

Dometic Penguin II Specifications

General

Hertz	60 Hz
Installation Type	Rooftop
Cooling Capacity	13, 500 BTU/h
Control Type	Digital
Power Source	115V AC
