RCD10.5XES Installation
EN
13

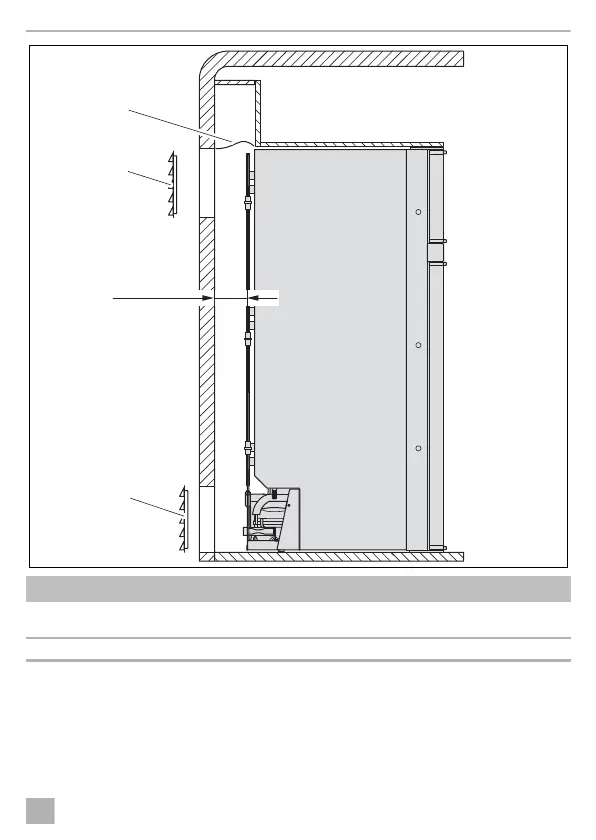

4. Fit the outer wall with one air inlet ventilation grille (fig. 3 1a, page 13) and one outlet ventilation grille
(fig. 3 1b, page 13) so that the heat generated can be easily released to the outside:
– Install the lower air inlet vent LS300 flush to the vehicle floor.
– Install the upper air outlet vent LS300 with the top of the vent no lower than the top of the refrigerator.
Higher than the refrigerator is allowed.
5. Fit an air deflection plate (fig. 3 2, page 13) above the top vent so that the heat does not accumulate above
the refrigerator.
No. in fig. 3, page 13 Description
1a
1b
LS300 ventilation grille
2 Air deflection plate
2
1b
1a
10 – 25 mm
3
