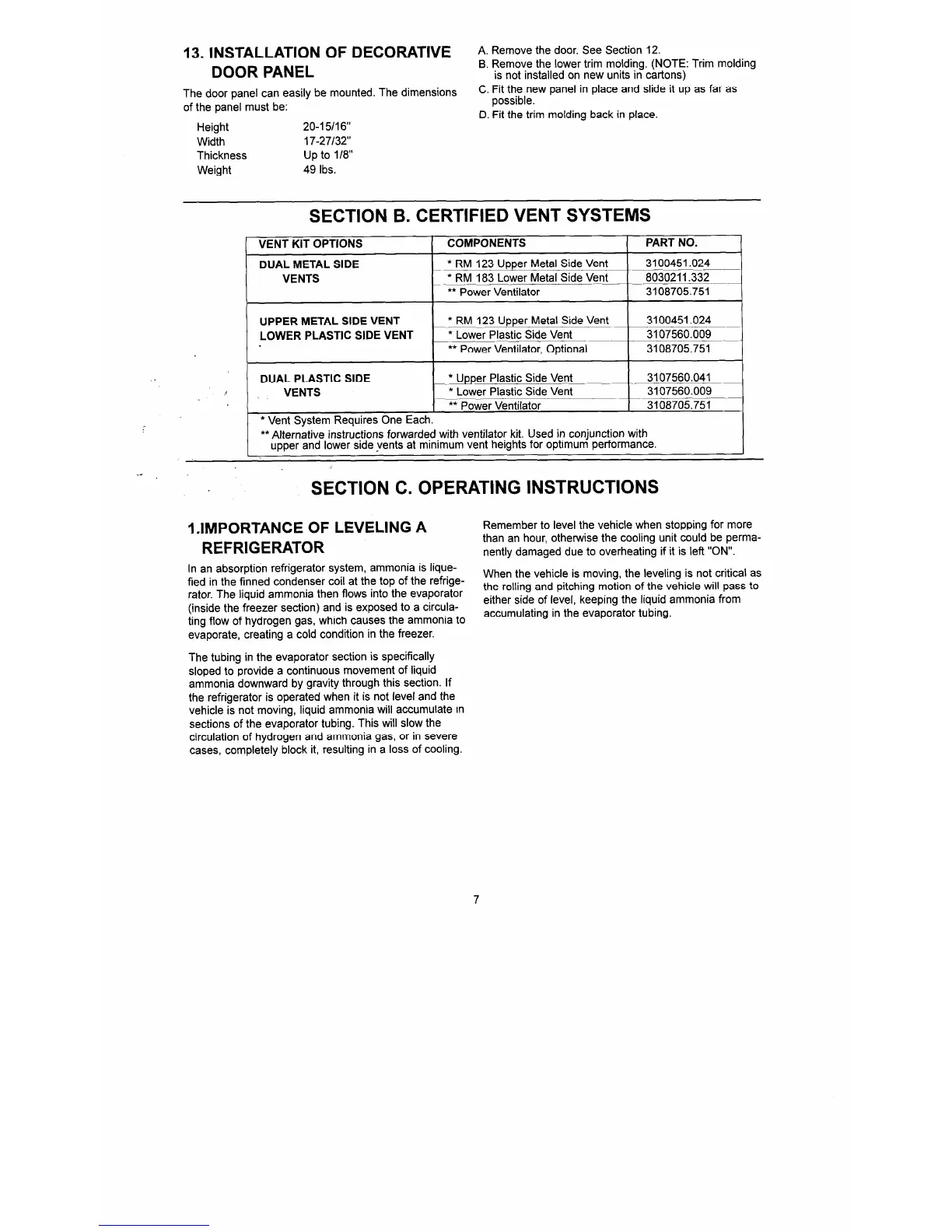

13.
INSTALLATION OF DECORATIVE
A. Remove the door. See Section 12.
DOOR PANEL
The door panel can easily be mounted. The dimensions
of the panel must be:
Height
20-I 5/l 6”
Width
17-27132”
Thickness
up to 118”
Weight
49 Ibs.
B. Remove the lower trim molding. (NOTE: Trim molding
is not installed on new units in cartons)
C. Fit the new panel in place and slide it up as far as
possible.
D. Fit the trim molding back in place.
SECTION B. CERTIFIED VENT SYSTEMS
VENT KIT OPTIONS
DUAL METAL
SIDE
VENTS
UPPER METAL SIDE VENT
LOWER PLASTIC SIDE VENT
* Vent System Requires One Each.
**Alternative instructions forwarded with ventilator kit. Used in conjunction with
upper and lower side vents at minimum vent heights for optimum performance.
DUAL PLASTIC SIDE
VENTS
COMPONENTS 1 PART NO.
* RM 123 Upper Metal Side Vent
3100451.024
* Lower Plastic Side Vent
-!-
3107560.009
-“PowerVentilator, Optional 31087Om-
* Upper Plastic Side Vent _ 3107560.041
* Lower Plastic Side Vent 3107560.009
~__ -
** Power Ventilator
3108705.751
SECTION C. OPERATING INSTRUCTIONS
1 JMPORTANCE OF LEVELING A
REFRIGERATOR
In an absorption refrigerator system, ammonia is lique-
fied in the finned condenser coil at the top of the refrige-
rator. The liquid ammonia then flows into the evaporator
(inside the freezer section) and is exposed to a circula-
ting flow of hydrogen gas, which causes the ammonia to
evaporate, creating a cold condition in the freezer.
The tubing in the evaporator section is specifically
sloped to provide a continuous movement of liquid
ammonia downward by gravity through this section. If
the refrigerator is operated when it is not level and the
vehicle is not moving, liquid ammonia will accumulate in
sections of the evaporator tubing. This will slow the
circulation of hydrogen and ammonia gas, or in severe
cases, completely block it, resulting in a loss of cooling.
Remember to level the vehicle when stopping for more
than an hour, otherwise the cooling unit could be perma-
nently damaged due to overheating if it is left “ON”.
When the vehicle is moving, the leveling is not critical as
the rolling and pitching motion of the vehicle will pass to
either side of level, keeping the liquid ammonia from
accumulating in the evaporator tubing.
To Next Page
