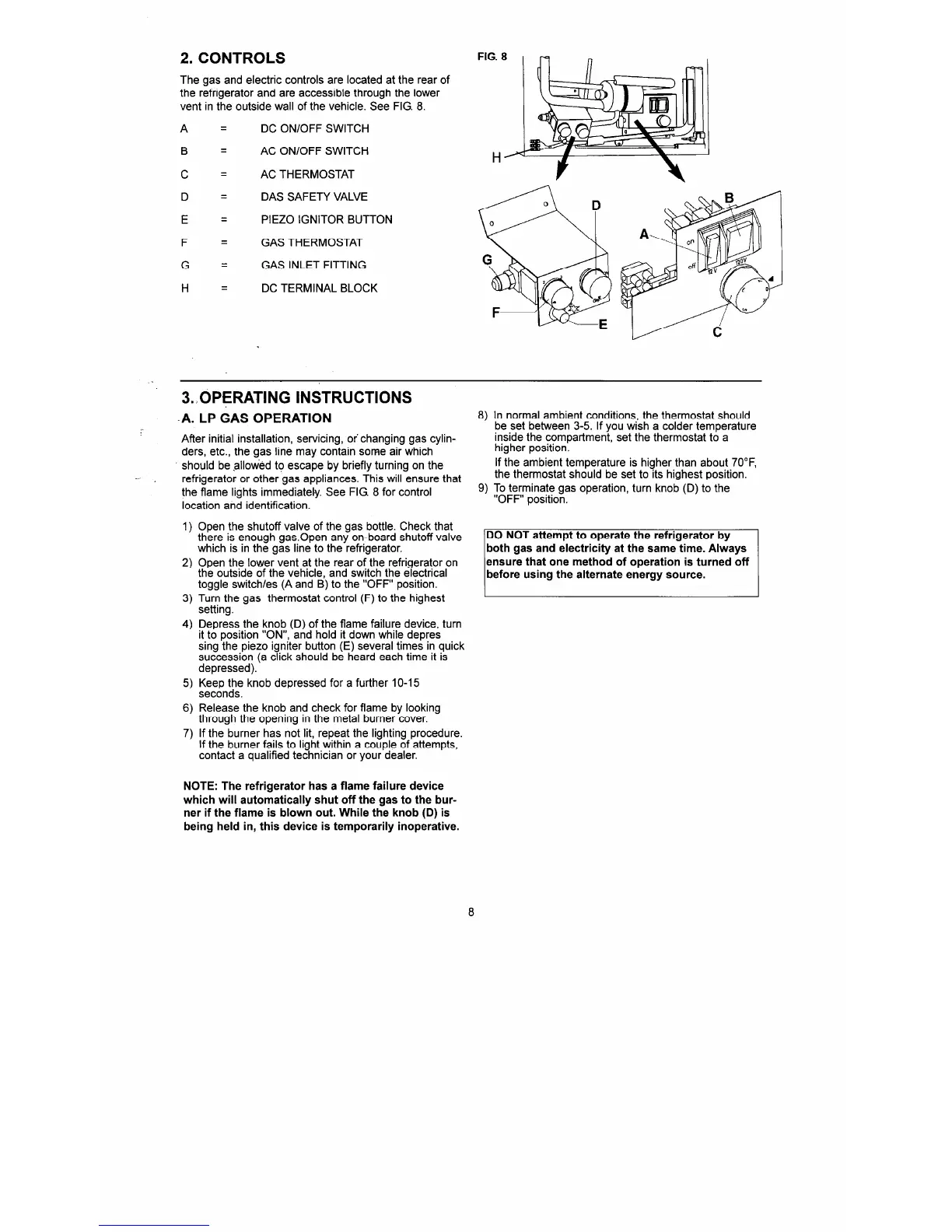

2. CONTROLS
FIG.
8
The gas and electric controls are located at the rear of
the refrigerator and are accessible through the lower
vent in the outside wall of the vehicle. See FIG. 8.
A = DC ON/OFF SWITCH
B = AC ON/OFF SWITCH
c =
AC THERMOSTAT
D =
DAS SAFETY VALUE
E =
PIEZO IGNITOR BUTTON
F
=
GAS THERMOSTAT
G =
GAS INLET FITTING
H = DC TERMINAL BLOCK
3.,OPERATING INSTRUCTIONS
-A. LP GAS OPERATION
After initial installation, servicing, or changing gas cylin-
ders, etc., the gas line may contain some air which
should be allowed to escape by briefly turning on the
refrigerator or other gas appliances. This will ensure that
the flame lights immediately. See FIG. 8 for control
location and identification.
1)
2)
3)
4)
8)
8)
7)
Open the shutoff valve of the gas bottle. Check that
there is enough gas.Open any on-board shutoff valve
which is in the gas line to the refrigerator.
Open the lower vent at the rear of the refrigerator on
the outside of the vehicle, and switch the electrical
toggle switch/es (A and B) to the “OFF” position.
Turn the gas thermostat control (F) to the highest
setting.
Depress the knob (D) of the flame failure device, turn
it to position “ON”, and hold it down while depres
sing the piezo igniter button (E) several times in quick
succession (a click should be heard each time it is
depressed).
Keep the knob depressed for a further 1 O-l 5
seconds.
Release the knob and check for flame by looking
through the opening in the metal burner cover.
If the burner has not lit, repeat the lighting procedure.
If the burner fails to light within a couple of attempts,
contact a qualified technician or your dealer.
8)
9)
In normal ambient conditions, the thermostat should
be set between 3-5. If you wrsh a colder temperature
inside the compartment, set the thermostat to a
higher position.
If the ambient temperature is higher than about 7O”F,
the thermostat should be set to its highest position.
To terminate gas operation, turn knob (D) to the
“OFF” position.
DO
NOT attempt to operate the refrigerator by
both gas and electricity at the same time. Always
c
ensure that one method of operation IS turned off
before using the alternate energy source.
NOTE: The refrigerator has a flame failure device
which will automatically shut off the gas to the bur-
ner if the flame is blown out. While the knob (D) is
being held in, this device is temporarily inoperative.
8
