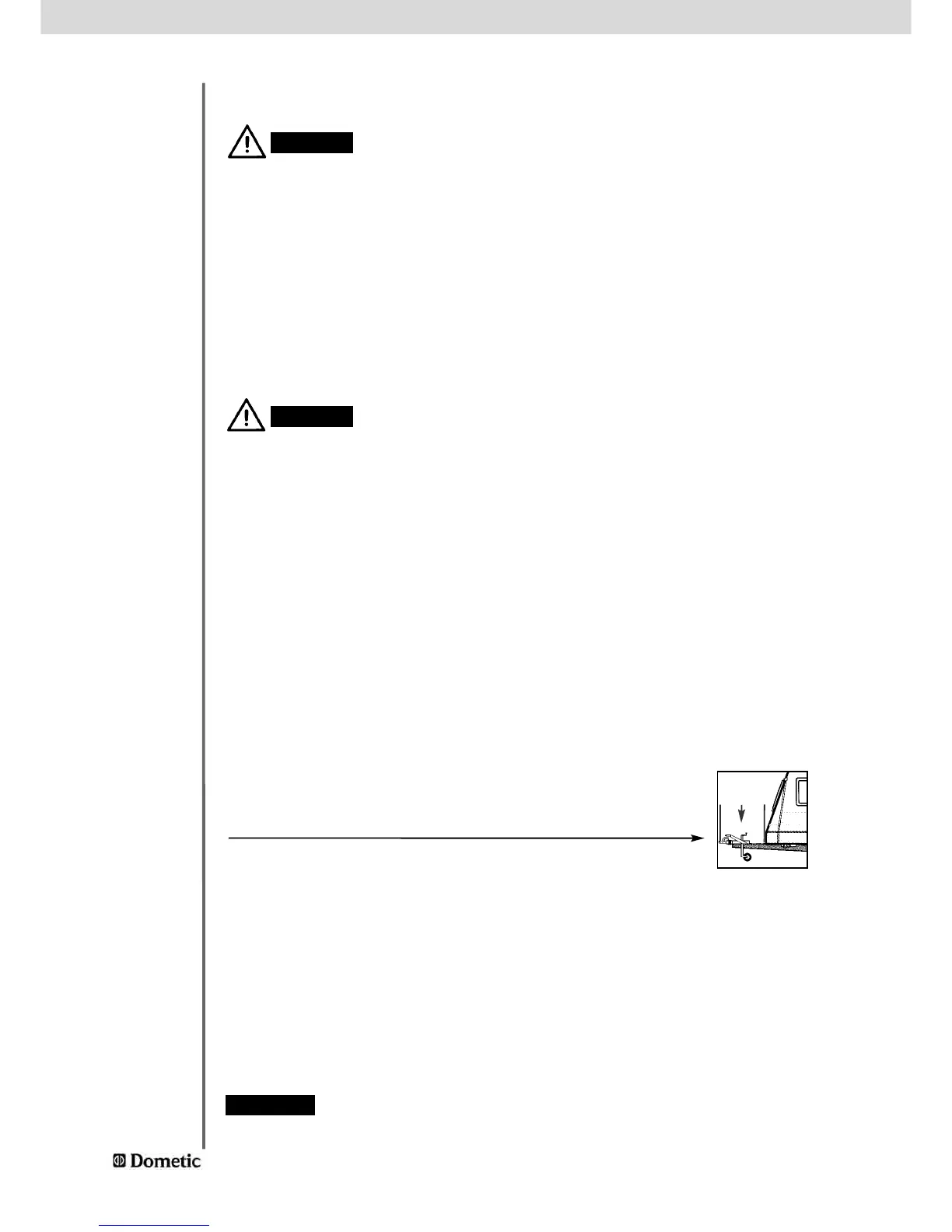

Electrical installation
Power line connection
Battery connection
The machine's mains 12V connection cable is connected (observing correct
polarity) to a terminal strip. The cabling must be direct and by the shortest possible
route to the battery and alternator respectively.
The 12V circuit must be protected with a 16A fuse.
The heating element circuit must be connected to the vehicle battery by a suitable
ignition operated relay in order that the 12V supply is only live while the vehicle
ignition is switched on.
The connection C/D (interior light, electronics ; cable black / violet)
must be permanently attached, and must not be cut-out when the vehicle
ignition key is turned off. This can be realised with an on-board habitation battery.
For 12V operation any habitation isolation relay must be by-passed.
This 12V permanently connection must be protected with a 2A fuse!
6.9
6.9.1
6.9.2
WARNING
WARNING
Electrical installation may only be carried out by qualified personnel.
The electrical installation must comply with national regulations
(EN 60335-2-24, EN 1648-1, EN 1648-2 for Europe).
The connection cables must be laid in such a way that they do not come in
contact with hot components of the unit/burner or with sharp edges.
Changes at the internal electrical installation or the connection of other elec-
trical components (e.g. external fan) to the internal wiring of the appliance
will expire the e1/ CE admittance as well as any claims from guarantee and
product liability!
The power must be supplied via a properly earthed socket outlet or hardwi-
red connection. Where a socket outlet is used for the mains connection lead,
the outlet must be freely accessible..
If the connection cable is damaged it must be replaced by the Customer
Service at Dometic, or by respectively qualified personnel, in order to prevent
any hazards.
It is advisable to run the incoming supply through an on-board fuse or automatic
circuit breaker. The power cable must be laid in such a way that it does not
come in contact with hot components of the unit/burner or with sharp edges.
CAUTION
If the appliance is installed in a caravan the respective leads for
12V+ and 12V- the connections A/B and C/D must not be connec-
ted to each other on the caravan-side ( EN 1648-1).
4 mm
²
< 6 m
6 mm
²
> 6 m
min 2,5 mm
²
(EN1648-1)
Cross-sectional area of cable Length of cable
Motorcaravan &
Caravan (inside)
Caravan (outside)
2,5mm²
