Dometic RM 8400 - Decor Panel Replacement

26

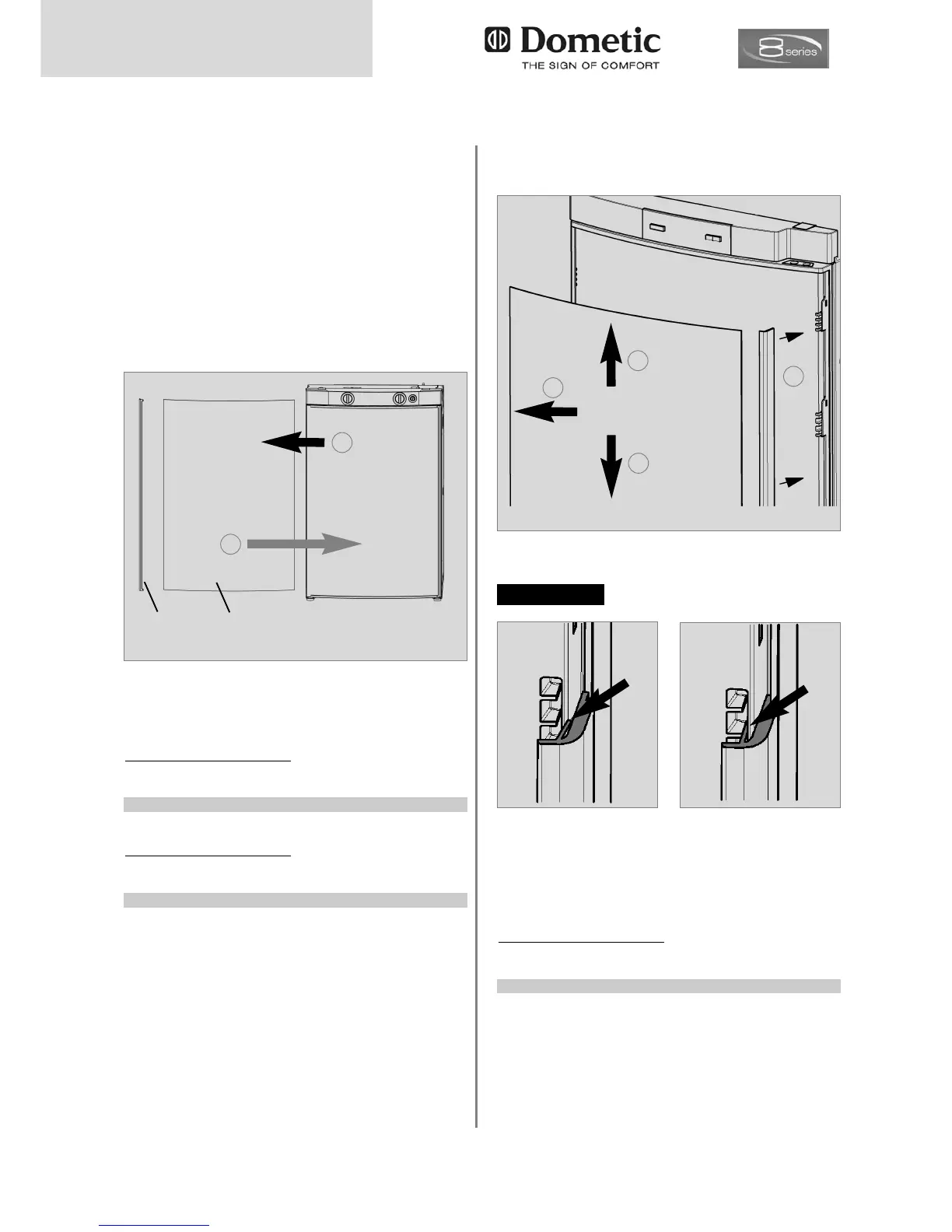

4.13 Changing the decor panel
Fig. 49
 Remove the lateral ledge L from the door
(ledge is attached, not screwed).
 Shift decor panel P away from the door and
insert the new decor panel. Re−attach ledge
L.
Fig. 48
L
L
P
P
Model RM 8xxx, RMS 8xxx
Model RML 8xxx
4
1
2
3
Decor panel dimensions :
743 +/- 0.5 mm 472 +/- 0.5 mm max. 2.2 mm
Casing wid
th 486 mm
Height Width Thickness
743 +/- 0.5 mm 508 +/- 0.5 mm max. 2.2 mm
Casing wid
th
523 mm
Height Width Thickness
2
1
Refrigerator operation
Fig. 49a
Fig. 49b
Decor panel dimensions :
1169,5 +0/-1 mm 507,5 +0/-1 mm max. 1.5 +0/-1 mm
Casing wid
th 525 mm
Height Width Thickness
CAUTION!
wrong
right
