OPTION 2 - THROUGH VENT FRAME (PLASTIC
VENTS ONLY)
Pull end of hose through louvers in vent door. Cut hose
to length. Reinstall perforated plug.
OPTION 3 - HANGING CLIP (PLASTIC VENTS ONLY)
Install clip (part number 3106559.xxx) during vent installa-
tion. Insert hose into “j” portion of clip. Cut hose to length.
Reinstall perforated plug. Hose should be positioned to drain
into uppermost row of louvers in vent door.
OPTION 4 - THROUGH VENT DOOR (SIDE-BY SIDE
PLASTIC VENT ONLY)
Drill a 5/8” hole in vent frame directly above oor line. Route
drain hose through hole and cut to length. Reinstall perforated
plug on the outside of the vent frame. Apply sealant around
plug to ensure water does not seep into enclosure.
CONNECTIONS
GAS CONNECTION
Hook up to the gas supply line is accomplished at the manual
gas valve, which is furnished with a 3/8” SAE (UNF 5/8” -18)
male are connection. ALWAYS use a back-up wrench when
loosening and tightening gas connections. All completed con-
nections should be examined for leaks using an approved leak
detection solution.
The gas supply system must incorporate a pressure regulator
to maintain a supply pressure of not more than 11 inches water
column. When testing the gas supply system at test pressures:
• > 1/2 psi - the refrigerator and its individual shutoff valve
must be disconnected from the gas supply piping system.
• ≤ 1/2 psi - the appliance must be isolated from the gas
supply piping system by closing its individual manual
shutoff valve.
If detailed instructions on the installation and connection to
the gas supply are required, please contact your dealer or
distributor.
INSTALLATION PROCEDURE
All connections should be routed to avoid direct
contact with boiler casing, burner cover, or any
other components of refrigerator.
EXPLOSION HAZARD. Never use an open ame
to check for gas leaks. Failure to obey this warn-
ing could cause an explosion resulting in death or
severe personal injury.
ELECTRICAL CONNECTION
120 VAC CONNECTION
The refrigerator is equipped with a grounded three-prong plug
for protection against shock hazards. It should be plugged di-
rectly into a properly grounded three-prong receptacle. Do not
cut or remove the grounding prong from this plug!
The free length of the cord is 2 feet. To allow easy access
through the vent door, it is recommended to install the recep-
tacle on the opposite side of the burner assembly and approx.
3-6” above the refrigerator mounting oor.
General view. Features may vary by model.
3-6”
120 VAC
Receptacle

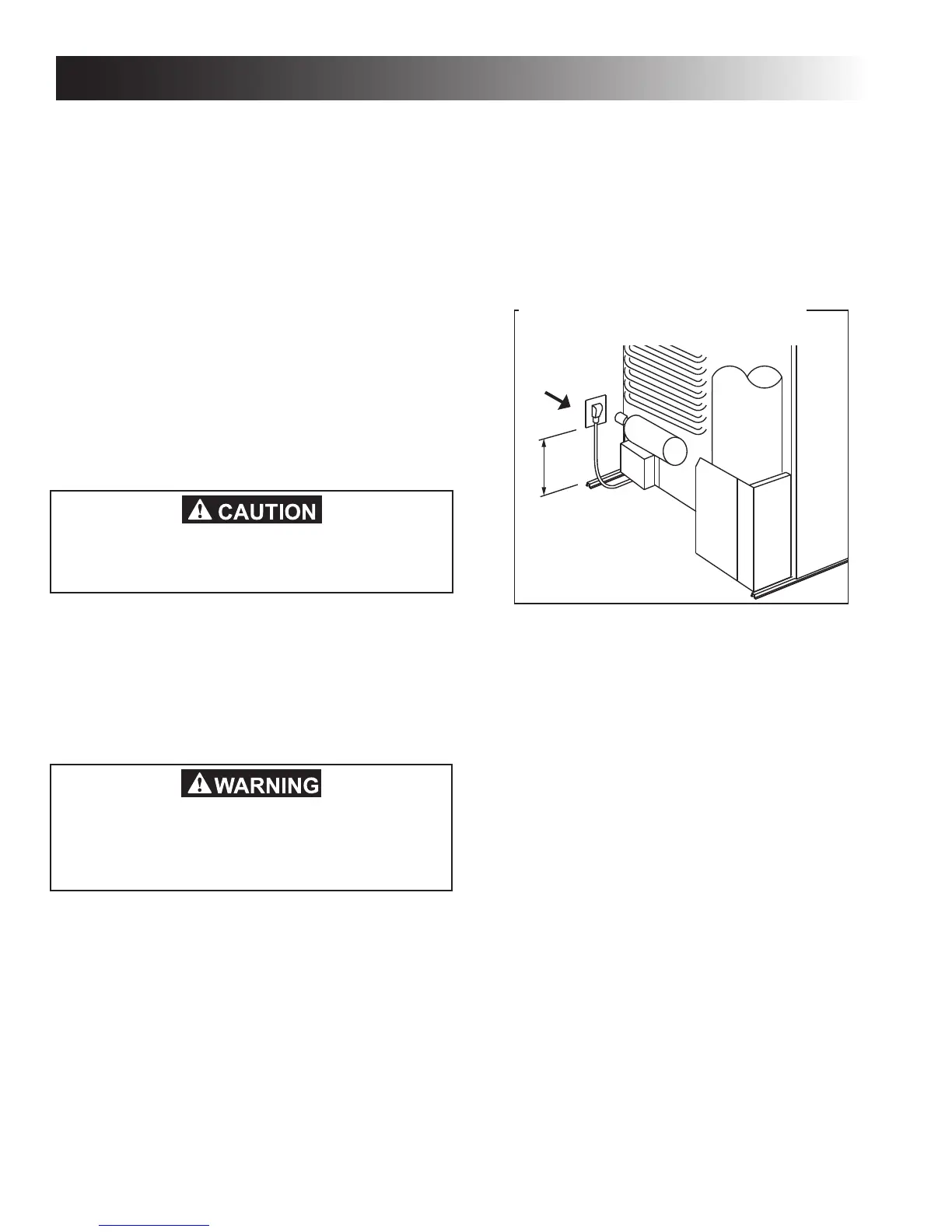

FIG 17 - 120 VAC CONNECTION
