Dometic RM2510 Installation Instructions

- 8 -
INSTALLATION PREPARATION
VENT APPLICATION TYPES
OFFSET VENTS
If vents must be offset due to interference of building
materials the vent must always be offset towards the ue side
of the cooling unit. The vent should be centered over the cool-
ing unit so that the air can ow up and out of the compartment
creating a chimney effect. For offset vent applications, prior
written approval and safety certication must be obtained from
Dometic, LLC.

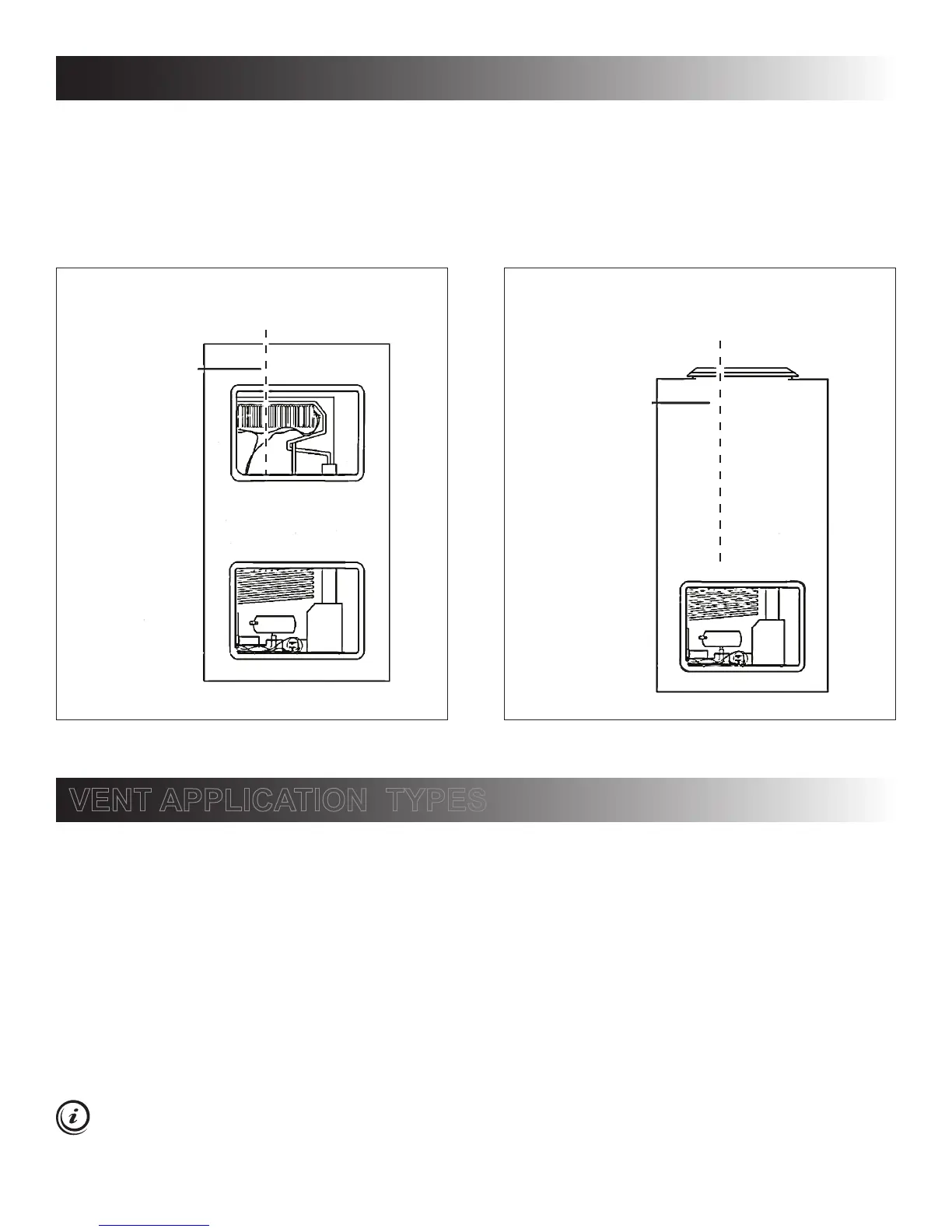

FIG 8 - OFFSET VENT
UPPER AND LOWER SIDE VENT
FIG 9 - OFFSET VENT
SIDE AND ROOF VENT
CENTER OF
REFRIGERATOR
CENTER OF
REFRIGERATOR
CHOOSING TYPE OF VENT APPLICATION
There are four types of applications:
• ROOF VENT APPLICATION
Recommended for typical installations. Check the enclo-
sure depth, see “INSTALLATION PREPARATION > ENCLO-
SURE DEPTH” and add a bafe if required. Roof vent in-
stallations can also be used when vents are inboard or offset
due to radius roof or interference with building materials.
• UPPER AND LOWER SIDE VENT APPLICATION
Choose this type of installation when a roof vent installa-
tion is not possible. Bafe should be added. The refrigera-
tor must be equipped with fan(s).
• ISLAND APPLICATION
Intended for refrigerators installed on an inside wall and
must be vented through the oor to the ceiling.
• CORNER APPLICATION
Intended for refrigerators installed in the rear corner of the
vehicle or in an angled cabinet. The refrigerator must be
equipped with fan(s).
Please refer to page 30, some fans are optional and not
required.
