Dometic RM2510 Installation Instructions

- 7 -
INSTALLATION PREPARATION

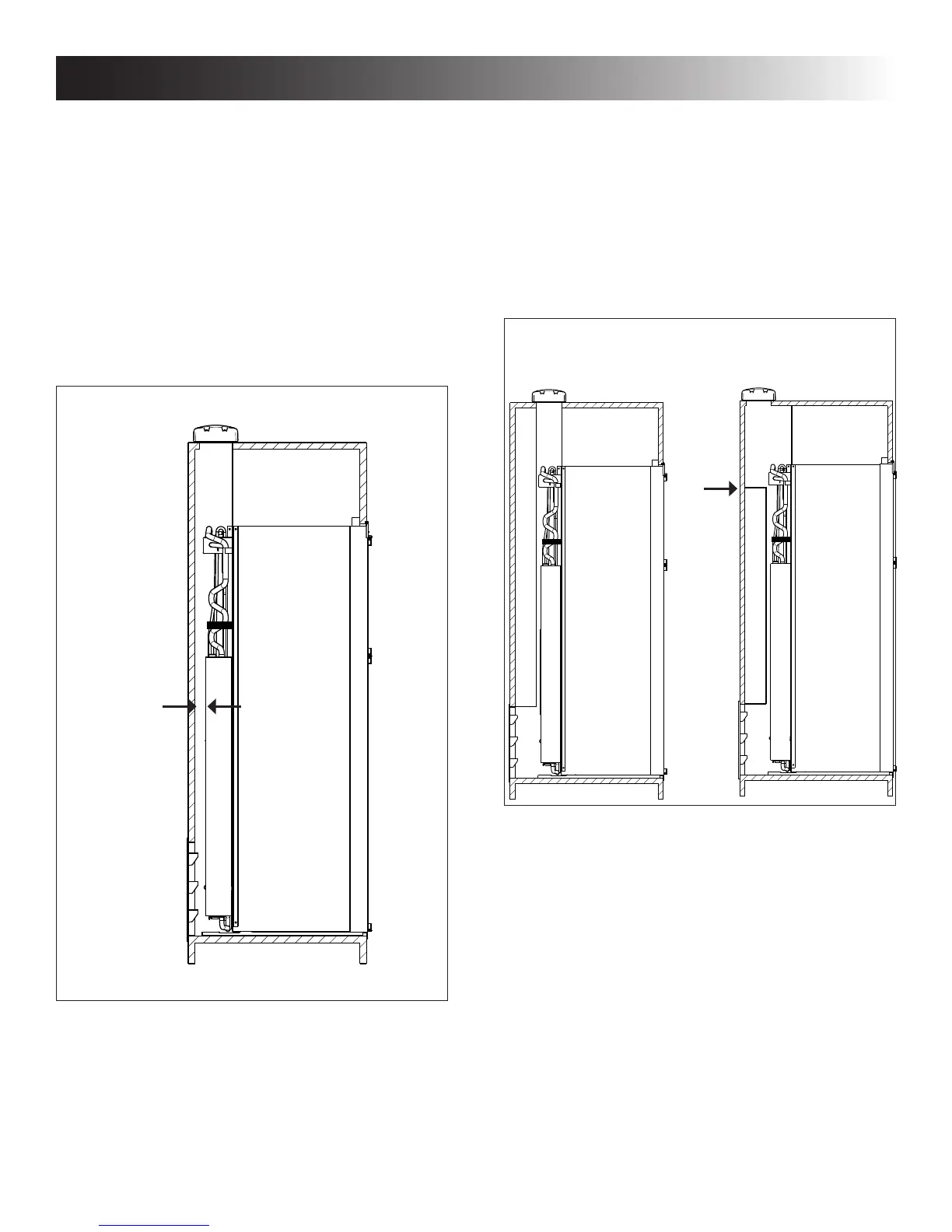

FIG 6 - RECESS DEPTH
FIG 7 - BOX BAFFLE
• The ow of combustion and ventilating air must not be
obstructed, e.g. by an open RV door.
• Do not install an awning too close to the upper side vent.
Allow a distance of approx. 6-12”.
• The minimum vent height requirements, listed in “AP-
PENDIX B”, are part of the safety certication and must be
complied with.
RECESS DEPTH
Spaces of more than 1”, see FIG 6, from rear wall to the re-
frigerator may create performance problems. Fresh air will not
pass through the cooling unit which will reduce the efciency.
It is important to check the recess depth and add bafe(s) to
increase the movement of air across the coil.
If there is more than 1” between the inside of the ventila-
tion compartment and cooling unit, it is required to add box
bafe(s) starting above the lower access vent and running per-
pendicular to the side wall. The bafe should extend up to the
ceiling (in board roof vent vent applications) or up to within
1/2” lower than the condenser ns (roof vent applications). For
upper and lower side wall vent applications the bafe should
come within 1/2" lower than the condenser ns. This will
ensure more efcient operation in warm temperatures. Make
sure the bafe is of the same width as the ventilation compart-
ment, see FIG 7.
Max 1”
(without
bafe)
BOX BAFFLE
WATER SUPPLY CONNECTION
REFRIGERATOR MODELS EQUIPPED WITH ICE MAKER, ICE
AND WATER DISPENSERS
The water supply system must have a minimum pressure of
15 pounds per square inch gauge (psig). A 1/4” diameter water
line to the water valve should be used at the rear of the refrig-
erator. The water line must have a manual shutoff valve placed
where it is easily accessible.
1/2" Below
Fins
Roof Vent Applications
Inboard Roof Vent
Applications
BOX BAFFLE
