Dometic RMDT 8505 User Manual

12
Installation

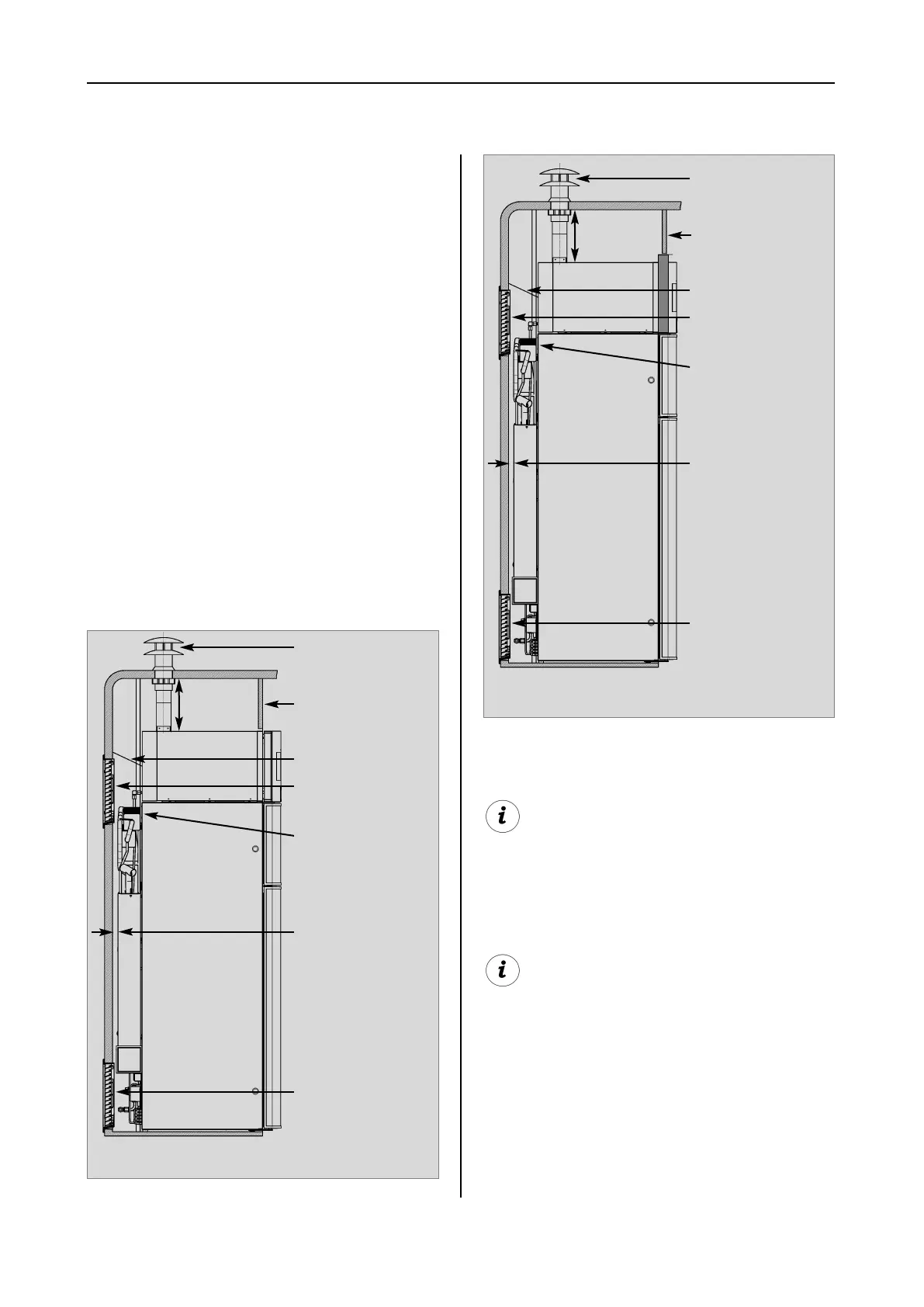

Fig. 11
Appliance without grillfunction
ventilation grille
LS300
condenser
cooling unit
gap between coo-
ling unit and wall:
min. 15 mm
ventilation grille
LS300
Truma-flue outlet
AK3
removable screen /
grill
(for fixing of flue outlet)
heat reflector
170 mm min
The refrigerator must be installed draught-
proof in a recess (also refer to Section "4.1.3").
The measurements of the recess are stated in
the table below. Push the appliance far
enough into the recess until the front edge of
the refrigerator casing is aligned with the front
of the recess. Allow a gap of 15-20 mm bet-
ween the back wall of the recess and the refri-
geration unit. The floor of the recess must be
level, allowing the appliance to be pushed
easily into its correct position. The floor must
be substantial enough to bear the weight of
the appliance. Install a removable screen / grill
above the oven (for fixing and removing of flue
outlet).
Ensure that the refrigerator is installed level
in the recess.
4.2 Installation recess
Fig. 12 Appliance with grillfunction
ventilation grille
LS300
condenser
cooling unit
gap between
cooling unit and
wall: min. 15 mm
ventilation grille
LS300
Truma-flue outlet
AK3
removable screen /
grill
(for fixing of flue outlet)
heat reflector
170 mm min
Observe instructions “4.3 Ventilation ” !
Correct mounting of the lower ventilation grille
facilitates access to the connections and
functional parts during maintenance.
289 0318-40_EN_RMDT85xx-Installation_N1.qxp 02.07.2012 10:00 Seite 12
