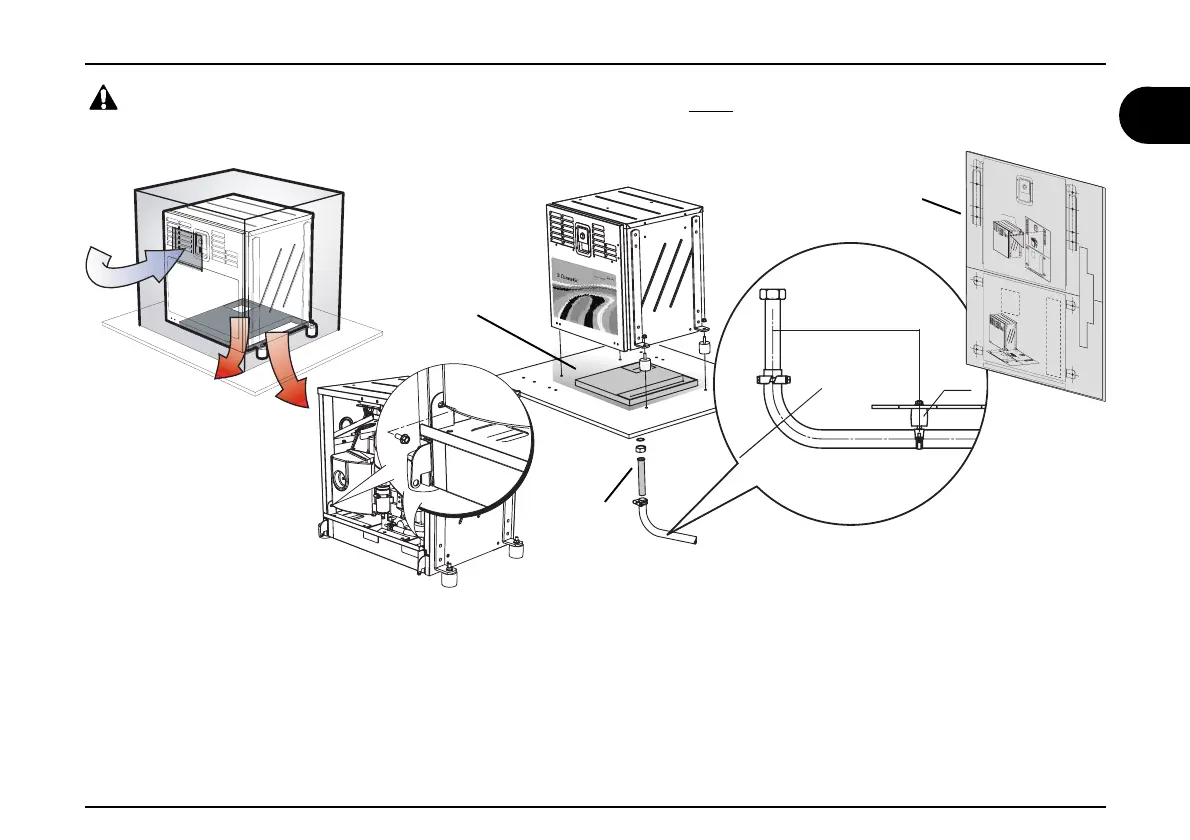

In “B TYPE” installation the generator unit is fitted with item AG164 – available upon request – consisting of a gasket (ref. no. 3013) and a straight
extended exhaust pipe (ref. no. 4209) as shown in the figure below.
An airtight separate compartment must be prepared inside the vehicle. This compartment may also be soundproofed.Use the pre-printed card-
board sheet supplied with the package as a shape template to pierce the air vent openings.
Secure the self-adhesive gasket. The gasket is needed to convoy hot exhaust gases out of the compartment.
Remove the screws from the generator unit bottom and insert the two flange nuts to secure the generator unit bottom in the inner position (as
shown in the figure). This will allow to loosen the unit bottom for ease of ordinary maintenance of the generator unit.
Mount the straight exhaust pipe and secure the flexible connecting pipe with clamps to the additional muffler.
Ensure that the flexible connection pipe is not overbent once secured. The minimum bending radius should be the same as recommended in
the figure.
Warning: to allow for proper cooling of the generator unit, maintain a minimum 70mm between the generator unit and the surrounding
walls. Pierce an air vent opening on top of the compartment facing outward door of minimum 240 cm
2.
. Ensure not to obstruct air intake and
exhaust ports or to let exhaust gases flow in.
