TEC 30 14
user’s manual
GB

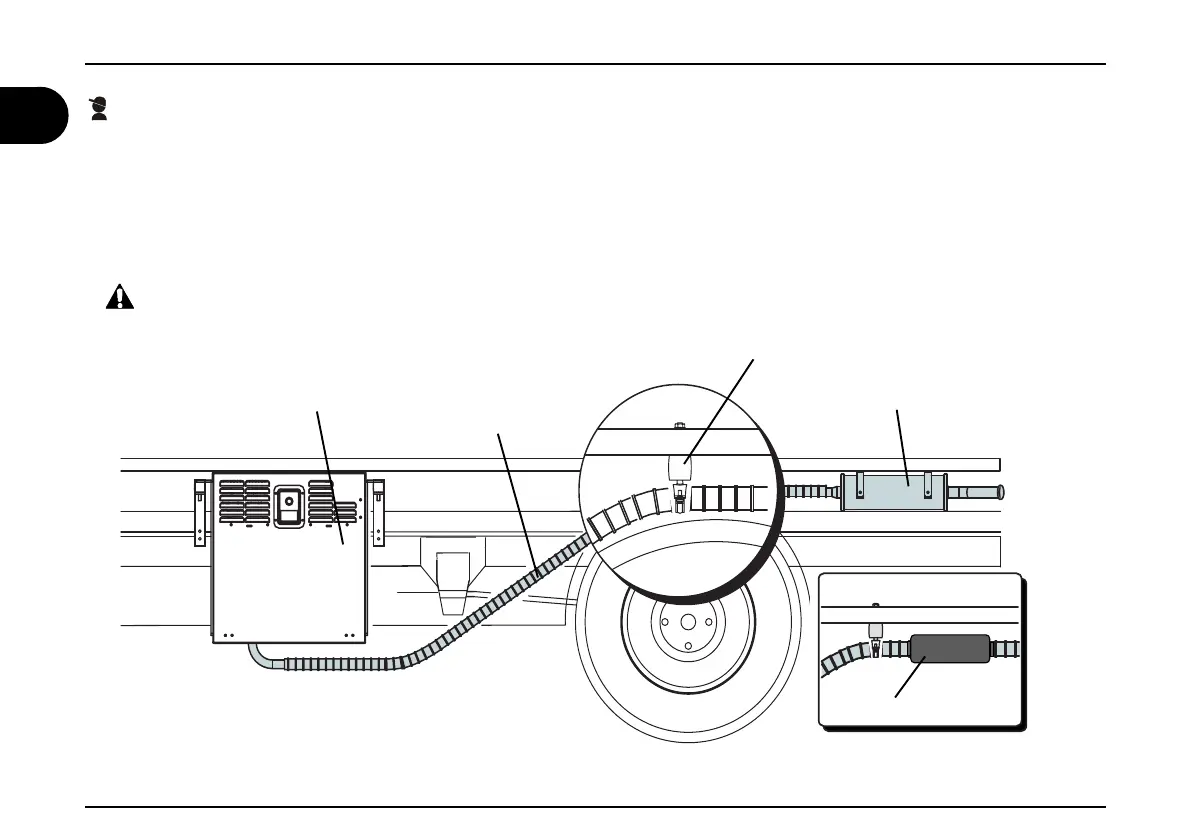

2.2 Instructions for installing the exhaust system
We recommend positioning the elbow of the exhaust pipe in line with the length of the casing (as shown in the figure) so more vibrations can be
absorbed.
Use the exhaust extension (AG125) to extend the position of the muffler. Fix the exhaust extension to the vehicle using flexible elements to reduce
vibrations (extension fixing is avalaible as accessory upon request - Ref. AG163).
The accessory AG134 is available upon request to improve the soundproof.
WARNING
Do not make any sharp bends in the hose which could obstruct the exhaust gas.
EXTENSION FIXING
AG163 (OPTIONAL)
MUFFLER
EXHAUST
EXTENSION
AG125
TEC 30
AG134 (OPTIONAL)
2 Installation instructions
