2.3 Instructions for the electrical connection

The Dometic generator is a source of alternate 230V 50Hz tension,

able to cope with various power needs.

Warning

You will have to install a relay or commutator in the vehicle’s electrical

system (ex. the accessory AG 102) in order to prevent damaging the

generator when the external mains is connected; in this case we suggest

connecting the generator so that it has priority over the external mains

network.

Electric wiring must be effected in conformity with the existing laws

and regulations in force in the user’s country.

For correct installation performed by the final user, use preventive tech-

nical assistance by your seller or by a skilled technician.

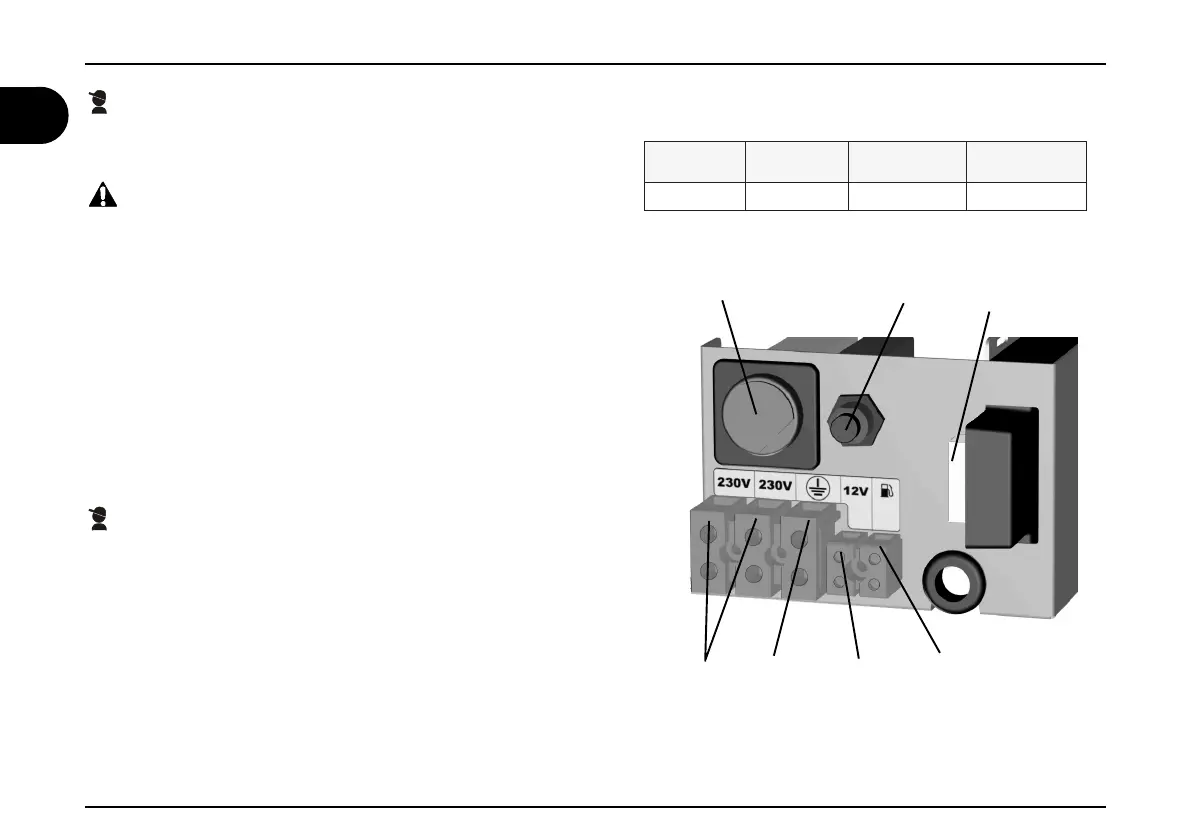

For the 230 V use a cable of a standard cross-section as shown in the

table; insert it in the casing through the cable guide and connect it to

the terminals. Connect the earth wire.

Electrical connection of the battery charger

Use a cable finding the correct section in the chart on the right.

Connect the cable to the connecting terminal and to the positive pole

of the battery to be charged.

Should the battery be others than that used to start the generator, then

connect the negative pole of this battery to the proper mass point of

the generator (see picture on page 19).

NB:The negative pole of the battery should be grounded with the

vehicle’s frame.
