user’s manual TEC 30
19
GB

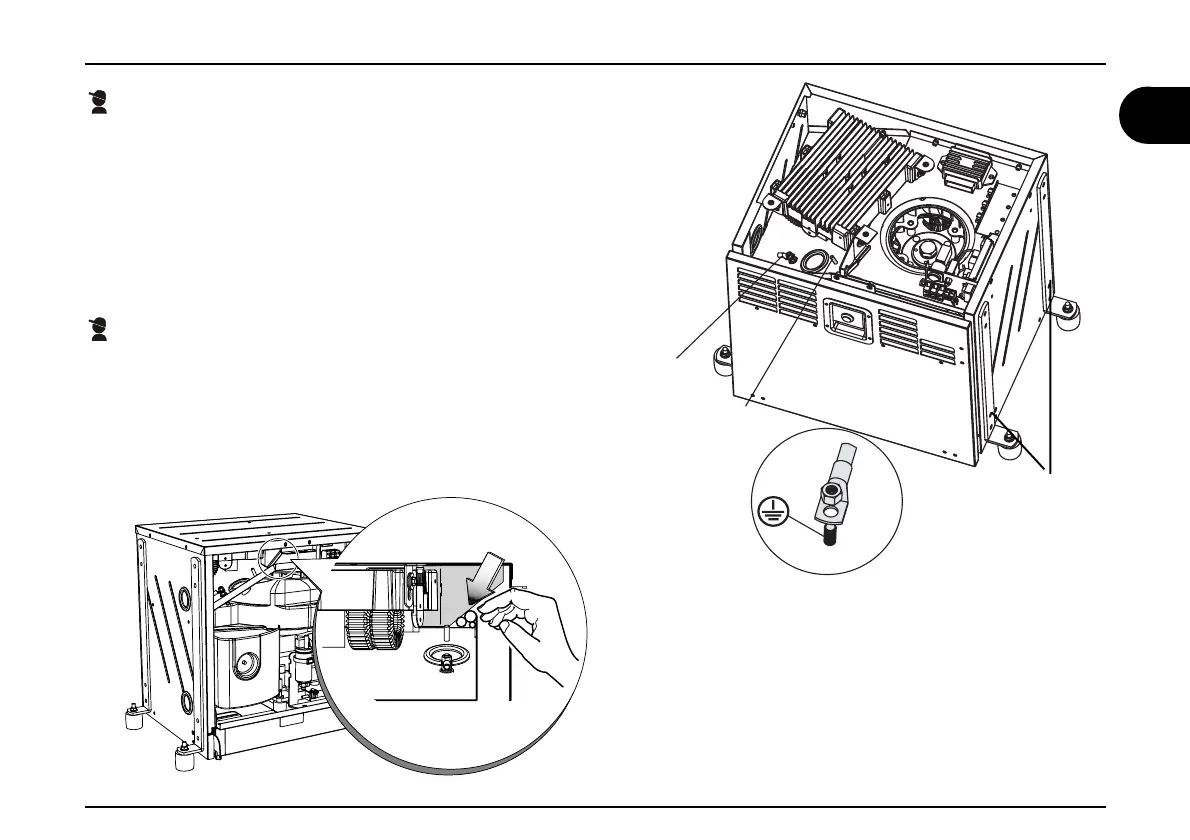

Battery connection
To start the generator, connect it to the positive pole of the vehicle’s
battery with a sheathed cable of a suitable cross-section as shown in
the table. The ground cable must have the same cross-section and be
connected or as shown in the figure to the side or from the inserts to
the frame of the vehicle. Make sure that the contact is good. If necessary
remove paint or rust from the surface of the frame and protect the
connection with grease.
To protect the DC wiring use a 100Amp fuse closed to the plus pole of
the battery.
External control panel connection
Choose the desired position inside the vehicle, use the extension lead
(supplied) to connect the external control panel to the internal control
panel of the generator.
Installation instructions 2
(+) Plus
pole
(-) negative
pole
Inserts
To Next Page
