MAINTENANCE
EPT019297 Issue 1 November 2016 5-11

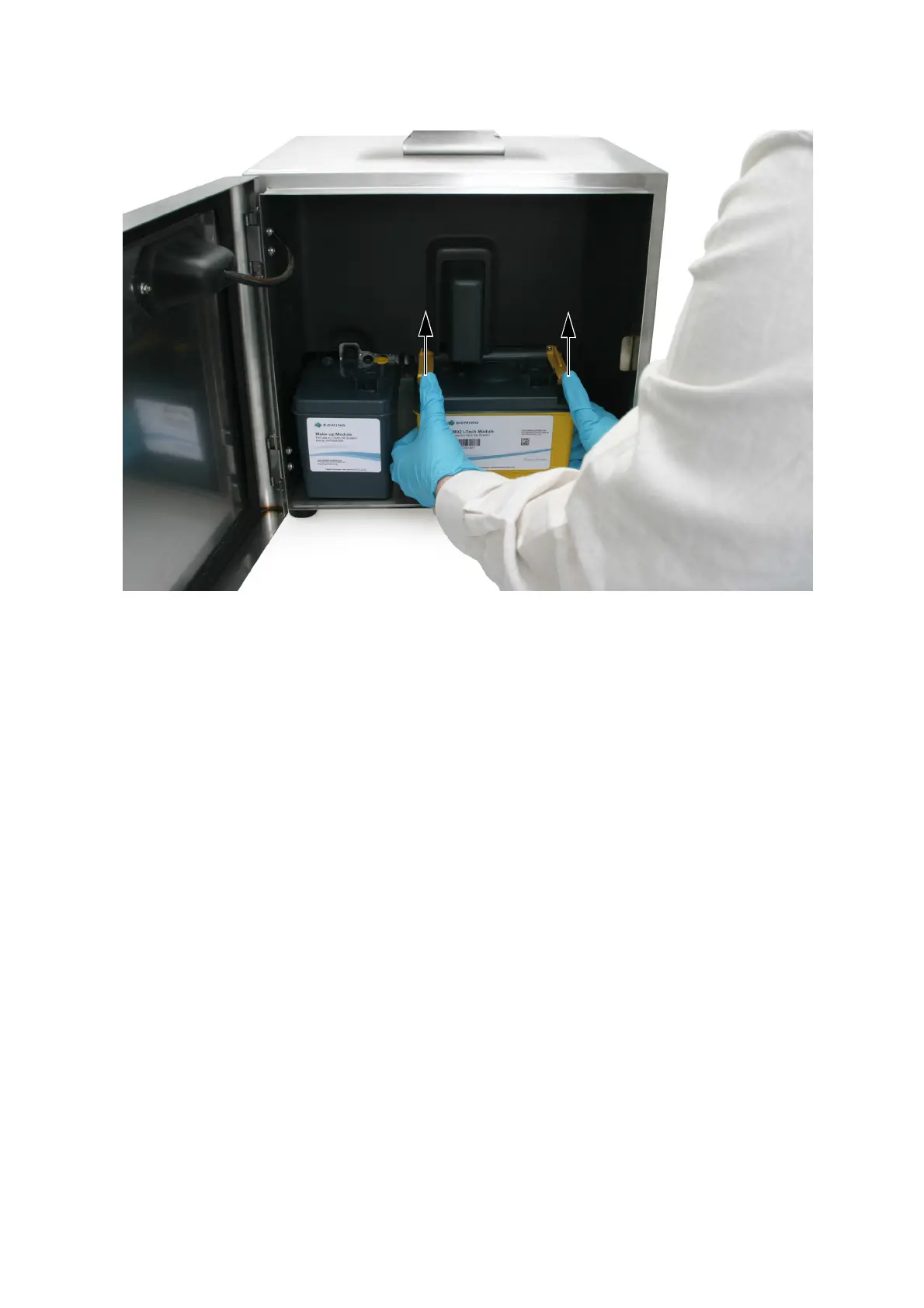

(5) Pull the two ITM retaining clips upwards away from the ITM.
(6) Pull the ITM backwards, withdrawing the connecting manifold from the ink block and
remove the old ITM.
Notes: (1) If the ITM does not withdraw with moderate pressure, push the ITM fully forward
(which will break any seal caused by dry ink) and try again.
(2) The manifold pipes will contain residual ink. Take care when removing the ITM to avoid
spillage.
(7) Unpack the new ITM and remove the sealing strip that protects the ITM manifold.
(8) Re-use the sealing strip to seal the manifold on the old ITM.
