INSTALLATION
EPT019297 Issue 1 November 2016 3-11
TouchPanel Mounting

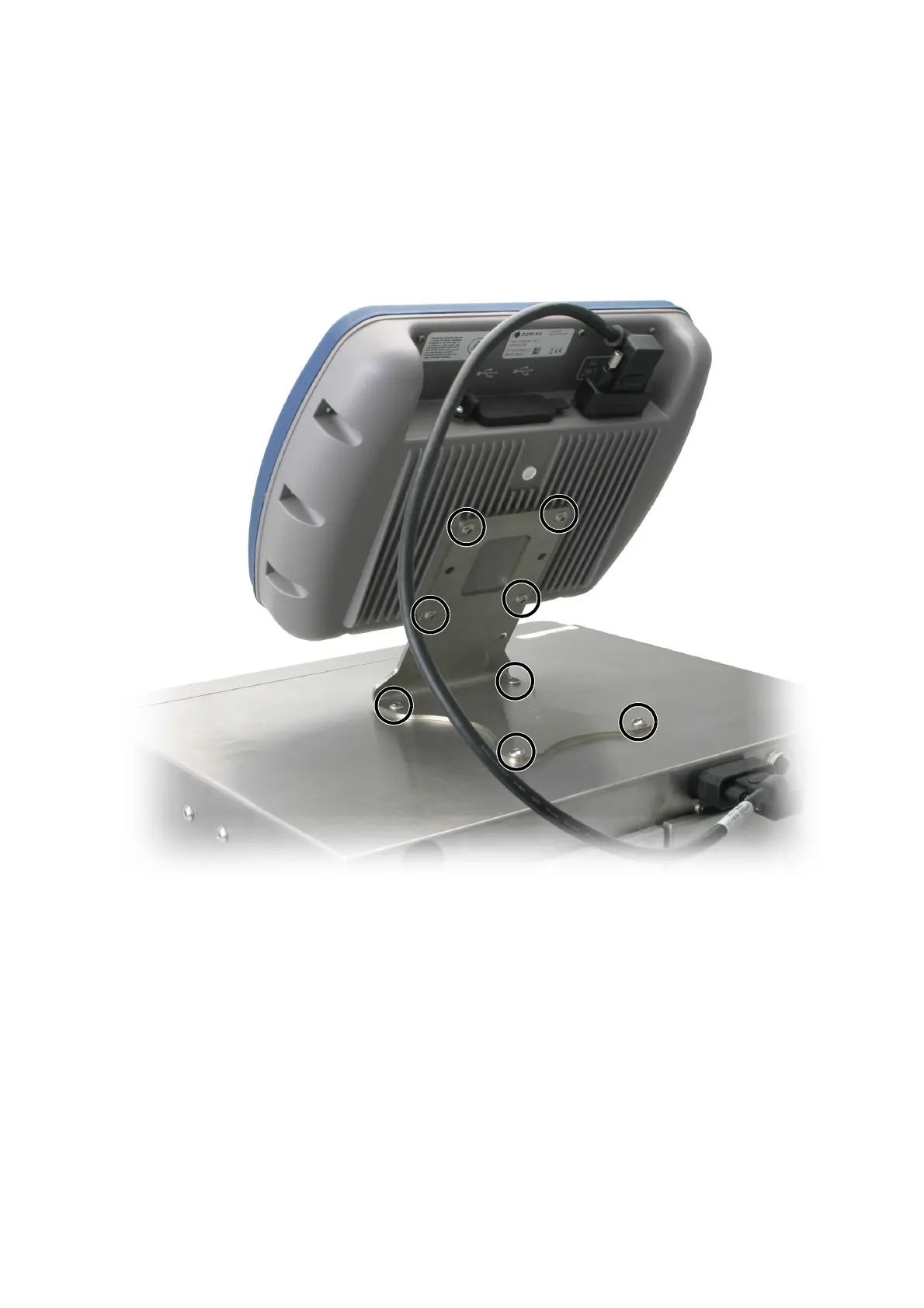

The TouchPanel Type 3 and Type 4 can be mounted to the top of the cabinet using the angled
bracket and 8 screws provided.
TouchPanels can also be mounted elsewhere on the production line using a VESA 75 bracket.
CAUTION: To reduce the risk of damaging cables or equipment, securely route the
TouchPanel cable away from moving equipment and other hazards.
Tools required: 4mm hex key.
