MAINTENANCE AND FAULT FINDING
5-20 L025317 Issue 5 July 2014
CHANGING THE FUSES
WARNINGS: (1) Before undertaking any work on the laser
marking system, remove the mains power plug.
(2) This procedure is to be performed by fully
trained engineers only.
(3) Two pole fuses are used.

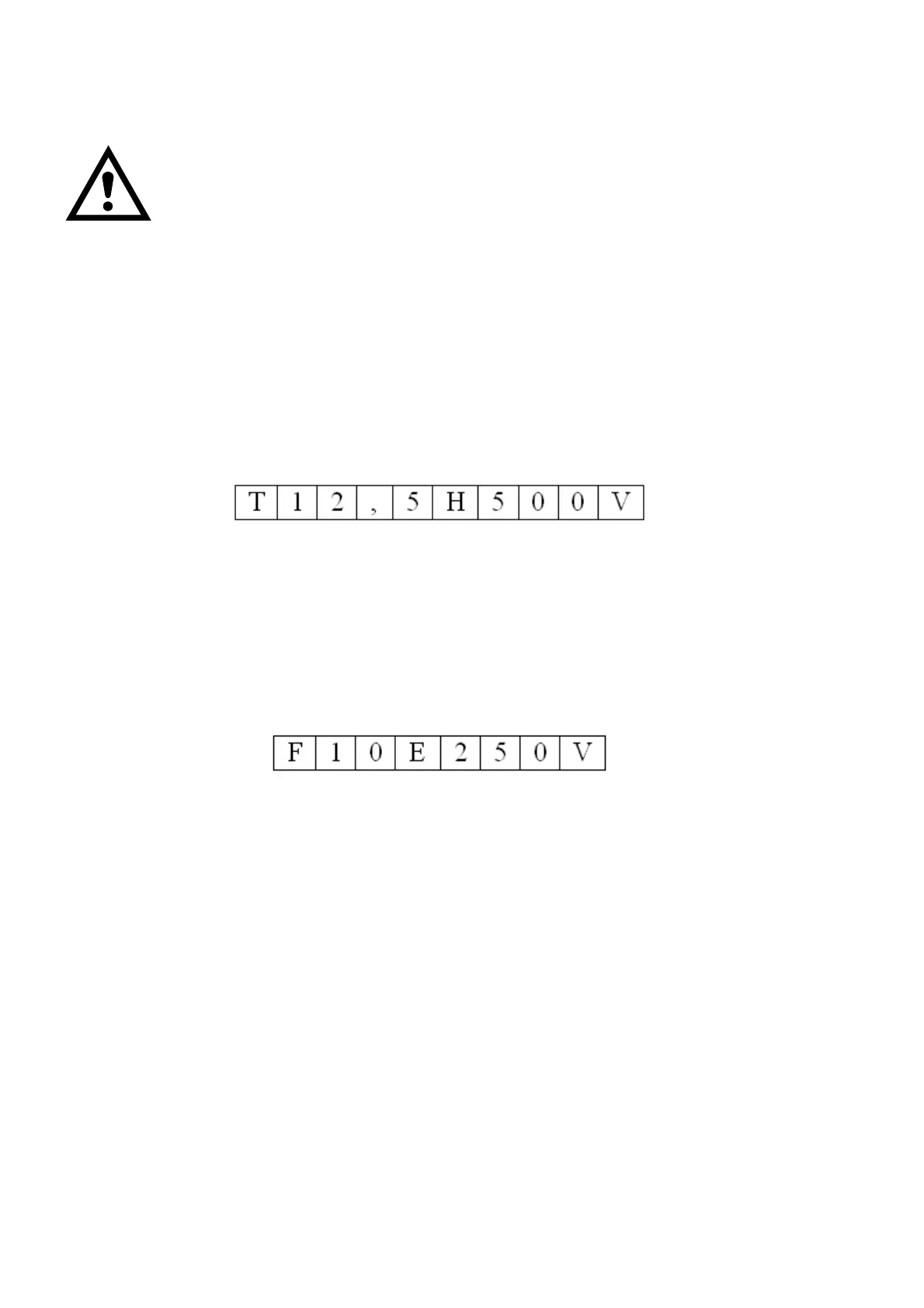

Main Power Fuses F1 and F2
If a fuse is blown, replace with the same type:
• Manufacture: SIBA Sicherungen-Bau GmbH; Lunen, Gemany
(Distributor: Farnell 117-5150) Art.Nr. 70 065 65 - 12.5A T
• Rated Current: 12.5A delay
• Rated breaking capacity: 1500A / 500V AC
Laser Power Supply Fuse, Label F3
If a fuse is blown replace with the same type
• Manufacture: Littelfuse (Distributor: Farnell 1453896) Art.No. 314-010.
• Rated Current 10A fast.
• Rated breaking capacity: 750A / 250V AC.
