Domino DPX3500

EPT076596 Issue 1 – March 2022
18
Pin configuration:
1: System OK output N/O
2: Start signal input GND
3: Filters 85% blocked output N/C
4: Filters 85% blocked COM
5: Start signal input 24VDC
6: System OK output COM

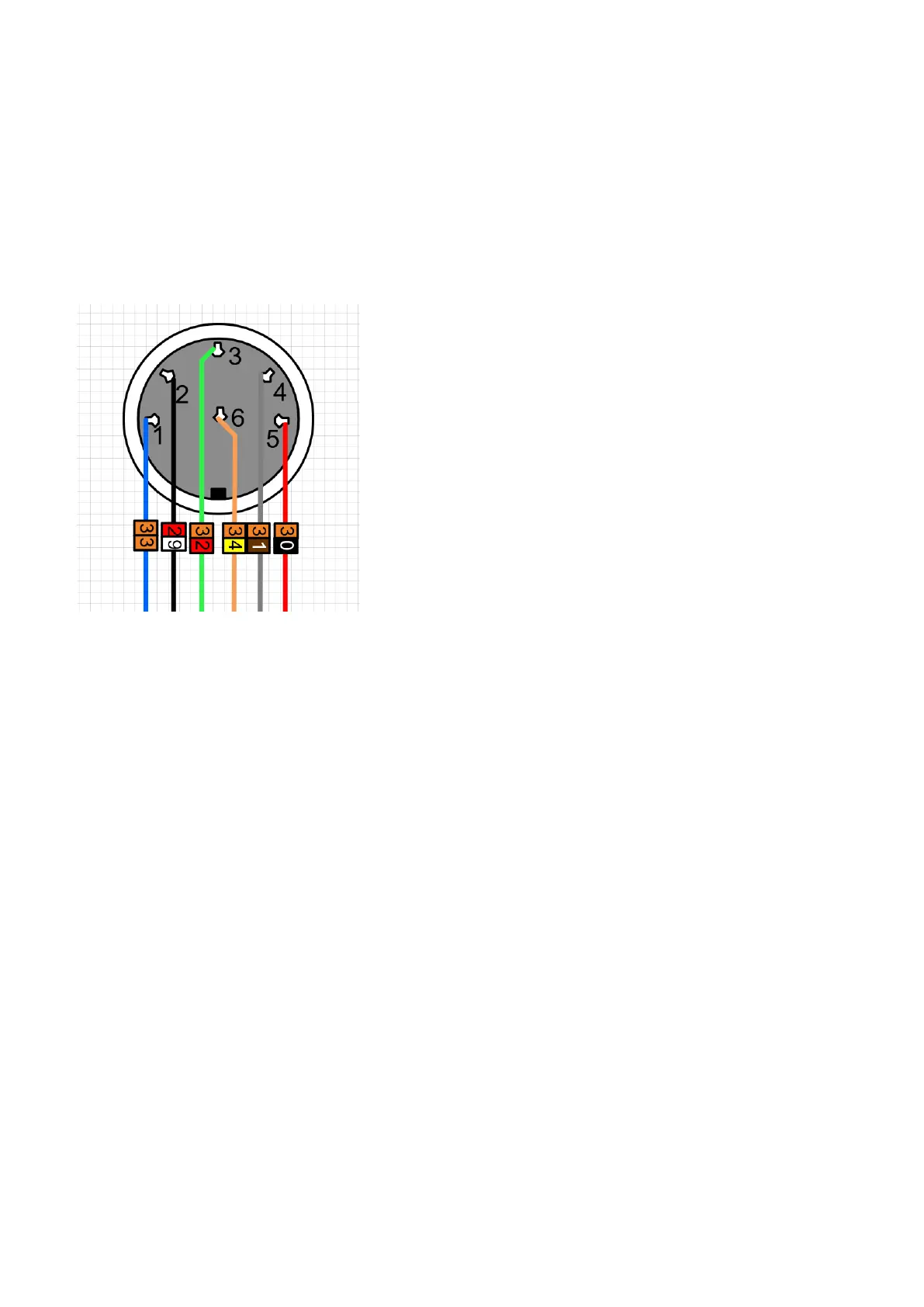

Internal connections of interface connection
