Installation
Connection to Power Supply
Please the specification in section 9.01 when
selecting the power supply outlet for the DPX3500 system,
ensure the power supply is suitable before connecting the
DPX3500 system.
Check the Integrity of the electrical power cable. If the
supply cord is damaged the extraction unit should not be
connected to the mains. The supply cord should only be
replaced by a Domino service engineer as an electrical
safety test may be required after replacement.
The DPX3500 system MUST be connected to a properly
earthed outlet.
The DPX3500 system is supplied with mandatory
interfacing please read section 4.02 before the power
connection is made as additional connections may be
required before power is connected to the extractor.
Connect the power cable to an isolated electrical supply.
The mains socket should be installed near the extractor it
should be easily accessible and able to be switched On or
Off. The cable run should be arranged so as not to create a
trip hazard.

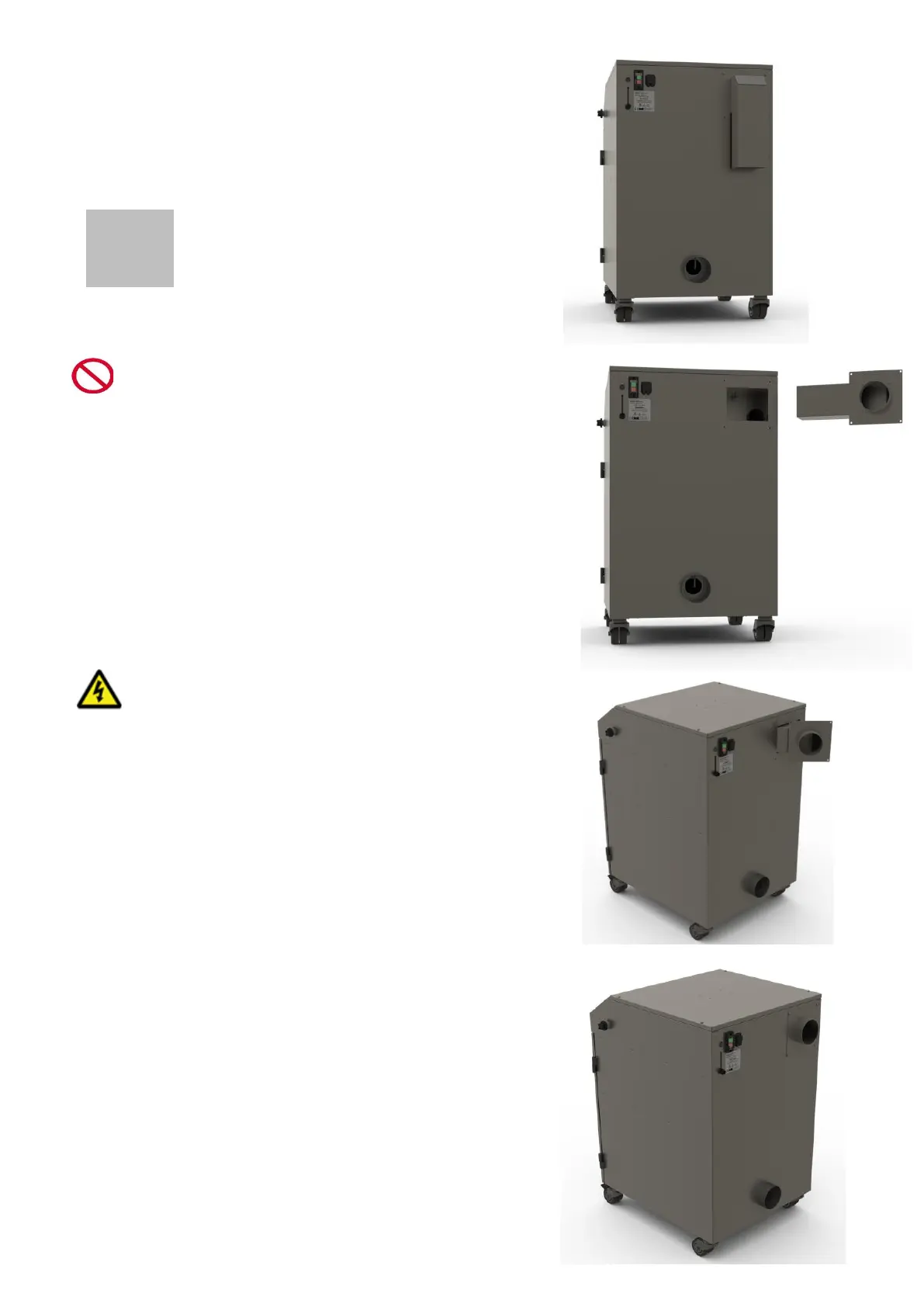

Changing the exhaust orientation
The exhaust has two orientations it can be used in “vent to
air” and “Exhaust box”. To change from one orientation to
another; the four M5 bolts need to be removed and then the
following sequence of images are followed:
