Operation
Filter blockage level indication

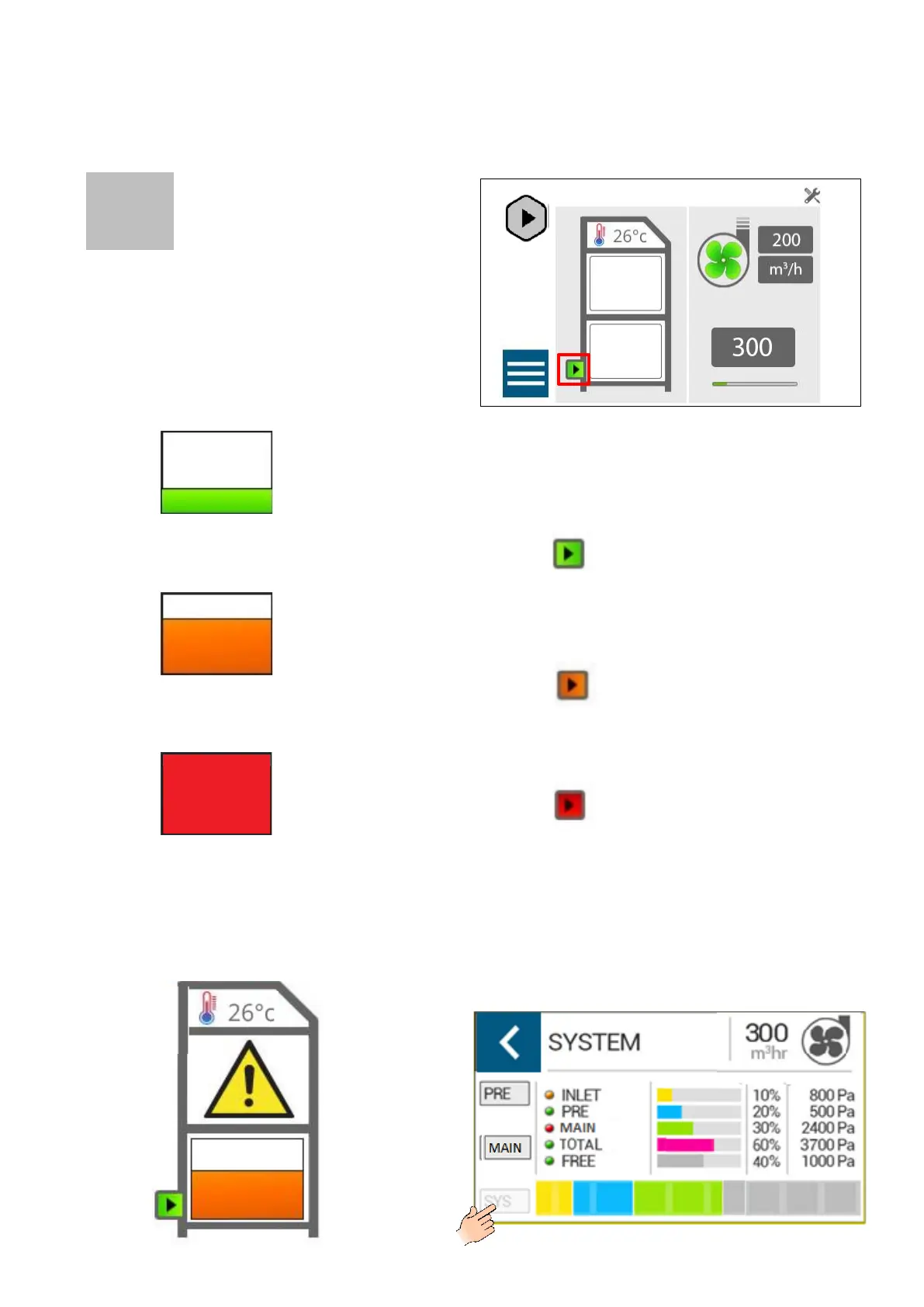

The filter icons will fill relative to their blocked value. The
filter icons colour will represent their health, refer to section
6-02 for replacement procedure:
1. GREEN: less than 85% blocked
2. AMBER: greater than 85% blocked
3. RED: fully blocked
Filter not installed correctly warning
The ‘Filter Status’ icon will be replaced by a warning triangle
icon to indicate that a missing filter has been detected:
*note this machine only has a sensor for the main filter.
Inlet Status
The Inlet icon will give visual feedback to the state of the
Inlet duct:
• GREEN: Ok
• AMBER: Warning: High vacuum on pipework
• RED: Fault: Blockage
If the amber warning or red fault light appear inspect the
hose kit and installation (refer to section 8.01 for
maintenance instructions). And reduce the restriction
causing the high vacuum or blockage.
When the above “inlet status” icon is pressed the system
information page as seen below is displayed.
