Domino Gx350i

To Next Page

To Previous Page

CONTROLLERS

Gx-IC7 Controller

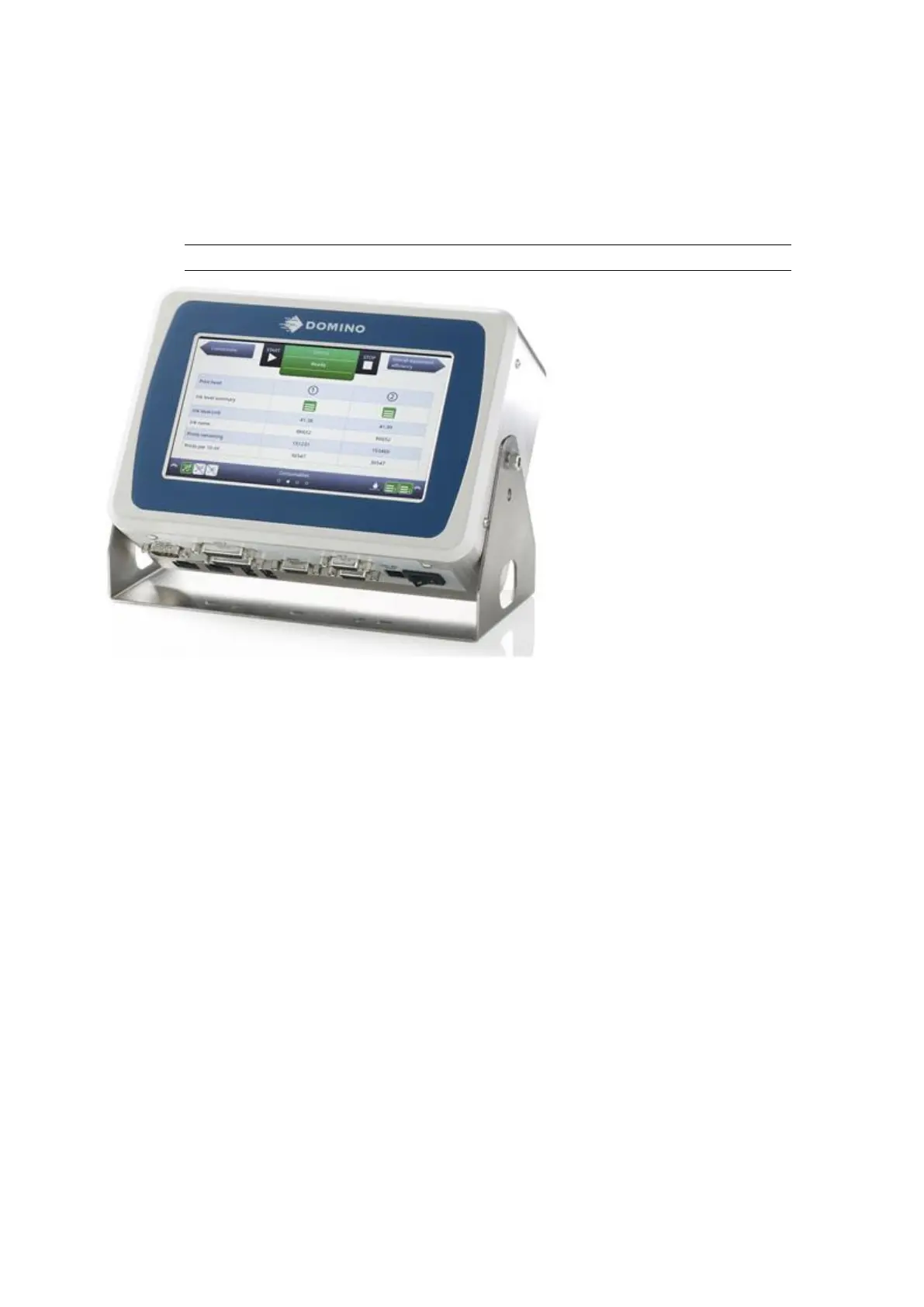

The Gx-IC7 Controller features a 7" touch screen. Setup, conﬁguration, and label creation/editing

are done directly on the controller (no external software required).

Note

The "Gx-IC7 Controller" conﬁgured with Gx150i software is a Gx150i.

Gx-IC7 Controller

SYSTEM DESCRIPTION

11 EPT053091 - Issue 5 - 07 May 2021
