Domino R-Series User Manual

12 EPT062879 Issue 3 January 2021

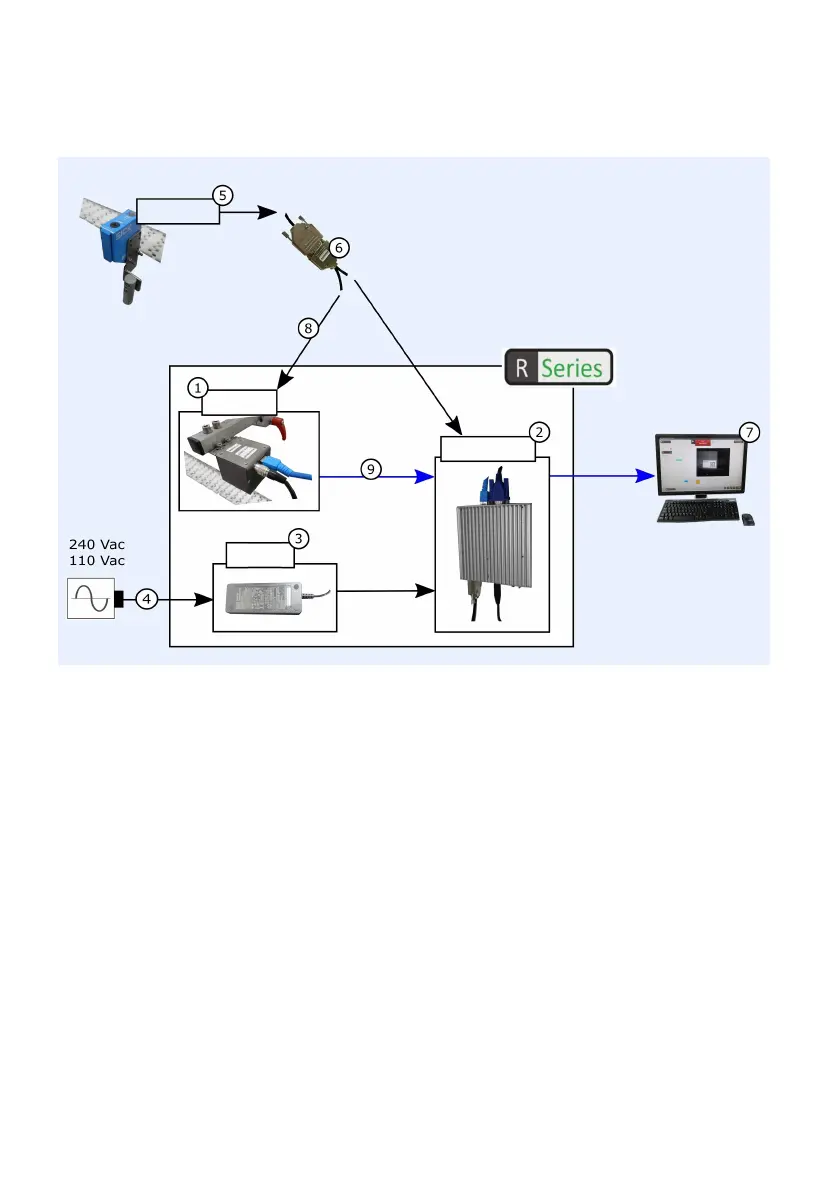

Connection Schematic
Supplied:
• (1) Inspection System
• (2) Controller
• (3) Power supply unit (PSU)
• (8) Inspection system trigger cable
• (9) Inspection system Ethernet cable.
Not Supplied:
•(4) IEC Mains Lead
•(5) NPN Sensor
• (6) 15 way male D-Sub. Use EPT009919
• (7) Touch monitor and mouse.
Note: The system will only work with NPN sensors. Refer to the Engineer's reference
document for PNP sensor configuration details if required.
Inspection
System
Sensor
Controller
PSU
DATA
24Vdc
VGA
