Preparing the R-Series Vision System
(1) Apply power to the power socket on the R-Series controller using the 24V power
supply provided.
• The LED indicators on the Ethernet connections will start to flash.
• After a boot up phase (up to 1 minute approximately) the user interface will be
displayed on the monitor. The Domino Vision software application will auto-
start and the User Login panel will become available.
Should the application not Auto start:
(2) Select from the desktop, the R-Series icon, and double click it
Note: If the unit does NOT start after 5 minutes then remove power wait 1 minute and then
re-apply power then repeat the above steps.

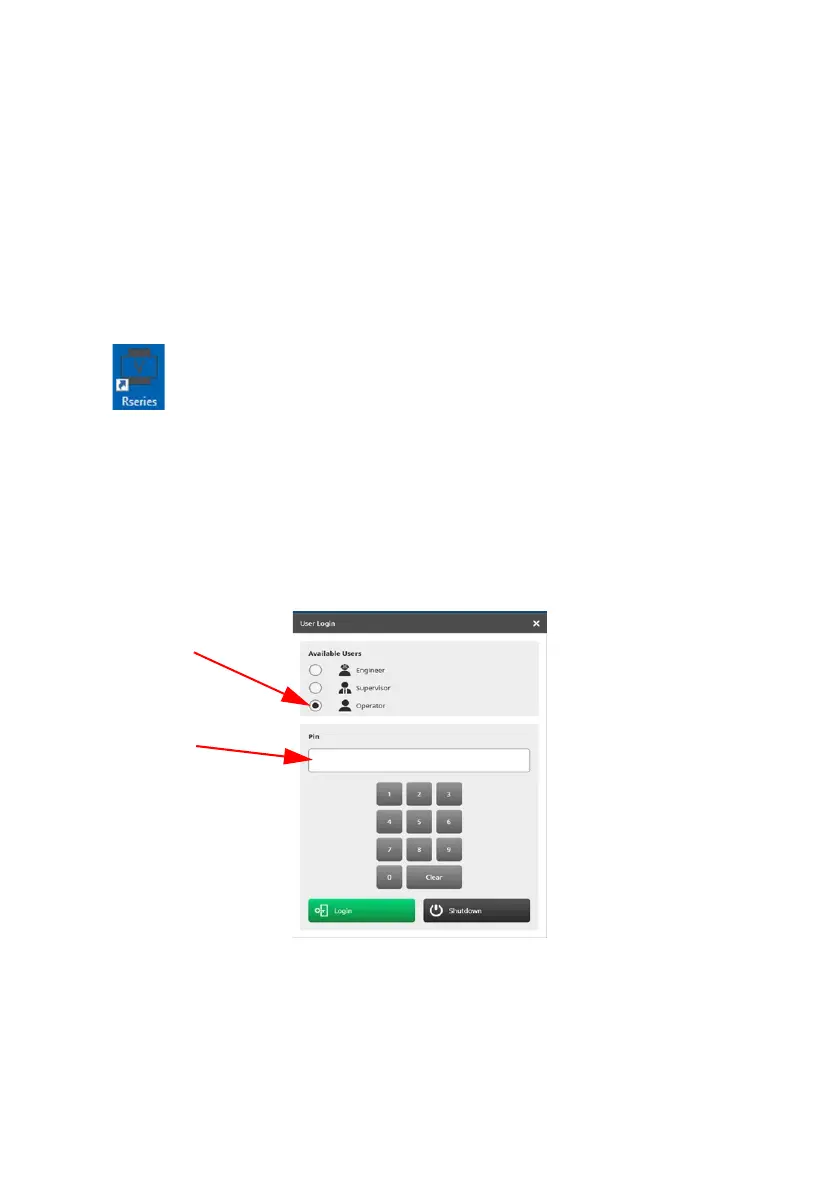

User Login
(1) Select Operator, and enter your PIN. (Default is 1234), Select Login.
(2) The Mode Select screen will be displayed.
