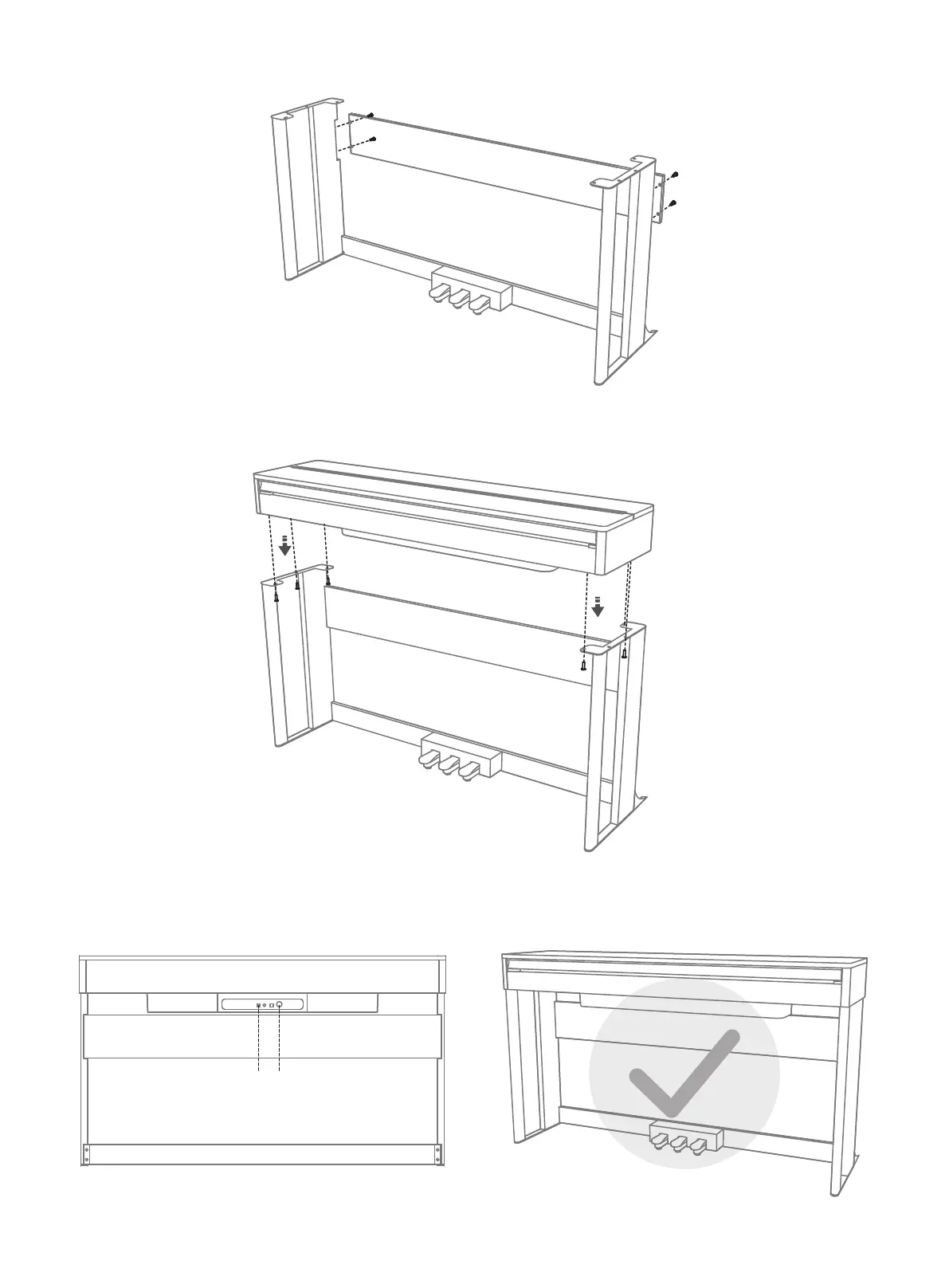

B. Use screws (M6x30) to fix the back plate onto the body leg which is finished in step (A).
C. Place the body on the installation step (B), and use the screws (M6x30) to lock the body from the bottom of
the body to the holes.
D. After basic assembly, insert pedal cord into the bottom socket of the body and power cord to the back
corresponding holes and power it on, then you can switch on the piano.
Pedal SocketPower
02
