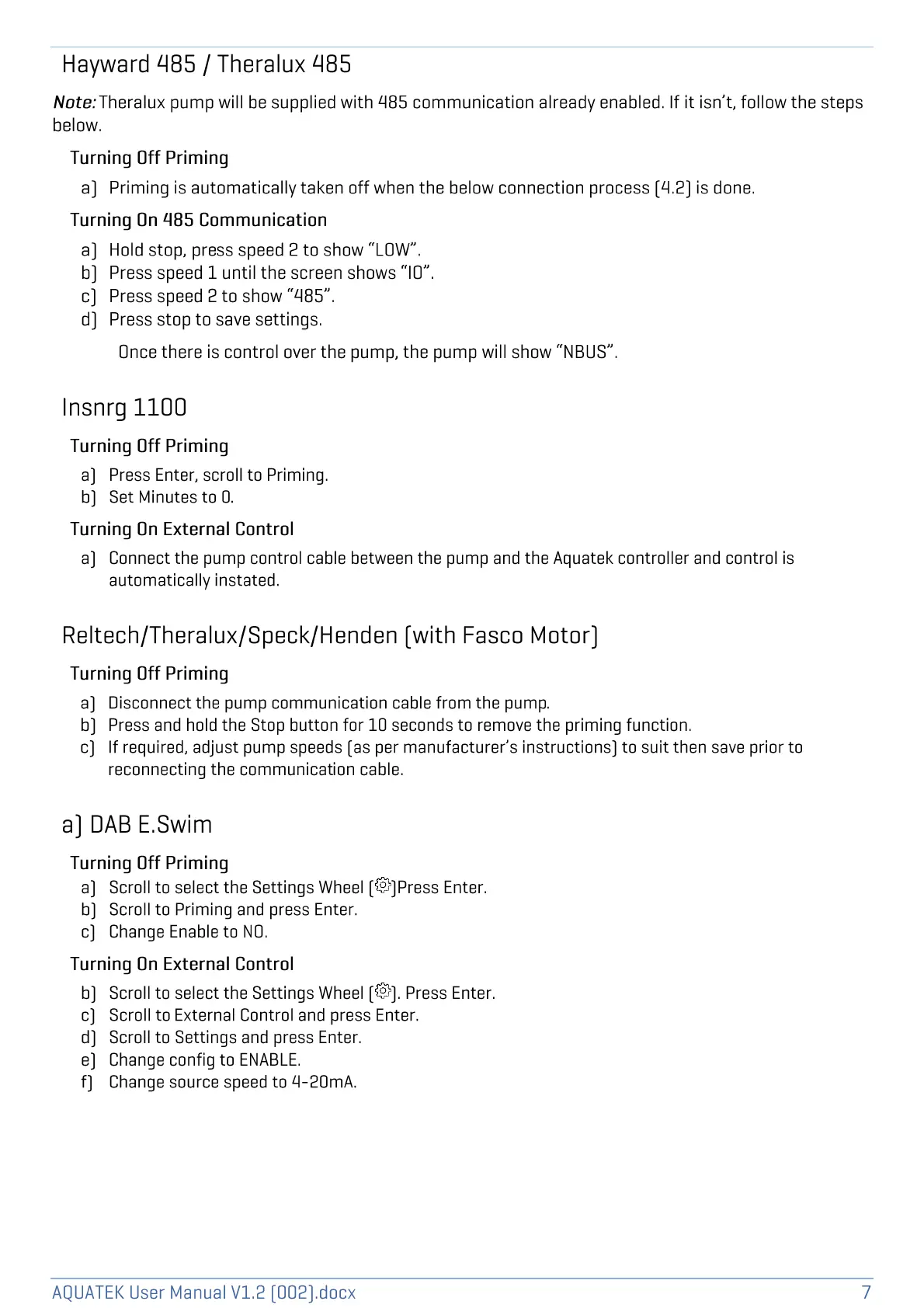

Hayward
/
Theralux
Note:
Theralux
pump
will
be
supplied
with
485
communication
already
enabled.
If
it
isn't,
follow
the
steps
below.
Turning
Off
Priming
a]
Priming
is
automatically
taken
off
when the below connection
process
[4.2]
is done.
Turning
On
485
Communication
a]
Hold
stop,
press
speed
2
to
show
"LOW".
b]
Press
speed
1
until the
screen
shows
"10".
c]
Press
speed
2
to
show
"485".
d]
Press
stop
to
save
settings.
Once
there is control
over
the
pump,
the
pump
will
show
"NBUS".
Insnrg
1100
Turning
Off
Priming
a]
Press
Enter,
scroll
to
Priming.
b]
Set
Minutes
to
0.
Turning
On
External
Control
a]
Connect
the
pump
control
cable between the
pump
and the
Aquatek
controller
and
control
is
automatically
instated.
Reltech/Theralux/Speck/Henden
[with
Fasco
Motor]
Turning
Off
Priming
a]
Disconnect the
pump
communication cable
from
the
pump.
b]
Press
and hold the
Stop
button
for
10
seconds
to
remove
the
priming
function.
c]
If
required,
adjust
pump
speeds
[as
per
manufacturer's
instructions]
to
suit then
save
prior
to
reconnecting
the communication cable.
a]
DAB
E.Swim
Turning
Off
Priming
a]
Scroll
to
select
the
Settings
Wheel
[®]Press
Enter.
b]
Scroll
to
Priming
and
press
Enter.
c]
Change
Enable
to
NO.
Turning
On
External
Control
b]
Scroll
to
select
the
Settings
Wheel
[®],
Press Enter.
c]
Scroll
to
External
Control
and
press
Enter.
d]
Scroll
to
Settings
and
press
Enter.
e]
Change config
to
ENABLE.
f]
Change
source
speed
to
4-20mA.
