GENERAL INFORMATION
Control units of PE200B, PE500B, PE700B series are designed to operate high-speed PVC doors of SPEEDROLL/SPEED-
FOLD series. Carefully read through the present instructions prior to connecting and setting the control unit.
1. GENERAL INFORMATION
Use the control unit only for its intended purpose, any
other use is prohibited.
The manufacturer assumes no liability for damage or
injury to persons or property which occur as a result of
failure to observe safety rules specified herein or incor
-
rect use of the control panel
.
Only trained personnel should install, operate or service
this equipment
.
Correct operation of the control unit can only be guar-
anteed if the supply voltage complies with the specified
in the instructions.
Prior to control unit installation verify that high-speed
door and its safety devices are in working order.
Prior to first actuation of the control unit, make sure
that all electrical connections are securely fastened and
insulated, safety devices are installed and ready for use
.
2. DESIGN
WARNING!
Carefully follow all the instructions specified herein. Failure to do so could cause equipment damage and/or personal
injury!

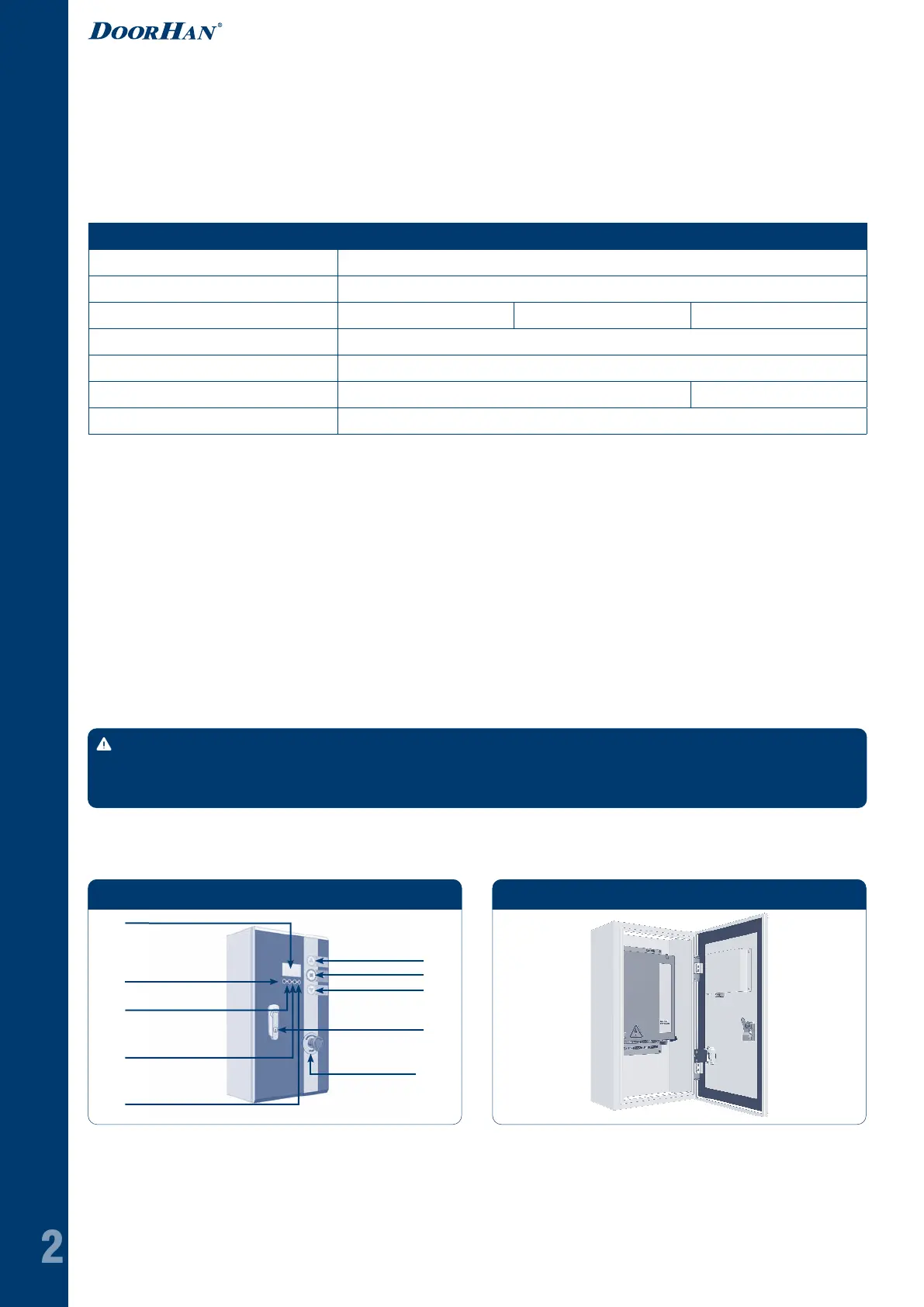

Fig. 1. Closed view Fig. 2. Open view
1
2
3
4
5
6
7
8
9
10
1. Menu screen (LCD display)
2. INFO display button
3. ERROR display button
4. SETTINGS display button
5. MODE display button
6. Door OPEN button
7. STOP button
8. Door CLOSE button
9. Lock
10. Emergency stop button
1.1. SAFETY RULES
Table 1. Specifications
Parameters PE200B PE500B PE700B
Supply voltage 220 / 240 V
Power supply current frequency 50 / 60 Hz
Power consumption 0,75 kW 1,5 kW 2,2 kW
Control voltage 24 V
Opearting temperature -10…+50 °С
Overall dimensions (W × H × D) 250 × 450 × 140 mm 250 × 490 × 140 mm
Protection class IP 54
