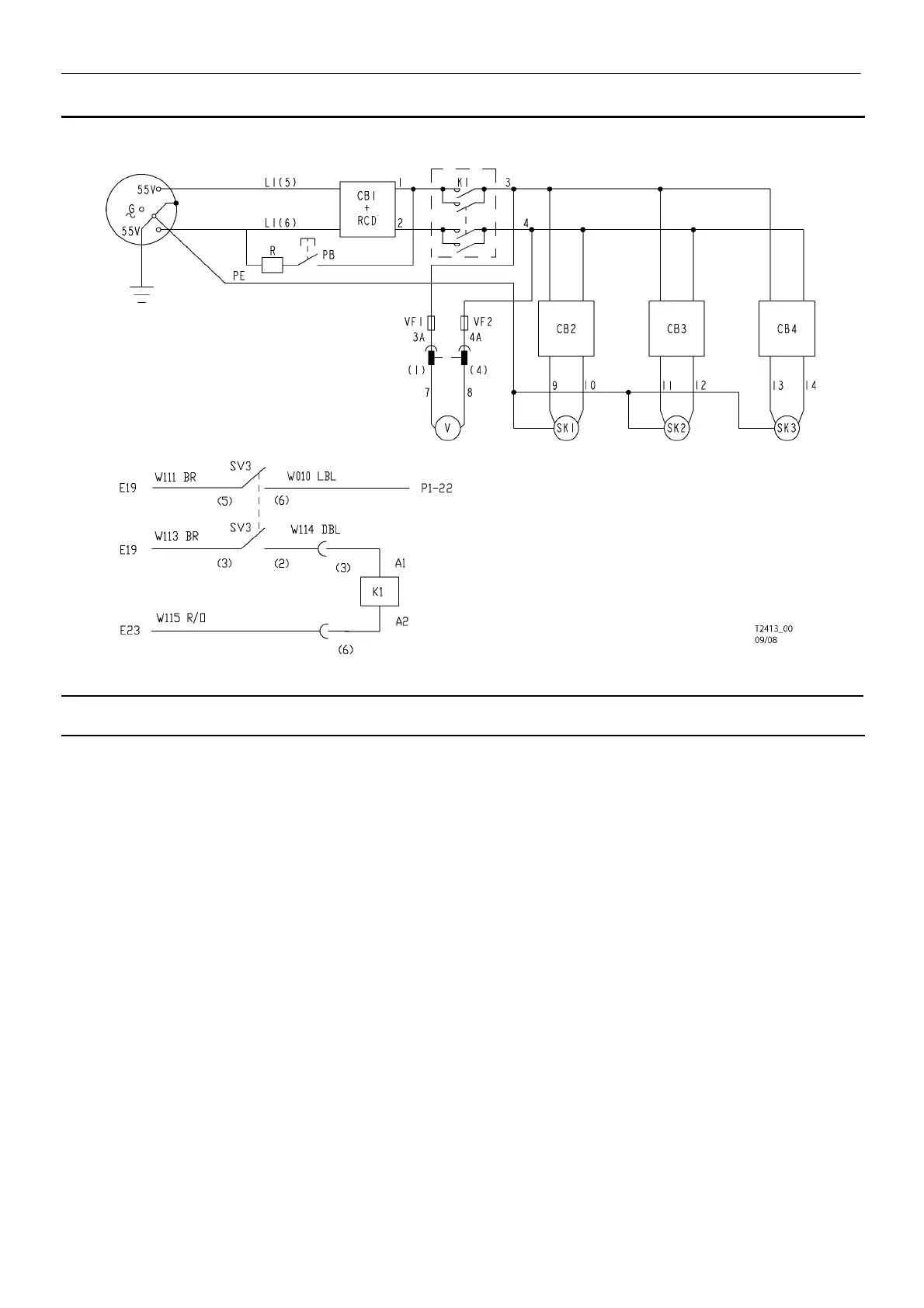

A.C. Electrical Power Schematic Diagram. 115V 1 -- p h ase.
KEY
CB1 Circuit breaker
63A
CB2 Circuit breaker
32A
CB3 Circuit breaker
16A
CB4 Circuit breaker
16A
G Alternator
K1 Contactor
PB Pushbutton
PE Protective earth conductor
R Resistor
SK1 Socket outlet 32A
SK2 Socket outlet 16A
SK3 Socket outlet 16A
SV3 Switch, generator
V Voltmeter
VF1 Fuse
Voltmeter
VF2 Fuse
Voltmeter
