EXTERNAL VIEWS
7/72

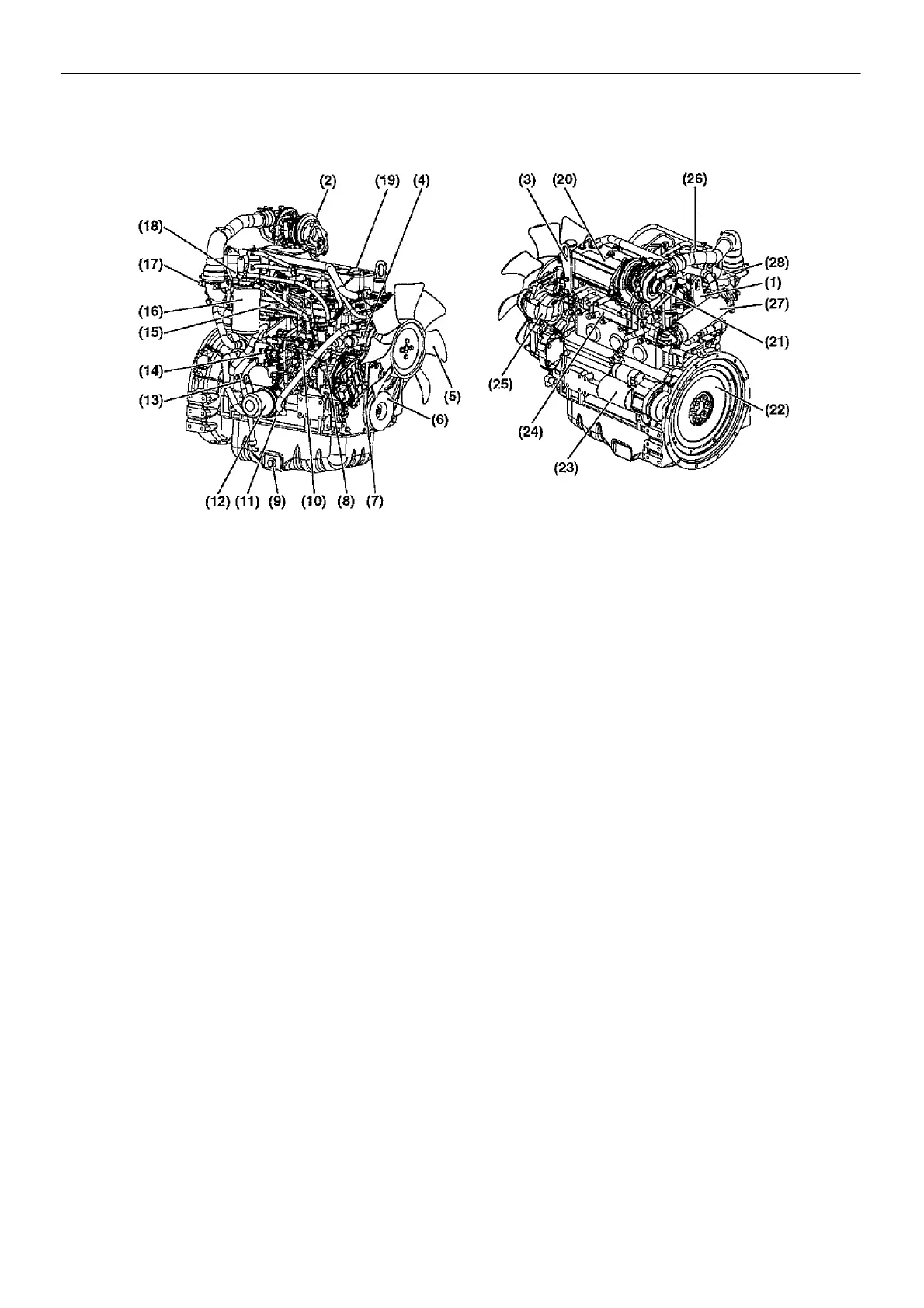

DIESEL ENGINE Engine External View
1. Lifting eye (Flywheel end)
2. Turbocharger
3. Lifting eye (Engine cooling fan end)
4. Engine coolant pump
5. Cooling fan
6. Crank shaft V--pulley
7. V--belt
8. Filler port (engine oil)
9. Drain plug (engine oil)
10.Fuel injection pump
11. Engine oil cooler
12.Engine oil filter
13.Dipstick (engine oil)
14.Eco--governor
15.Intake manifold
16.Fuel filter
17.Fuel oil inlet
18.Fuel return to fuel tank
19.Filler port (Engine oil)
20.Rocker arm cover
21.Air intake port (From air cleaner)
22.Flywheel
23.Starter motor
24.Exhaust manifold
25.Alternator
26.EGR valve
27.EGR cooler
28.EGR pipe
