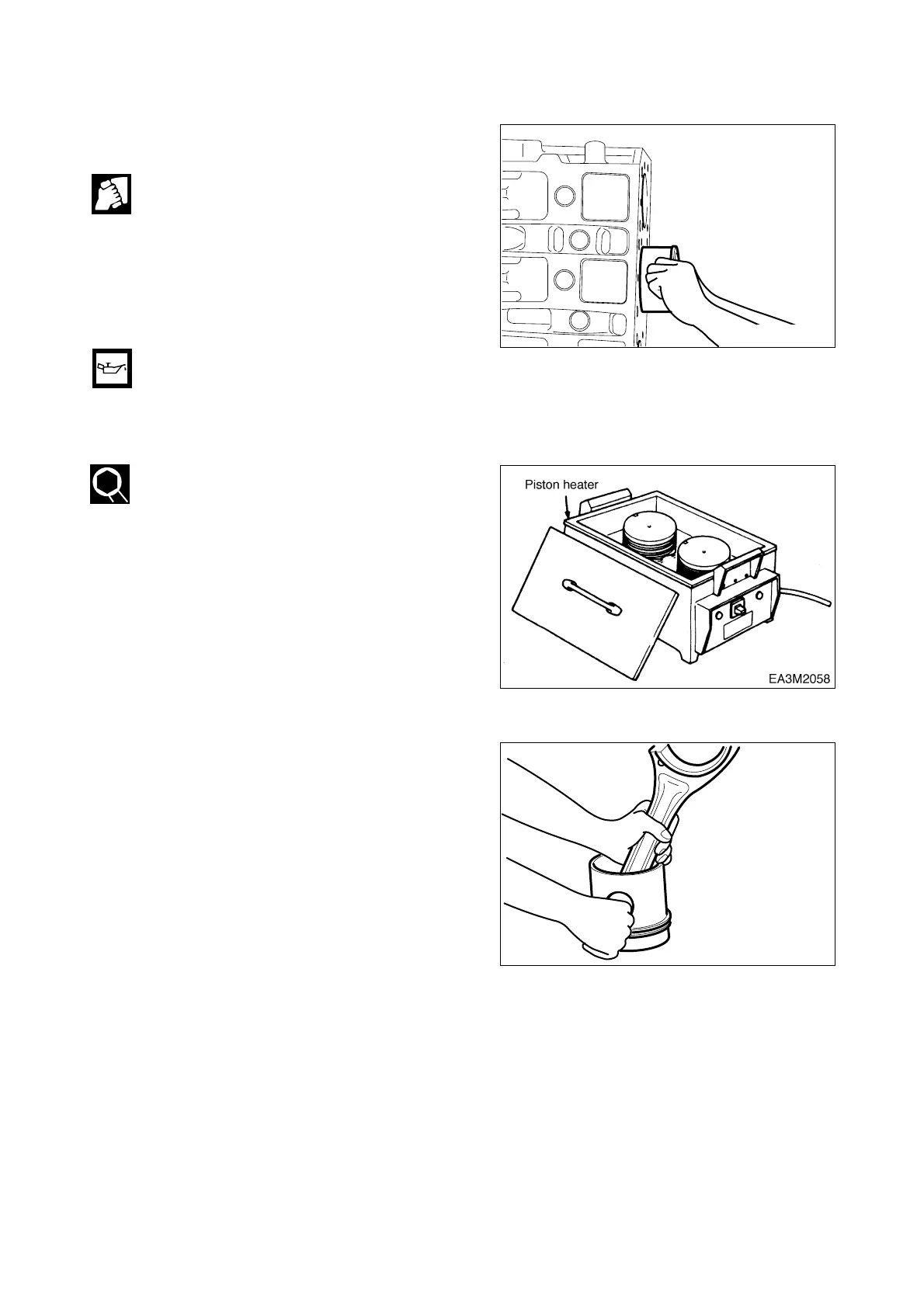

9.3.11. Cylinder liner
•
Stand the cylinder block so that the fly-
wheel faces downward.
•
Thoroughly clean the liner flange fitting
surface and bore inside with compressed
air to prevent the entry of foreign sub-
stances.
•
After the cleaning operation, make the
cylinder liner dried up and push it into the
cylinder block by hand.
•
Wet the liner inside diameter with
engine oil.
9.3.12. Piston and connecting rod
•
Use a piston heater to heat the piston
approximately 100
˚C
(212
˚F
) for 5 minutes.
•
Align the piston pin hole with the oiled
connecting rod small end and press the
piston pin (by lightly tapping with a rub-
ber hammer) to assemble the
connecting rod with the piston.
- 103 -
