10.3.3. Governor system (P086TI Only)
Governor system for fuel injection pump consists of "Integral Actuator" and " Speed Control Unit".
1) Integral Actuator
- 138 -

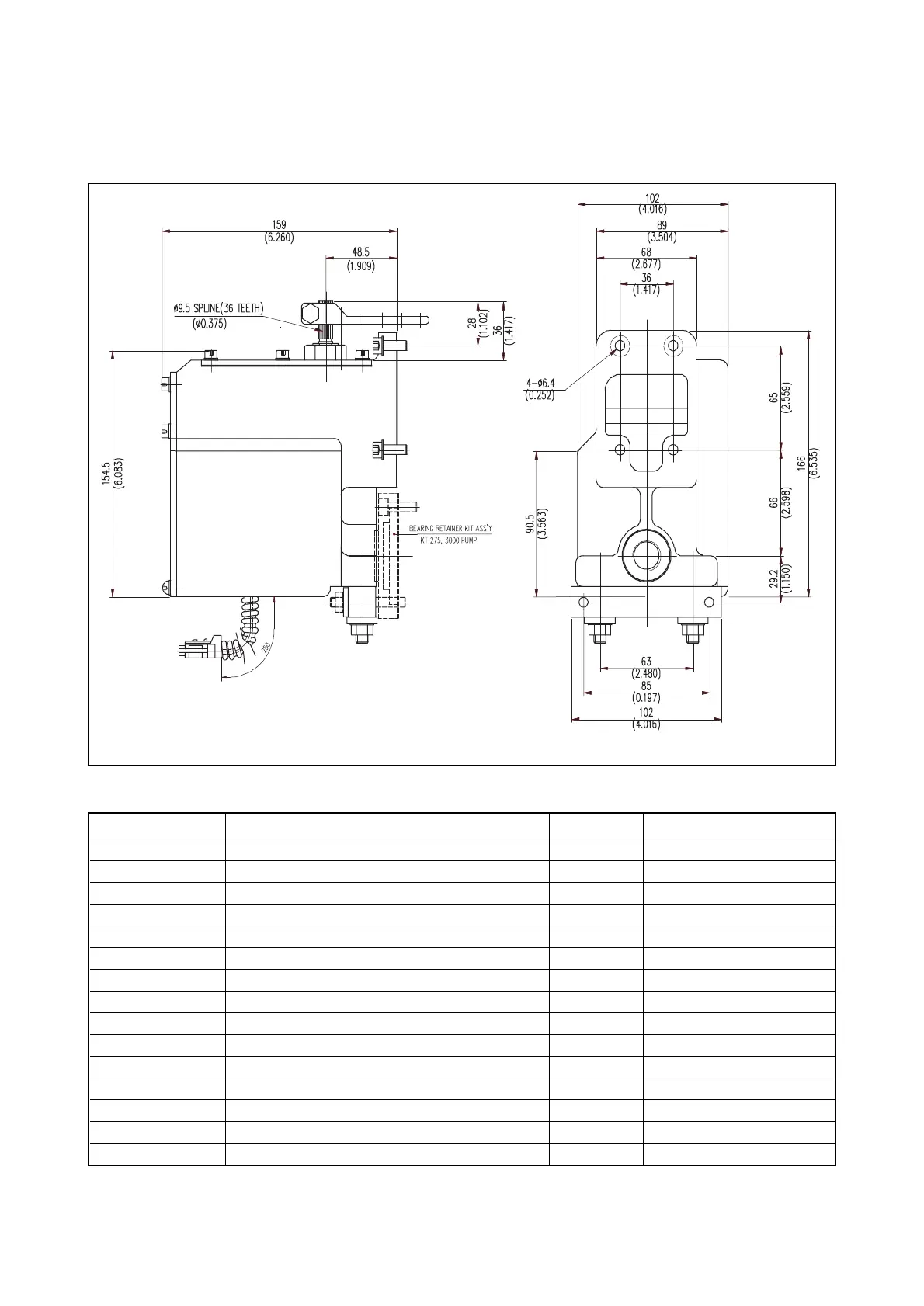

<Dimension View>
Fig. No. Description Q’ty Remark
1 Frame 1
2 Bearing retainer kit Ass’y 1
3 Mounting bar 1
8 SWP connector 1 Mg610320
11 Front cover 1 T3.2
13 Shaft 1
15 Return spring guide Ass’y 1
16 Oil seal 1 SC 0283 E0
17 Allen screw 8 M5 x 0.8 x L12
23 Manual stop device Ass’y 1
30 Stop plate 1 T3.2
52 Return shaft Ass’y 1
54 Stop level 1
62 Lead wire LG 16AWG
63 Corrugate tube Dia.10, L250+-10
