Fuses, Bulbs & Circuit Breaker -
Change, Reset
Fuses
NOTE: If a fuse filament separates, use only the same
type and size fuses for replacement. If the
filament in a new fuse separates, have the
circuits and instruments checked.
NOTICE
Always replace fuses with ones of the correct
ampere rating.
Remove the front cover from the fuse box. The fuses
are located under the air cleaner.
Fuse - Protects an electrical circuit from an
overload. Opens (filament separates) if an
overload occurs.

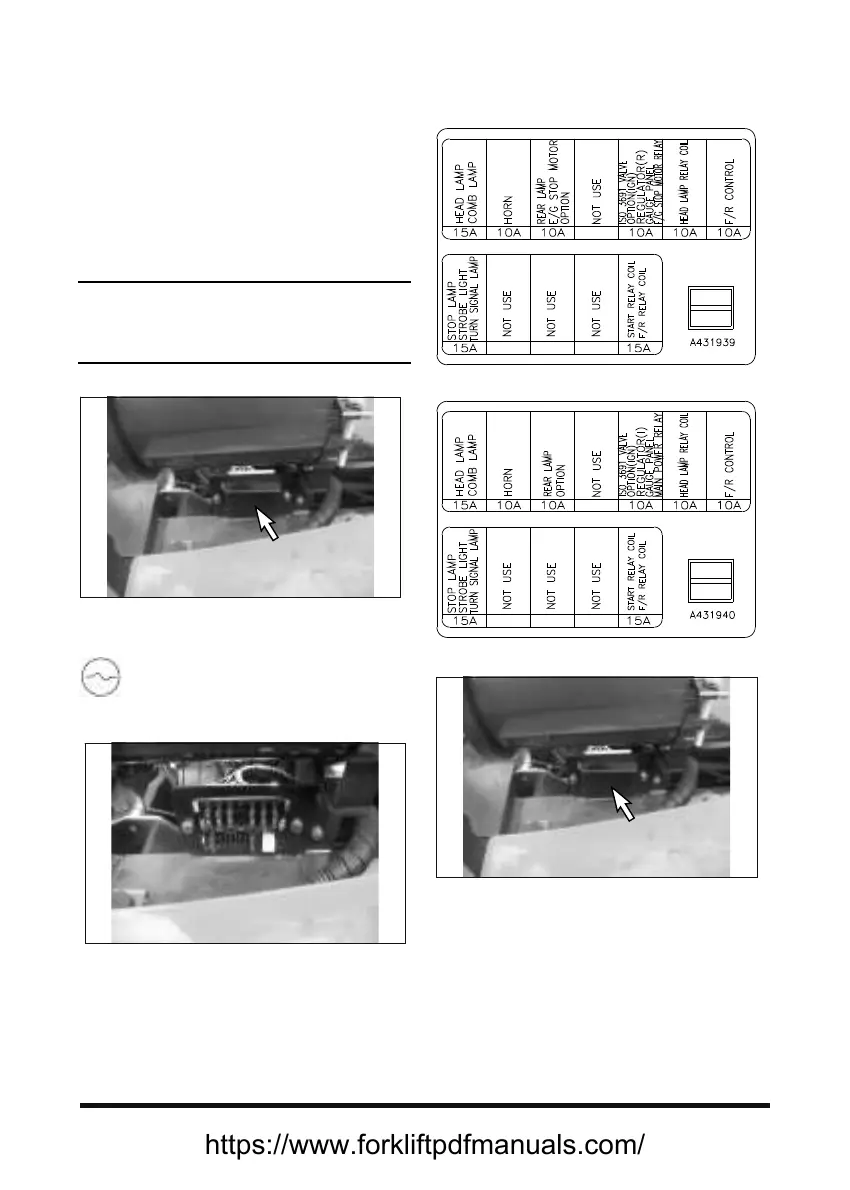

Fuse Box (Open)
Typical Example
Diesel
Gas
Fuse Box (Close)
Typical Example
Fuses are identified as follows :
1. Horn - 10 A
2. Head Lamp ,Clearance Lamp, Tail Lamp - 15 A
3. Lamp Relay Coil, Fwd/Rev. Solenoid, Rear Lamp
Relay & Back-up Lamp/Alarm - 15 A
4. Instrument Panel, Hour Meter, Preheat Controller,
Fuel Shut off Solenoid - 15 A
5. Stop Lamp, Turn Signal Lamp, Strobe Lamp - 15 A
6. Starter Relay - 10 A
