Maintenance Section
-158-
6. Remove the pin (3) and the cotter pin (4). Tighten
the nut (6) to compress the spring (7) further and
pull downward and turn the clevis (5) until the pin
(3) fits into the brake lever when the lever (1) is
held against the stop pin (2). Then install the pin
(3) and the cotter pin (4) and return the nut (6) to
the clevis (5).
7. Loosen lock nut (5). Tighten screw (6) to 6 to 7
N•m (50 to 60 lb•in). Loosen the screw (6) 1 1/6
turns and tighten the lock nut (5).
NOTICE
Turn the adjustment screw (6) clockwise to tighten.
Turning the screw (6) too far counterclockwise
could allow parts to fall into the bottom of the
transmission.
The transmission would than require disassembly
to remove the parts.
8. Reinstall the floor plate and floor mat.
9. Engage the parking brake, remove the tire chocks
and test the parking brake. Refer to ‘Parking
Brake Testing’ in the preceding section.

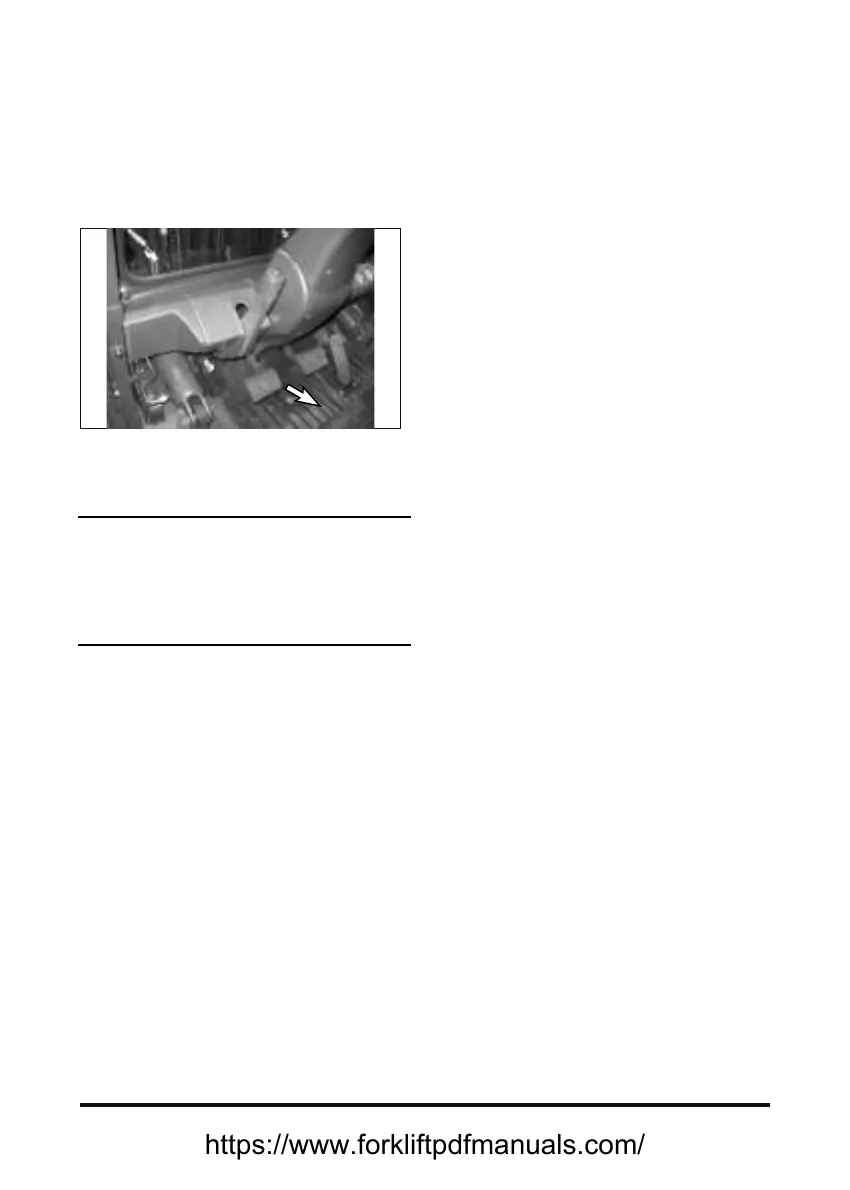

To Adjust
Park the lift truck level, with the forks lowered,
transmission in NEUTRAL, the engine stopped and the
wheels securely blocked.
1. Release the parking brake.
2. Turn the adjustment knob, clockwise to tighten the
brake.
3. Test the parking brake adjustment. Repeat the
adjustment procedure, if necessary.
