ENGINE DISASSEMBLY
- 38 -

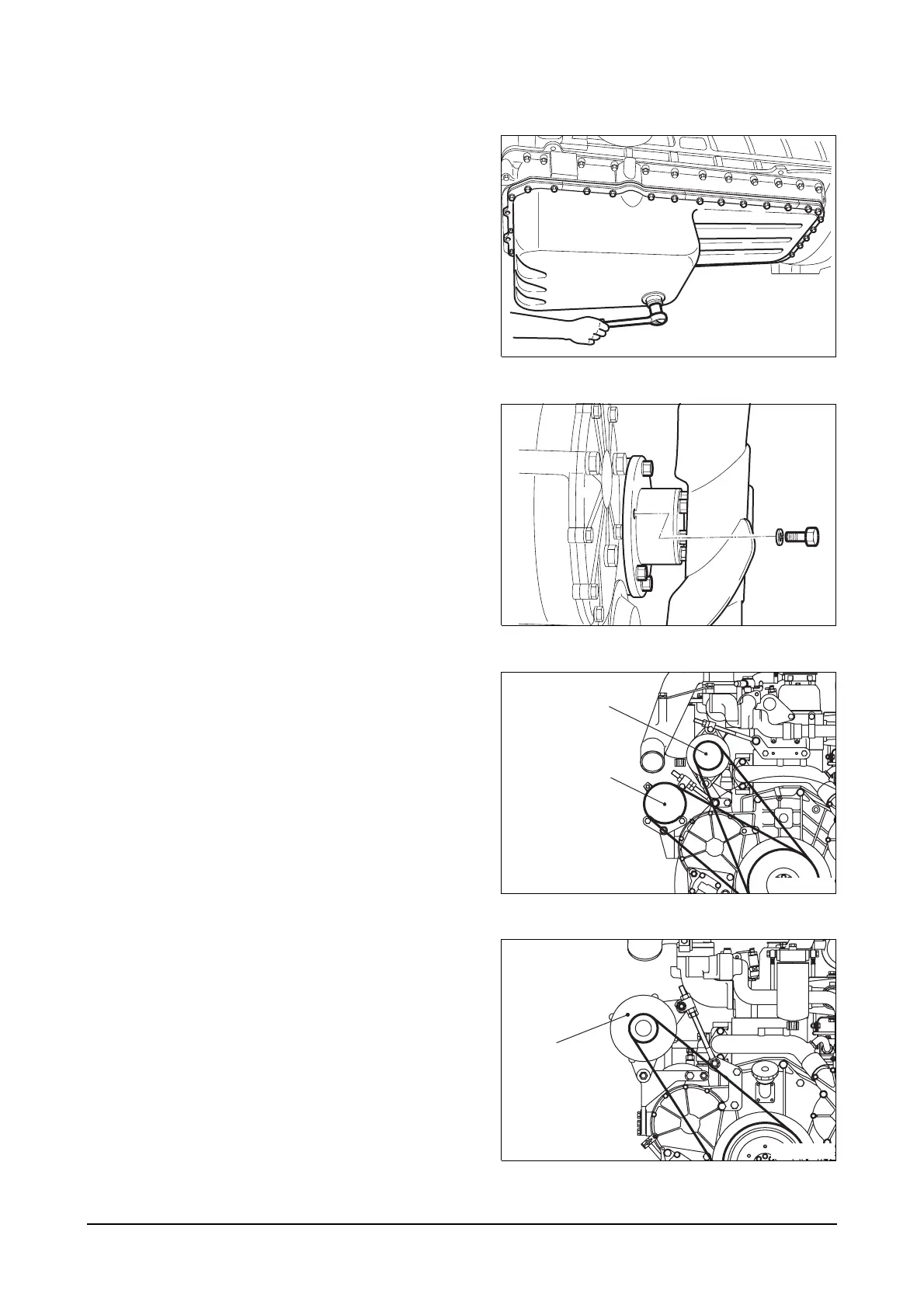

3.1.3. Engine oil
z
Take out the oil level gauge.
z
Remove the oil drain plug of oil pan and drain
out the engine oil into a prepared container.
z
Reassemble the drain plug with the oil pan after
draining out the engine oil.
3.1.4. Cooling fan
z
Remove the flange fixing bolts, then take off the
flange and cooling fan.
3.1.5. V-Belt
z
Loosen the tension adjusting nuts on the
alternator, and take off the alternator belts.
EQM3001I
EQM3004I
Alternator
Air con.
compressor
EQM8013I
Alternator
EQM8012I
