ENGINE DISASSEMBLY
- 39 -

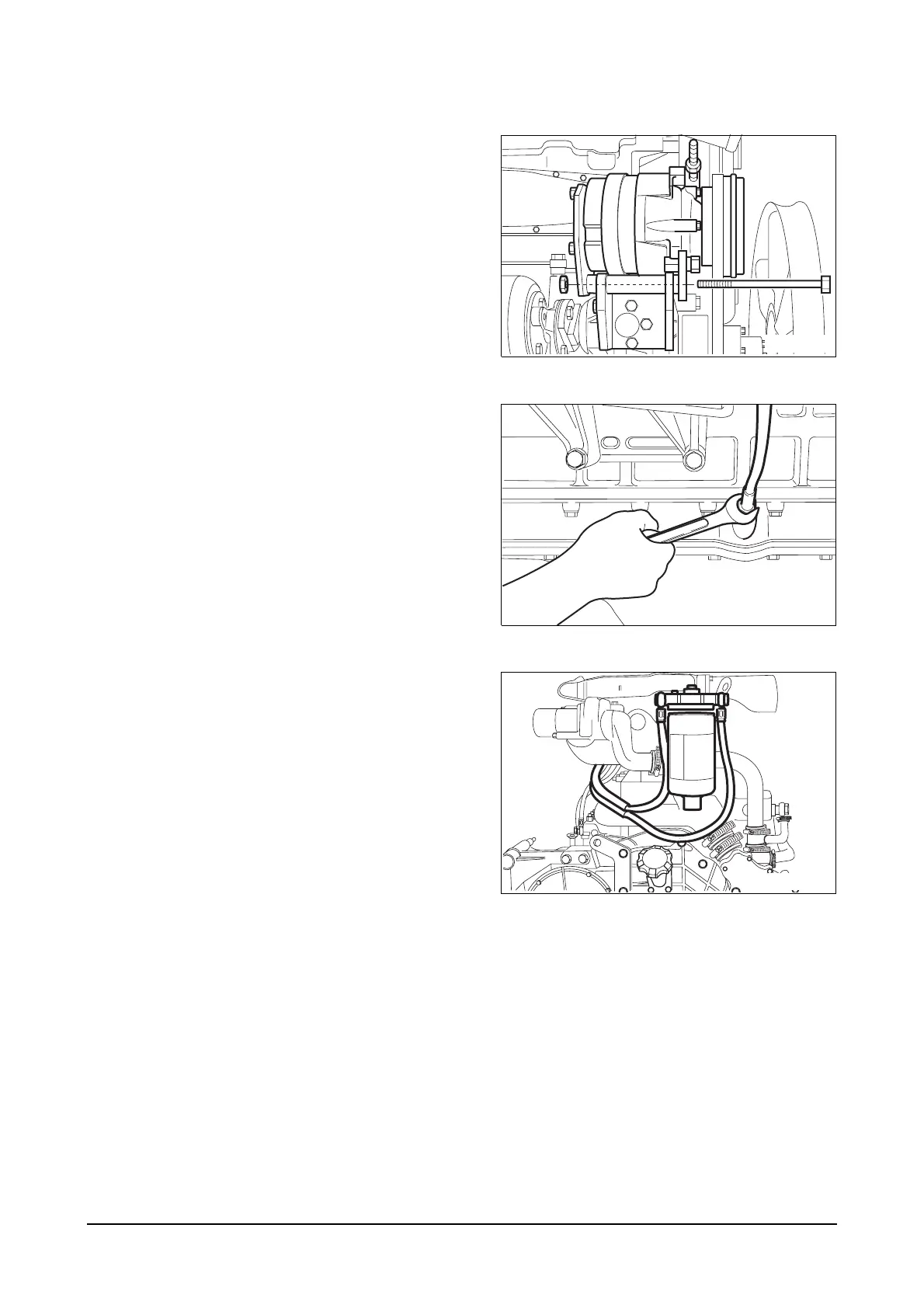

3.1.6. Air con. compressor
z
Remove the air con. compressor fixing bolts
and disassemble the air con. compressor.
z
Remove the tension adjusting bolt and bracket.
3.1.7. Oil level gauge guide tube
z
Loosen the flange nut installed on the ladder
frame to remove the guide tube.
3.1.8. Fuel filter
z
Remove fuel hoses connected to the fuel
injection pump, take off the bracket fixing bolts,
then disassemble the fuel filter.
3.1.9. Breather
z
Loosen the clamp screw to remove the rubber hose.
EQM3007I
EQM3005I
EQM3008I
