ENGINE DISASSEMBLY
- 43 -

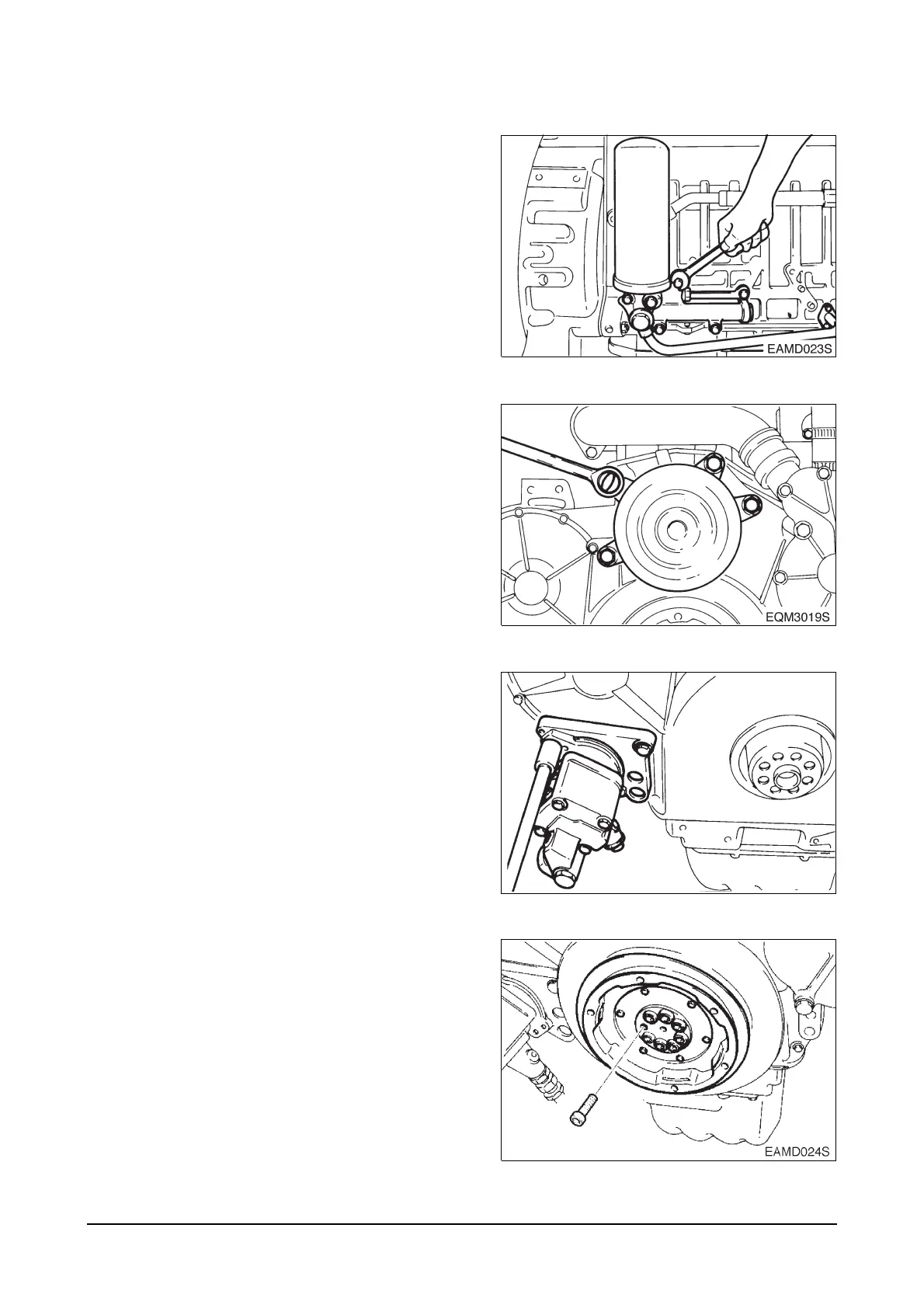

3.1.21. Oil filter
z
Using a filter remover wrench, remove the oil
filter cartridge.
z
Remove the pipe connected to the oil cooler.
z
Loosen the oil filter fixing bolts and disassemble
the oil filter head from the cylinder block.
3.1.22. Idle pulley
z
Remove the bolts and disassemble the fan
drive pulley.
3.1.23. Power steering pump
z
Remove the oil hoses.
z
Unscrew the hex bolts and remove the steering
pump.
3.1.24. Vibration damper
z
Unscrew the pulley fixing bolts and
disassemble the pulley-vibration damper
assembly.
z
Unscrew the vibration damper fixing bolts and
disassemble the damper from the pulley.
EQM3020S
