ENGINE DISASSEMBLY
- 71 -

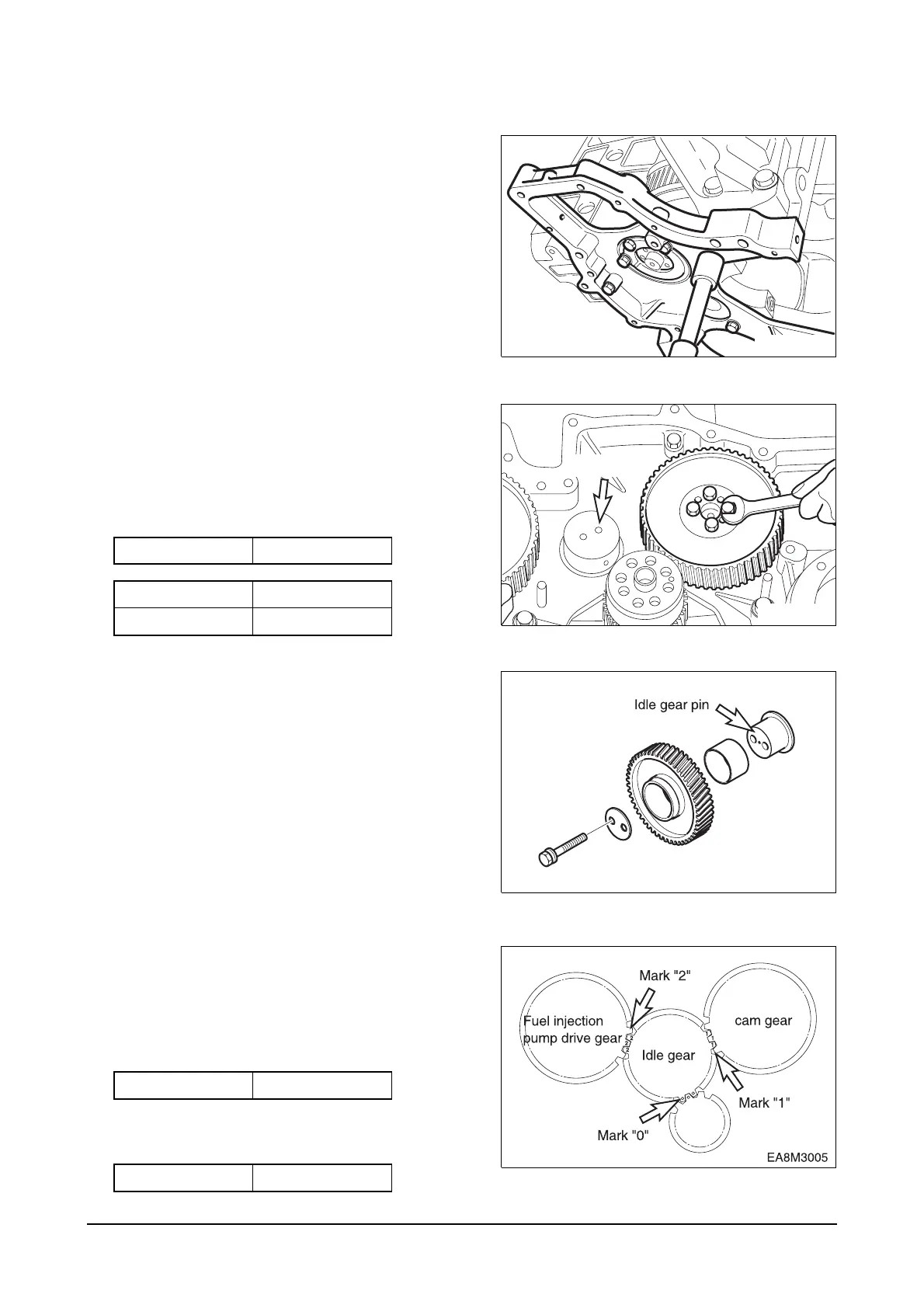

3.3.10. Timing gear case
z
Mount gasket using dowel pin on the cylinder
block.
z
Install the timing gear case by aligning the
dowel pin with the dowel pin hole on the timing
gear case.
3.3.11. Timing gear
z
Install the oil pump idle gear onto the No.7
bearing cap.
z
Install a thrust washer over the camshaft and
assemble the cam gear by aligning it with
camshaft key groove.
z
With the oil port on the idle gear pin facing the
cylinder block, install the idle gear pin.
z
Install the idle gear by coinciding the marks
impressed on the crank gear, cam gear, fuel
injection pump drive gear, and idle gear.
z
Install a thrust washer on the idle gear and
tighten to specified torque.
z
Check and adjust the amount of backlash
between gears using a feeler gauge.
EAMD082I
EAMD083I
Idle gear pin
Torque
3.8 kg
•
m
End play Limit
0.13 ~ 0.27 mm 0.30 mm
EA8M3004
Torque
7.4 kg
•
m
Backlash
0.15 ~ 0.25 mm
To Next Page
